ENGINE OVERHAUL GASKET KIT

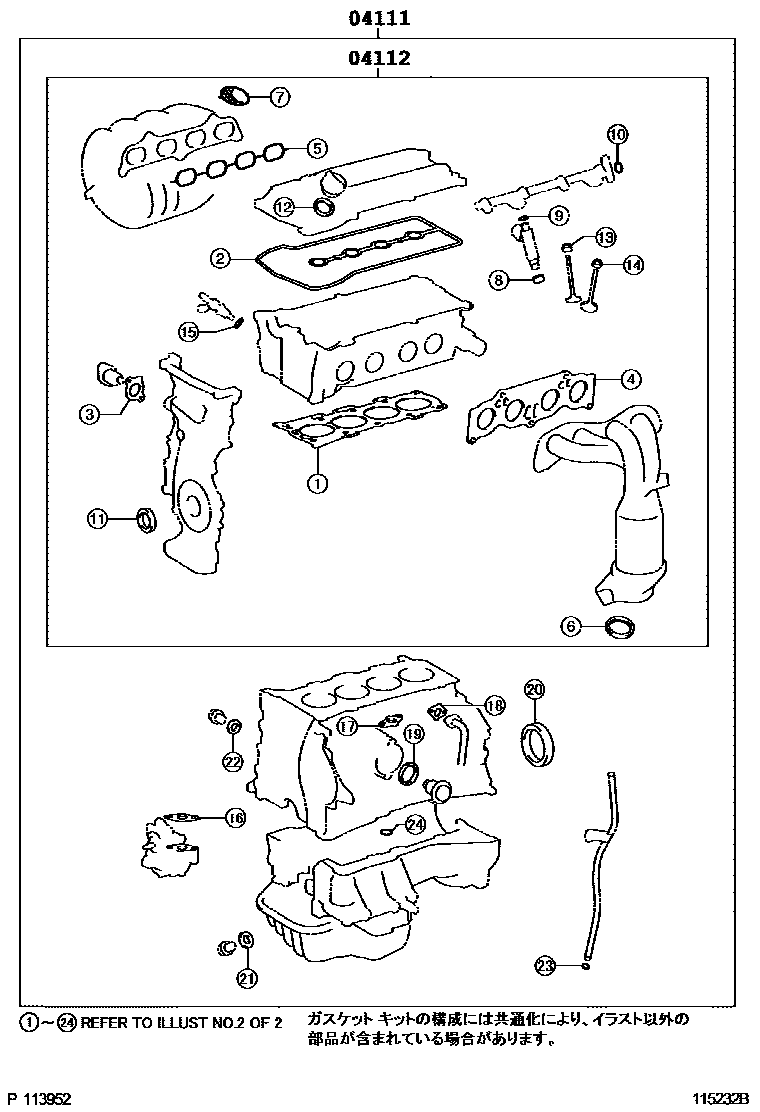

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-28766i201605
main04111-31440i200601-200805
main04111-31441i200805-200811
main04111-31442i200811-200812
main04111-31443i201108-201112
main04111-31444i201112-201204
main04111-31862i201204-201503
main04111-31863i201503-201605
main04111-0H270supersedes 04111-28770i200601-200710
main04111-28990supersedes 04111-28770i200710-200812
main04111-28991supersedes 04111-28764i200904-201204
main04111-28992supersedes 04111-28764i201204-201207
main04111-28993supersedes 04111-28764i201207-201208
main04111-28994supersedes 04111-28765i201208-201409
main04111-28995supersedes 04111-28766i201409-201605
04112GASKET KIT, ENGINE VALVE GRIND
main04112-28636i201605
main04112-31270i200601-200805
main04112-31271i200805-200811
main04112-31272i200811-200812
main04112-31273i201108-201112
main04112-31274i201112-201204
main04112-31542i201204-201605
main04112-0H250supersedes 04112-28631i200601-200710
main04112-28631i200710-200812
main04112-28632supersedes 04112-28634i200904-201204
main04112-28633supersedes 04112-28634i201204-201207
main04112-28634i201207-201208
main04112-28635i201208-201409

2 parts on this diagram · 10 diagrams in section
