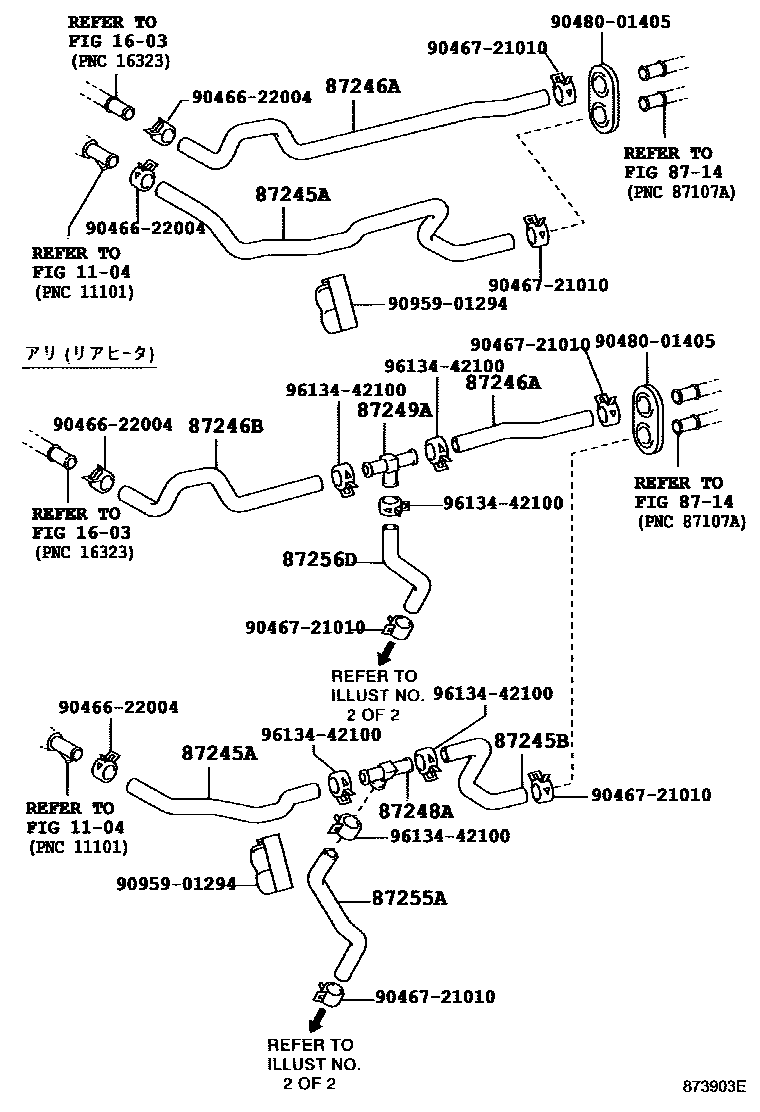

HEATING & AIR CONDITIONING - WATER PIPING

0001 1���� 0002 1���� 0003 1����--��(�� �-�) 0004 1����--��(�� �-�) 0005 1��

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87207-28440iACR30,40200304-200601

main87245-2J130iACR30,40..AERAS,J,X200002-200304

main87245-2J160iMCR30,40..AERAS,X199912-200304

main87245-2J180iACR30,40200002-200304

main87245-2J300iMCR30,40199912-200304

main87245-2J810iACR30,40..AERAS,AERSS,J,X200304-200601

87245BHOSE, HEATER WATER, INLET B

main87245-2J190iACR30,40200002-200304

main87245-2J310iMCR30,40200304-200601

87246AHOSE, HEATER WATER, OUTLET A

main87207-28450iACR30,40200304-200601

main87245-2J150iACR30,40..AERAS,J,X200002-200304

main87245-2J170iMCR30,40..AERAS,X199912-200304

main87245-2J220iACR30,40200002-200304

main87245-2J340iMCR30,40199912-200304

main87245-2J820iACR30,40..AERAS,AERSS,J,X200304-200601

87246BHOSE, HEATER WATER, OUTLET B

main87245-2J210iACR30,40200002-200304

main87245-2J330iMCR30,40199912-200304

87248APIPE, HEATER WATER INLET, A

main87248-08030iACR30,40,MCR30,40199912-200304

87249APIPE, HEATER WATER OUTLET, A

main87248-08030iACR30,40,MCR30,40199912-200304

87255AHOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

main87245-2J320iMCR30,40199912-200304

87256DHOSE, REAR HEATER WATER OUTLET, D

main87245-2J230iACR30,40200002-200304

main87245-2J350iMCR30,40199912-200304

9046622004

main90466-22004

9046721010

main90467-21010

9048001405

main90480-01405

9095901294

main90959-01294

9613442100

main96134-42100

16 parts on this diagram · 5 diagrams in section
