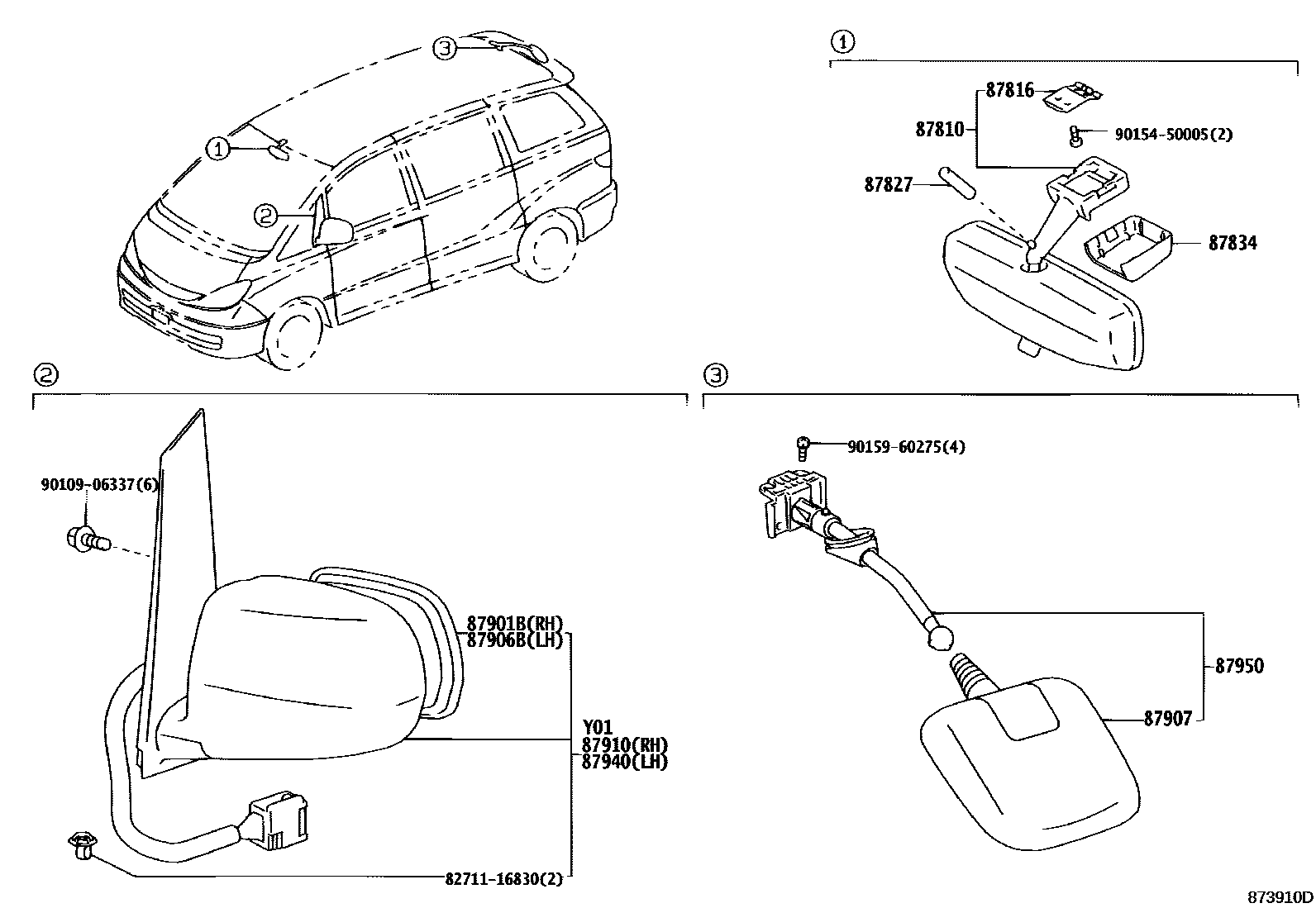

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-14170-B3iACR30,40,MCR30,40..AERAS200204-200304

main87810-14170-B5iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X199912-200304

BLUISH GRAY,TRIM1#; BLUISH GRAY,TRIM11

main87810-14170-B6iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

DK.GRAY,TRIM1#

main87810-14170-E5iACR30,40,MCR30,40..AERAS; ACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iACR30,40,MCR30,40199912-200304

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-32010iACR30,40,MCR30,40199912-200304

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-A2iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

IVORY,TRIM0#

main87834-20080-B3iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X199912-200304

LT.BLUISH GRAY,TRIM1#; LT.BLUISH GRAY,TRIM11

main87834-20080-B5iACR30,40,MCR30,40..AERAS200204-200304

main87834-20080-B6iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

LIGHT GRAY,TRIM1#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-28560iACR30,40,MCR30,40..AERAS,J,X199912-200104

main87931-28610iACR30,40,MCR30,40199912-200104

main87931-28690iACR30,40,MCR30,40..X200010-200104

main87931-28700iACR30,40,MCR30,40..AERAS,G,X200104-200304

main87931-28750iACR30,40..J200304

main87931-28770iACR30,40,MCR30,40..AERAS,G,X200104-200304

main87931-28810iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

main87931-28820iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

main87931-28830iACR30,40..J200304

main87931-48130iACR30,40..J200104-200304

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-28560iACR30,40,MCR30,40..AERAS,J,X199912-200104

main87961-28600iACR30,40,MCR30,40199912-200104

main87961-28650iACR30,40,MCR30,40..X200010-200104

main87961-28660iACR30,40,MCR30,40..AERAS,G,X200104-200304

main87961-28730iACR30,40..J200304

main87961-28750iACR30,40,MCR30,40..AERAS,G,X200104-200304

main87961-28810iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

main87961-28820iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

main87961-28830iACR30,40..J200304

main87961-48130iACR30,40..J200104-200304

87907MIRROR SUB-ASSY, OUTER UNDER VIEW

main87907-28010iACR30,40,MCR30,40200304

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-28100iACR30,40..J200304

main87910-28550iACR30,40..J200002-200104

main87910-28560iACR30,40,MCR30,40..AERAS,X199912-200104

main87910-28610iACR30,40,MCR30,40..AERAS,X; ACR30,40,MCR30,40..G199912-200104

main87910-28620iACR30,40..J200002-200104

main87910-28690iACR30,40,MCR30,40..X200010-200104

main87910-28700iACR30,40,MCR30,40..07S..AERAS; ACR30,40,MCR30,40..07S..G;ACR30,40,MCR30,40..08S..(AERAS,G,X)200104-200105

main87910-28720iACR30,40..J200104-200304

main87910-28770iACR30,40,MCR30,40..AERAS,G,X200104-200304

main87910-28810iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

main87910-28820iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

main87910-28830iACR30,40..J200304

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-28100iACR30,40..J200304

main87940-28550iACR30,40..J200002-200104

main87940-28560iACR30,40,MCR30,40..AERAS,X199912-200104

main87940-28600iACR30,40,MCR30,40..AERAS,X; ACR30,40,MCR30,40..G199912-200104

main87940-28610iACR30,40..J200002-200104

main87940-28650iACR30,40,MCR30,40..X200010-200104

main87940-28660iACR30,40,MCR30,40..07S..AERAS; ACR30,40,MCR30,40..07S..G;ACR30,40,MCR30,40..08S..(AERAS,G,X)200104-200105

main87940-28700iACR30,40..J200104-200304

main87940-28750iACR30,40,MCR30,40..AERAS,G,X200104-200304

main87940-28810iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

main87940-28820iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

main87940-28830iACR30,40..J200304

87950MIRROR ASSY, OUTER UNDER REAR VIEW

main87950-28100iACR30,40,MCR30,40199912-200304

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

9010906337

main90109-06337

9015450005

main90154-50005

9015960275

main90159-60275

14 parts on this diagram · 1 diagram in section
