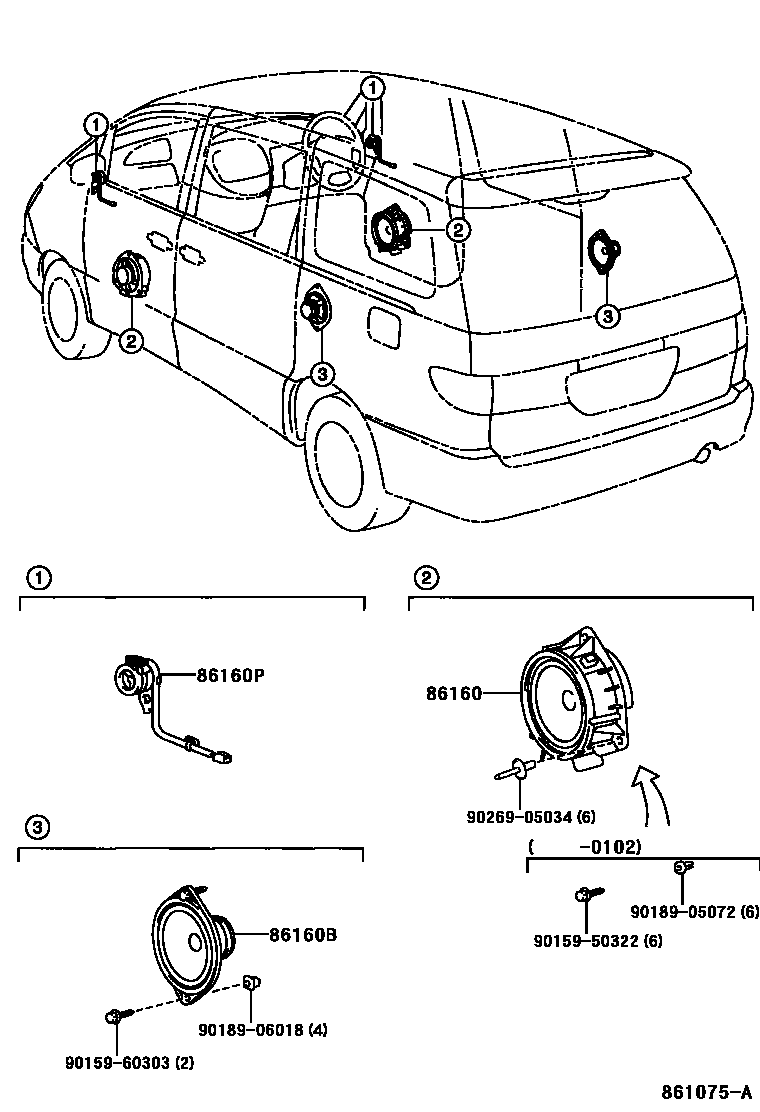

SPEAKER

0001 1 0002 1

86160SPEAKER ASSY, FRONT NO.1

main86160-28510×2iACR30,40,MCR30,40199912-200304

main86160-28511×2iACR30,40,MCR30,40200304

17.5W

main86160-28520×2iACR30,40,MCR30,40199912-200304

main86160-28600×2iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

20W

86160BSPEAKER ASSY, REAR

main86160-28530×2iACR30,40,MCR30,40199912-200304

main86160-28531×2iACR30,40,MCR30,40200304

17.5W

main86160-28540×2iACR30,40,MCR30,40199912-200304

main86160-28610×2iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

20W

86160PSPEAKER ASSY, FRONT NO.2

main86160-28420iACR30,40,MCR30,40199912-200304

main86160-28500iACR30,40,MCR30,40199912-200304

main86160-28640iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

main86160-28650iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

9015950322

main90159-50322

9015960303

main90159-60303

9018905072

main90189-05072

9018906018

main90189-06018

9026905034

main90269-05034

8 parts on this diagram · 2 diagrams in section
