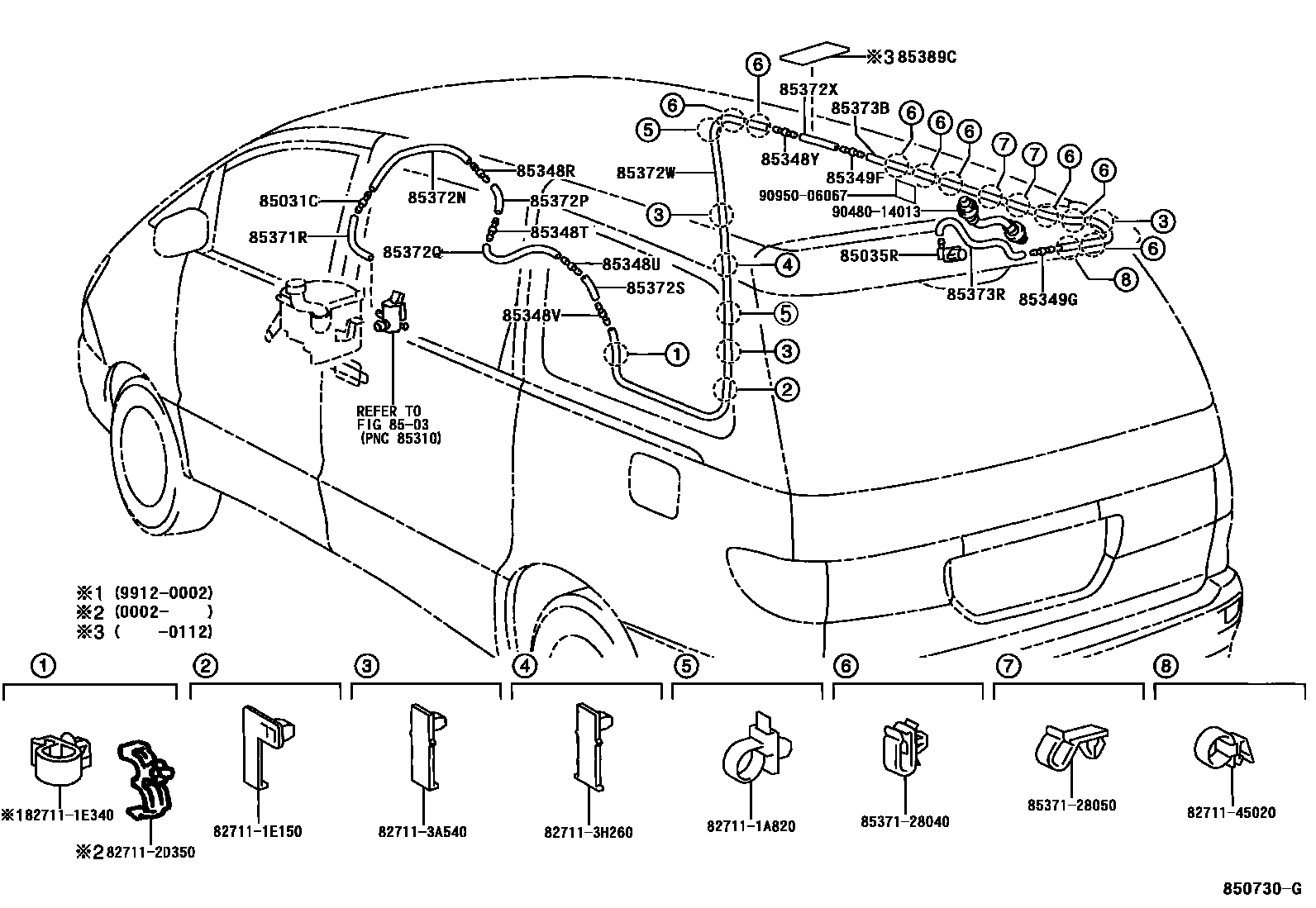

REAR WASHER
8503WINDSHIELD WASHER
85031CVALVE SUB-ASSY, WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85349GJOINT, REAR WASHER HOSE, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85389CPROTECTOR, WASHER
827111A820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A820
827111E150WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E150
827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E340
827112D350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2D350
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A540
827113H260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3H260
8271145020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-45020
8537128040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-28040
8537128050HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-28050
9048014013
main90480-14013
9095006067
main90950-06067
31 parts on this diagram · 2 diagrams in section
