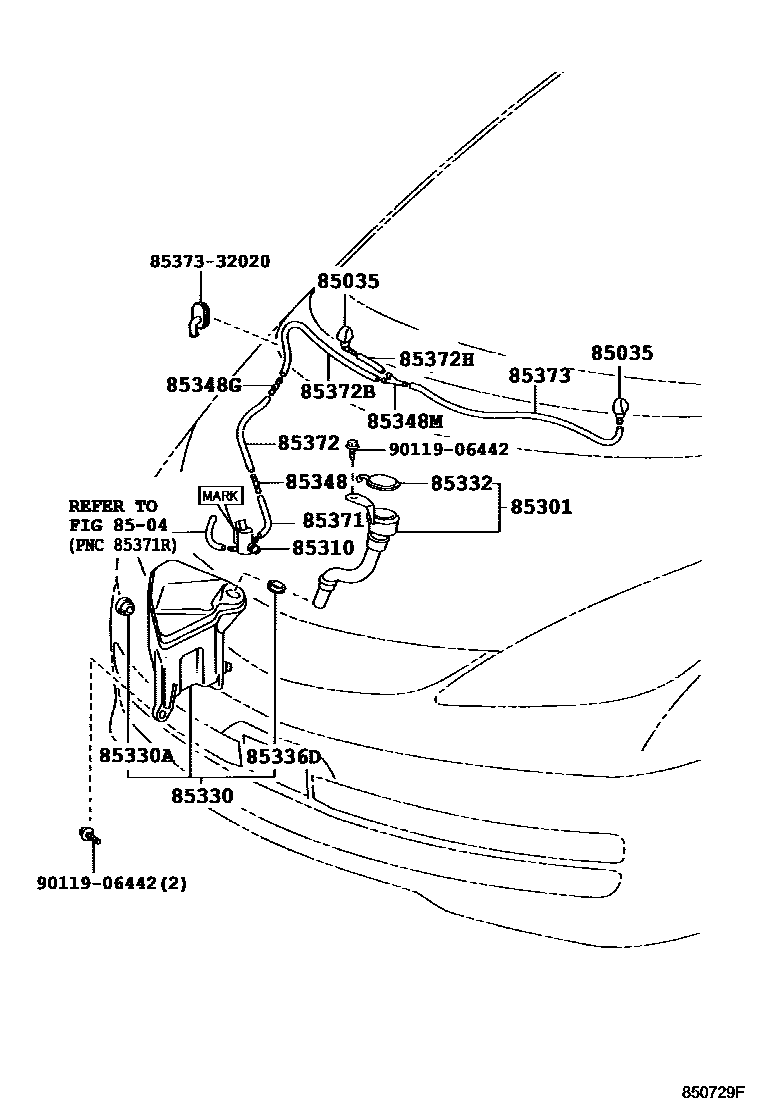

WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85381-28130iACR30,40,MCR30,40199912-200304

main85381-28150iACR30,40,MCR30,40199912-200304

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-28010iACR30,40,MCR30,40199912-200304

main85301-28060iACR30,40,MCR30,40200304

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-14480iACR30,40,MCR30,40199912-200004

main85330-20460iACR30,40,MCR30,40200004-200304

main85330-21010iACR30,40,MCR30,40200304

85330JAR ASSY, WINDSHIELD WASHER

main85315-28110iACR30,40,MCR30,40199912-200304

main85315-28200iACR30,40,MCR30,40200304

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iACR30,40,MCR30,40199912-200304

85332CAP, WINDSHIELD WASHER JAR

main85316-26060iACR30,40,MCR30,40199912-200304

main85316-28060iACR30,40,MCR30,40200304

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160iACR30,40,MCR30,40199912-200304

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iACR30,40,MCR30,40199912-200304

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iACR30,40,MCR30,40199912-200304

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85348-14390iACR30,40,MCR30,40199912-200304

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iACR30,40,MCR30,40199912-200304

main90099-33082iACR30,40,MCR30,40200304-200601

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iACR30,40,MCR30,40199912-200007

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iACR30,40,MCR30,40199912-200007

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iACR30,40,MCR30,40199912-200304

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iMCR30,40199912-200002

8537332020HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-32020

9011906442

main90119-06442

18 parts on this diagram · 2 diagrams in section
