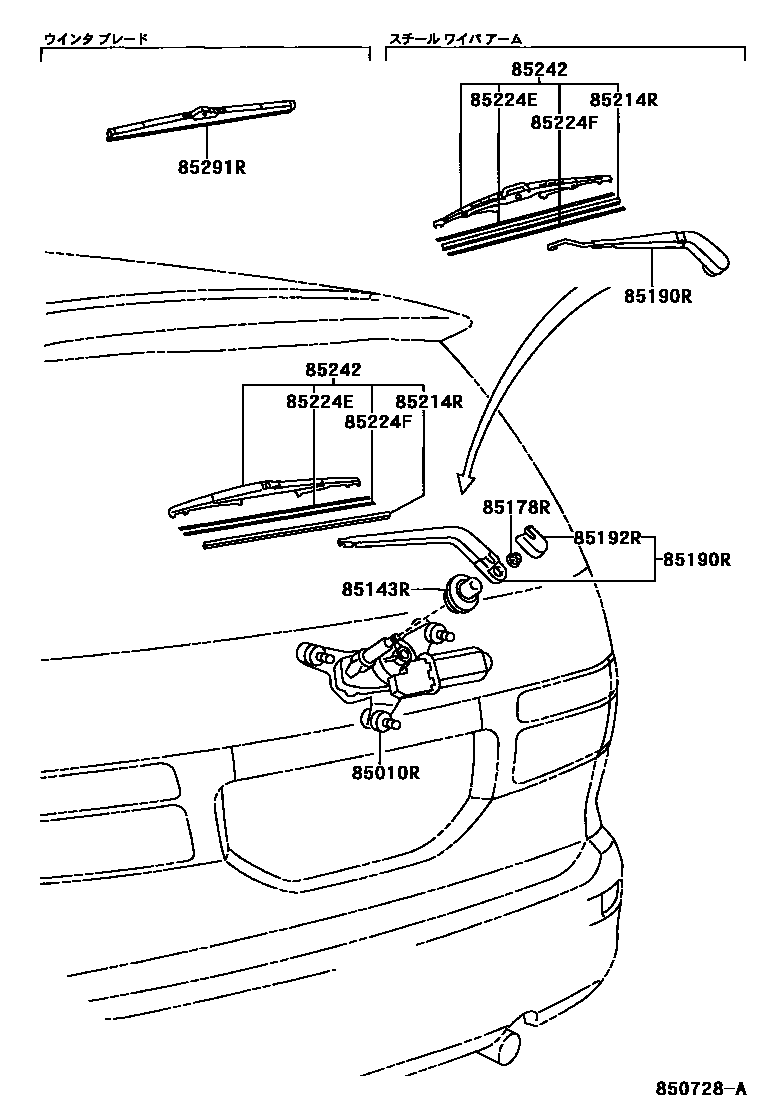

REAR WIPER

0001 1 0002 1

85010RMOTOR & LINK ASSY, RR WIPER

main85020-28010iACR30,40,MCR30,40199912-200304

main85020-28020iACR30,40,MCR30,40200304

85143RGROMMET, REAR WIPER MOTOR

main85143-28060iACR30,40,MCR30,40200304

main85143-44010iACR30,40,MCR30,40199912-200304

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06125iACR30,40,MCR30,40199912-200304

85190RARM ASSY, REAR WIPER

main85241-28090iACR30,40,MCR30,40199912-200304

main85241-44020iACR30,40,MCR30,40200304

85192RCOVER, REAR WIPER ARM

main85292-28030iACR30,40,MCR30,40200304

85214RRUBBER, REAR WIPER

main85214-10100iACR30,40,MCR30,40200304

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-10200iACR30,40,MCR30,40200012-200304

main85224-28070iACR30,40,MCR30,40199912-200304

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-10200iACR30,40,MCR30,40200012-200304

main85224-28070iACR30,40,MCR30,40199912-200304

85242BLADE, RR WIPER

main85242-28060iACR30,40,MCR30,40200304

main85242-60050iACR30,40,MCR30,40200012-200304

85291RBLADE,REAR WIPER, WINTER

main85291-28020iACR30,40,MCR30,40199912-200304

main85291-44080iACR30,40,MCR30,40200304

main85291-44100iACR30,40,MCR30,40200304

main85291-60060iACR30,40,MCR30,40200012-200304

10 parts on this diagram · 2 diagrams in section
