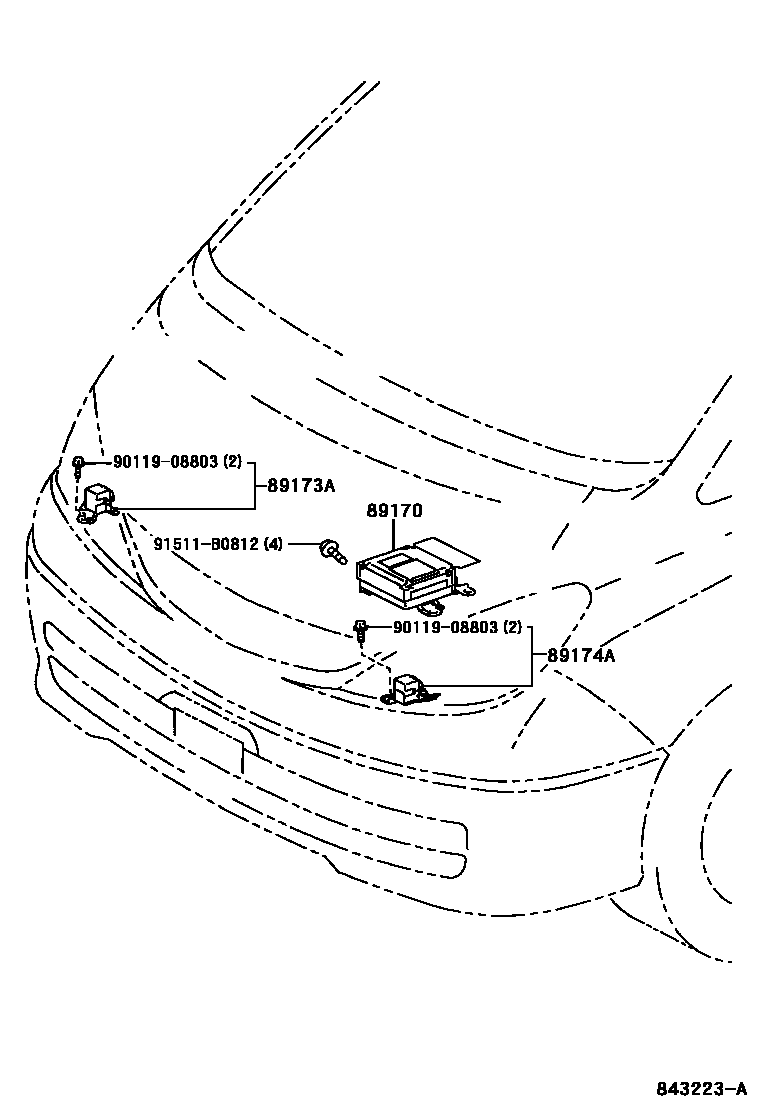

AIR BAG

0001 1 0002 1

89170SENSOR ASSY, AIRBAG

main89170-28170iACR30,40,MCR30,40199912-200304

main89170-28220iACR30,40,MCR30,40200304-200601

89173ASENSOR, AIRBAG, FRONT RH

main89173-29185iACR30,40,MCR30,40199912-200304

main89173-59205iACR30,40,MCR30,40200304

89174ASENSOR, AIRBAG, FRONT LH

main89174-29065iACR30,40,MCR30,40199912-200304

main89174-59135iACR30,40,MCR30,40200304

9011908803

main90119-08803

91511B0812

main91511-B0812

5 parts on this diagram · 2 diagrams in section
