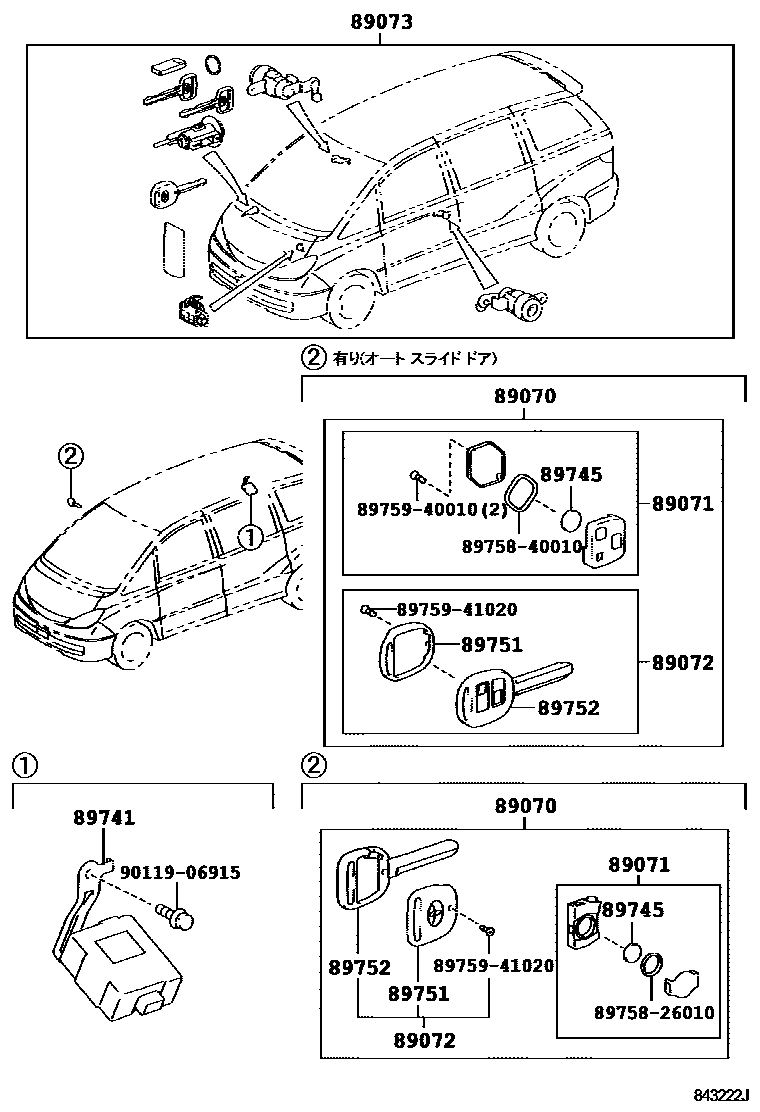

WIRELESS DOOR LOCK

0001 1 0002 1 0003 1��(��������) 0004 1

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-12290iACR30,40200304-200601

main89070-28160iACR30,40,MCR30,40199912-200104

main89070-28170iACR30,40,MCR30,40199912-200103

main89070-28171iACR30,40,MCR30,40200103-200104

main89070-28290iACR30,40,MCR30,40..AERAS,G,X200104-200304

main89070-28300iACR30,40,MCR30,40..AERAS,G,X200104-200304

main89070-28360iACR30,40,MCR30,40..AERAS200204-200304

main89070-28460iACR30,40..AERAS,AERSS,G,X200304-200512

main89070-44060iMCR30,40200304-200601

main89070-58050iMCR30,40200304-200601

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-12021iACR30,40,MCR30,40200103-200104

main89071-12041iACR30,40200304-200601

main89071-28010iACR40..J;ACR30,MCR30..08S..(G,J,X)200104-200105

main89071-28050iACR30,40,MCR30,40199912-200103

main89071-28060iACR30,40,MCR30,40..AERAS,G,X200104-200304

main89071-30050iACR30,40,MCR30,40..AERAS,G,X200102-200304

main89071-58060iACR30,40..AERAS,AERSS,G,X200304-200601

main89071-60070iMCR30,40200304-200601

89072HOUSING SET, DOOR CONTROL TRANSMITTER

main89072-28030iACR30,40,MCR30,40200103-200104

main89072-28580iACR30,40..J200105-200304

main89072-47020iACR30,40,MCR30,40200304-200601

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main69005-28770iACR30,40200304

main69005-28780iMCR30,40200304

main69005-28790iACR30,40..AERAS,AERSS,G,X200304-200512

main69005-28791iACR30,40..AERAS,AERSS,G,X200601

main69005-28800iMCR30,40200304-200512

main69005-28801iMCR30,40200601

main69005-28A90iACR30,40..AERAS200409

main69005-28B00iMCR30,40..AERAS200409

main89073-28100iACR30,40,MCR30,40199912-200104

main89073-28110iACR40..J;ACR30,MCR30..08S..(G,J,X)200104-200105

main89073-28230iACR30,40,MCR30,40..AERAS,G,X200104-200304

main89073-28240iACR30,40,MCR30,40..AERAS,G,X200104-200304

main89073-28300iACR30,40,MCR30,40..AERAS200204-200304

89741RECEIVER, DOOR CONTROL

main89741-28110iACR30,40,MCR30,40..08S;ACR30,40,MCR30,40..07S..G199912-200304

main89741-28120iACR30,40,MCR30,40199912-200103

main89741-28121iACR40..J;ACR30,MCR30..08S..(G,J,X)200104-200105

main89741-28220iACR30,40,MCR30,40200304-200601

89745BATTERY, TRANSMITTER

main89745-26010iACR30,40,MCR30,40199912-200304

main89745-40010iACR30,40,MCR30,40199912-200304

main89745-48030iACR30,40,MCR30,40..AERAS,AERSS,G,X; ACR30,40..AERAS,AERSS,G,X200304-200601

main89745-50010iACR30,40,MCR30,40..AERAS,AERSS,G,X200304-200601

89751COVER, TRANSMITTER HOUSING

main89751-28050iACR30,40,MCR30,40..AERAS200204-200304

main89751-44010iACR30,40,MCR30,40199912-200304

main89751-44050iACR30,40,MCR30,40..AERAS,AERSS,G,X200304-200601

main89751-50010iACR30,40,MCR30,40199912-200304

89752CASE, TRANSMITTER HOUSING

main89752-13020iACR30,40,MCR30,40..AERAS,AERSS,G,X200304-200601

main89752-28080iACR30,40..J200104-200105

main89752-28120iACR40..J;ACR30,MCR30..08S..(G,J,X)200104-200105

main89752-46020iACR30,40,MCR30,40200304-200601

8975826010PACKING, DOOR CONTROL TRANSMITTER

main89758-26010

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9011906915

main90119-06915

13 parts on this diagram · 4 diagrams in section
