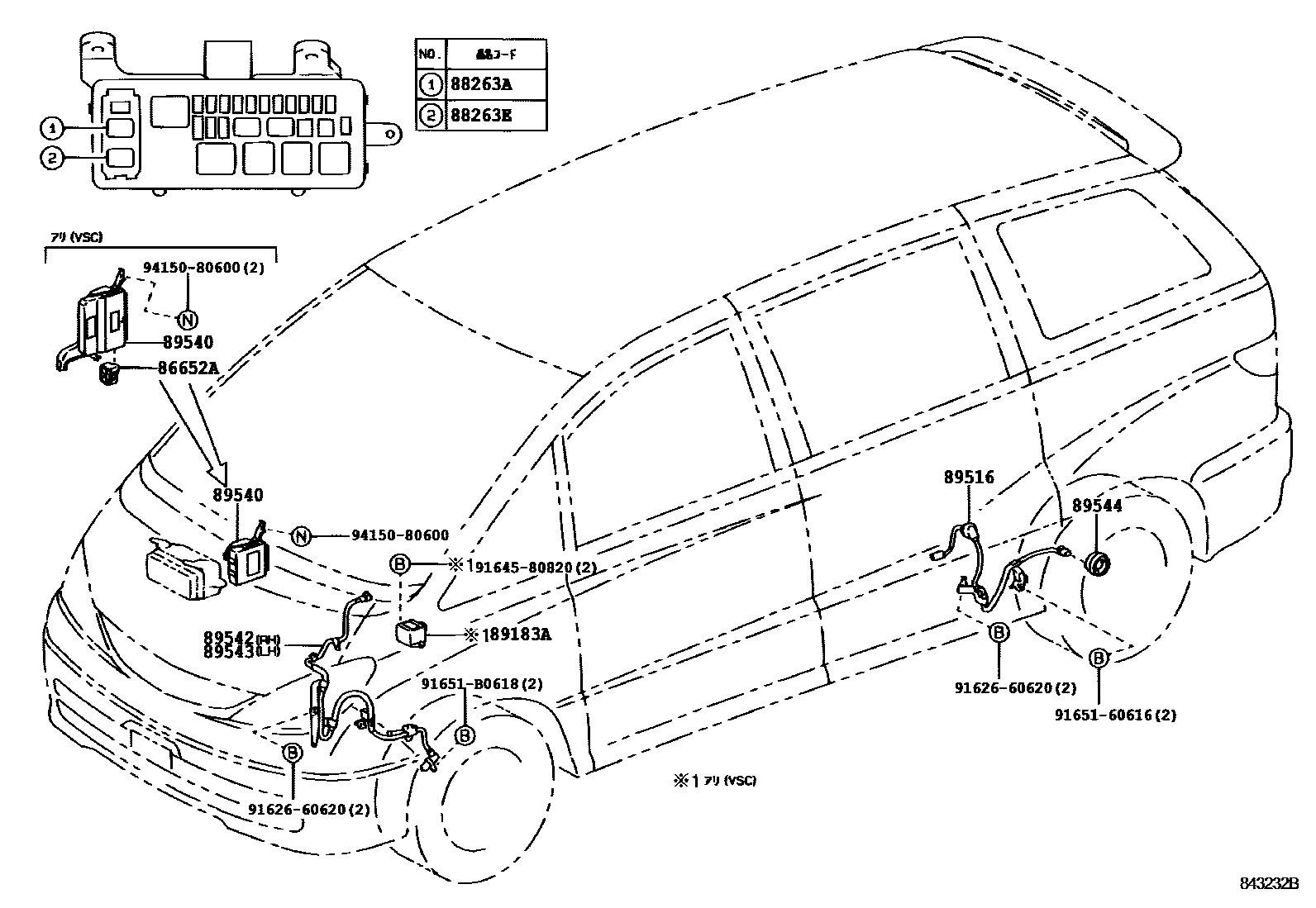

ABS & VSC

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1��(VSC)

86652ABUZZER ASSY, SKID CONTROL

main86652-51010iMCR30199912-200304

88263ARELAY, SKID CONTROL

main88263-32070iACR40,MCR30,40200008-200304

88263ERELAY, SKID CONTROL NO.2

main88263-32080iACR40,MCR40200304

89183ASENSOR, YAWRATE

main89183-30060iMCR30199912-200304

main89183-60010iMCR30,40200304-200601

89516WIRE, SKID CONTROL SENSOR

main89516-28010iACR30,MCR30199912-200304

main89516-28020iACR30,MCR30200304-200601

89540COMPUTER ASSY, SKID CONTROL

main89540-28360iACR30,MCR30199912-200008

main89540-28390iMCR30199912-200304

main89540-28440iACR40200304-200601

main89540-28450iMCR40200304-200601

main89540-28500iMCR30..AERAS,G200304-200601

main89540-28510iMCR30..AERSS200304-200601

main89540-28520iMCR40..AERAS,G200304-200601

main89540-28530iMCR40..AERSS200304-200601

main89541-28170iACR40,MCR40199912-200304

89542SENSOR, SPEED, FRONT RH

main89542-28090iACR30,40,MCR30,40199912-200304

89543SENSOR, SPEED, FRONT LH

main89543-28090iACR30,40,MCR30,40199912-200304

89544SENSOR, SKID CONTROL

main89544-20010×2iACR30,MCR30200304-200601

main89544-47010×2iACR30,MCR30199912-200304

9162660620

main91626-60620

9164580820

main91645-80820

9165160616

main91651-60616

91651B0618

main91651-B0618

9415080600

main94150-80600

14 parts on this diagram · 6 diagrams in section
