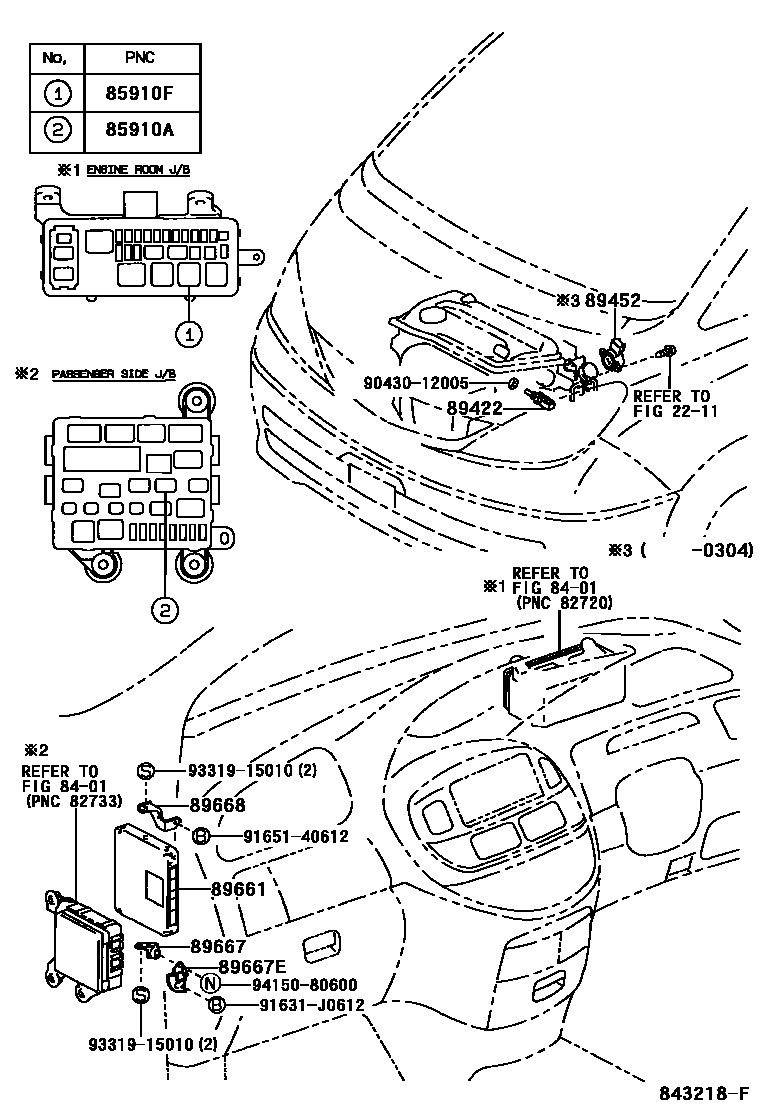

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iACR30,40,MCR30,40199912-200304

main90987-02027iACR30,40; MCR30,40200306-200601

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iACR30,40,MCR30,40199912-200304

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iACR30,40200304-200601

main89422-35010iACR30,40,MCR30,40199912-200304

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-33030iACR30,40200002-200005

main89452-33040iMCR30,40199912-200005

89661COMPUTER, ENGINE CONTROL

main89661-28830iMCR30199912-200104

main89661-28840iMCR40199912-200104

main89661-28870iMCR30200104-200304

main89661-28880iMCR40200104-200304

main89661-28A00iACR30200304-200409

main89661-28A10iACR40200304-200409

main89661-2J010iACR30..AERAS,G,X200204-200304

main89666-28010iACR30200002-200011

main89666-28011iACR30..J200104-200304

main89666-28020iACR40200002-200011

main89666-28021iACR40..G,J,X200011-200105

main89666-28090iACR30..AERAS,G,X200104-200204

main89666-28110iACR40..AERAS,G,X200105-200304

main89666-28150iACR30200409-200601

main89666-28170iMCR30200304-200403

main89666-28171iMCR30200403-200601

main89666-28180iMCR40200304-200403

main89666-28181iMCR40200403-200601

main89666-28190iACR40200409-200601

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-28060iACR30,40200304-200601

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-28070iACR30,40,MCR30,40199912-200304

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-28060iACR30,40,MCR30,40199912-200304

9043012005

main90430-12005

91631J0612

main91631-J0612

9165140612

main91651-40612

9331915010

main93319-15010

9415080600

main94150-80600

15 parts on this diagram · 2 diagrams in section
