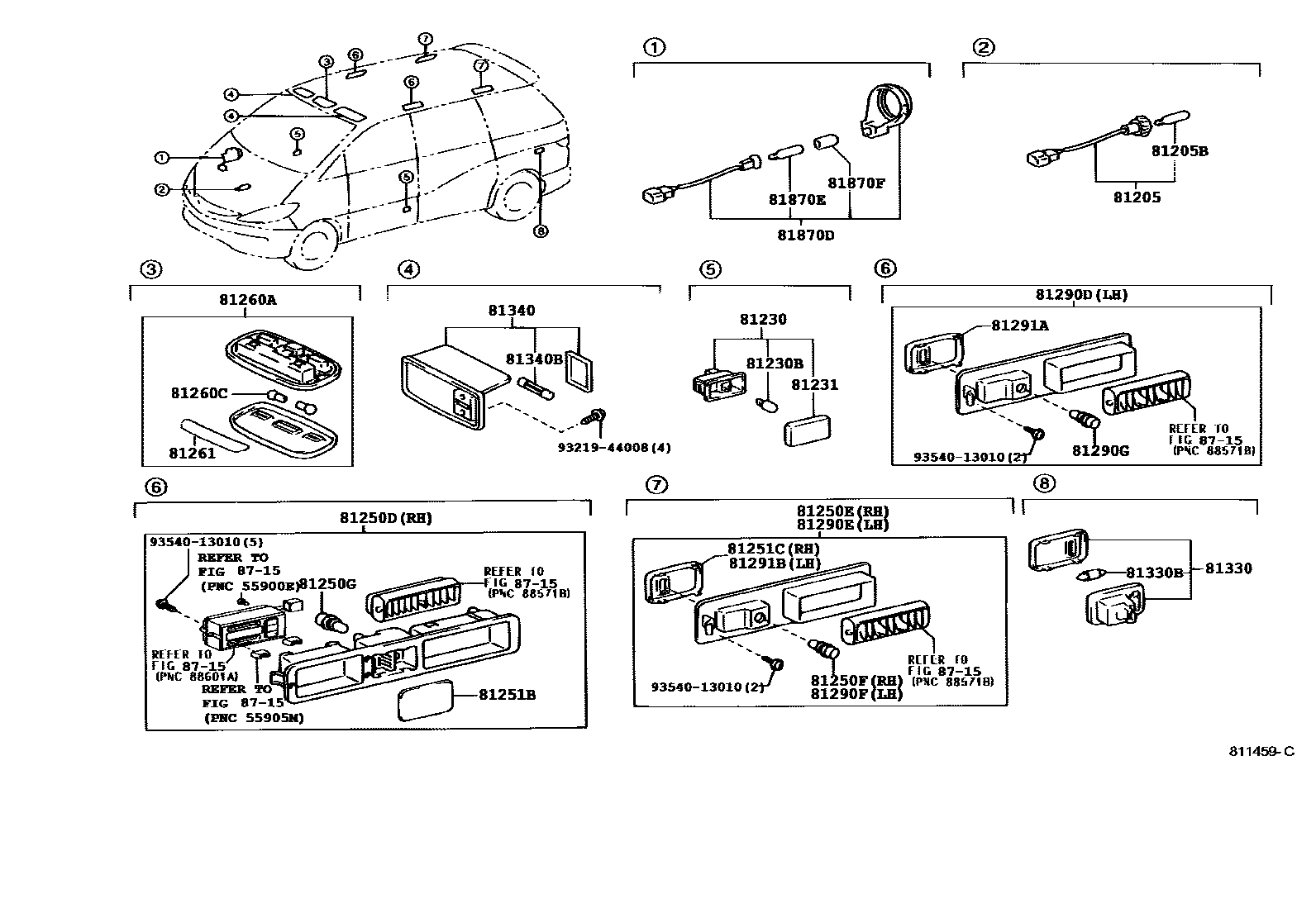

INTERIOR LAMP

0001 1 0002 1��(��� �-� �-�) 0003 1 0004 1��(��� �-� �-�)

81205LAMP SUB-ASSY, ASH RECEPTACLE

main81850-28050iACR30,40,MCR30,40200304

81205BBULB, ASH RECEPTACLE LAMP

main90981-11014iACR30,40,MCR30,40200304

81230LAMP ASSY, COURTESY

main81230-30140×2iACR30,40,MCR30,40..G200304

81230BBULB(FOR COURTESY LAMP)

main90981-11020×2iACR30,40,MCR30,40..G200304

81231LENS, COURTESY LAMP

main81231-50010×2iACR30,40,MCR30,40..G200304

81250DLAMP ASSY, REAR ROOM, RH

main81250-28040-A0iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),IVORY,TRIM0#

main81250-28040-B0iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..J,X199912-200304

LT. BLUISH GRAY,TRIM1#; LT. BLUISH GRAY,TRIM11

main81250-28040-B1iACR30,40,MCR30,40..AERAS200204-200304

main81250-28040-B2iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

LT.GRAY,TRIM1#

main81250-28060-A0iACR40..X;ACR30..J,X200304-200601

main81250-28060-B2iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X199912-200304

main81250-28060-B3iACR30,40,MCR30,40..AERAS200204-200304

main81250-28060-B4iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

main81250-28090-A0iACR30,40,MCR30,40..G200304-200601

IVORY,TRIM0#

main81250-28100-A0iACR30,40,MCR30,40..G,X200304-200601

main81250-28100-B2iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X199912-200304

main81250-28100-B3iACR30,40,MCR30,40..AERAS200204-200304

main81250-28100-B4iACR30,40,MCR30,40..AERAS,AERSS200304-200601

81250ELAMP ASSY, REAR ROOM, RH NO.2

main81250-28020-A0iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

IVORY,TRIM0#

main81250-28020-B2iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X199912-200304

LT. BLUISH GRAY,TRIM1#; LT. BLUISH GRAY,TRIM11

main81250-28020-B3iACR30,40,MCR30,40..AERAS200204-200304

main81250-28020-B4iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

LT.GRAY,TRIM1#

81250FBULB, REAR ROOM LAMP RH NO.2

main81936-28010iACR30,40,MCR30,40199912-200304

81250GBULB, REAR ROOM LAMP, RH

main81936-28010iACR30,40,MCR30,40199912-200304

81251BLENS, REAR ROOM LAMP, RH

main81251-28040iACR30,40,MCR30,40200304

81251CLENS, REAR ROOM LAMP, RH NO.2

main81251-28020iACR30,40,MCR30,40200304

81260ALAMP ASSY, MAP

main81260-16061-A0iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),IVORY,TRIM0#

main81260-16061-B1iACR30,40,MCR30,40..G,J,X199912-200304

MD.CHARCOAL,TRIM12

main81260-16061-B2iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X199912-200304

LT. BLUISH GRAY,TRIM1#; LT. BLUISH GRAY,TRIM11

main81260-16061-B3iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-12005×2iACR30,40,MCR30,40199912-200304

81261LENS AND COVER, MAP LAMP

main81261-16060iACR30,40,MCR30,40199912-200304

81290DLAMP ASSY, REAR ROOM, LH

main81290-28010-A0iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),IVORY,TRIM0#

main81290-28010-B2iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X199912-200304

LT. BLUISH GRAY,TRIM1#; LT. BLUISH GRAY,TRIM11

main81290-28010-B3iACR30,40,MCR30,40..AERAS200204-200304

main81290-28010-B4iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

LT.GRAY,TRIM1#

81290ELAMP ASSY, REAR ROOM, LH NO.2

main81290-28010-A0iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),IVORY,TRIM0#

main81290-28010-B2iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X199912-200304

LT. BLUISH GRAY,TRIM1#; LT. BLUISH GRAY,TRIM11

main81290-28010-B3iACR30,40,MCR30,40..AERAS200204-200304

main81290-28010-B4iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

LT.GRAY,TRIM1#

81290FBULB, REAR ROOM LAMP LH NO.2

main81936-28010iACR30,40,MCR30,40199912-200304

81290GBULB, REAR ROOM LAMP, LH

main81936-28010iACR30,40,MCR30,40200304

81291ALENS, REAR ROOM LAMP, LH

main81291-28010iACR30,40,MCR30,40199912-200304

81291BLENS, REAR ROOM LAMP, LH NO.2

main81291-28010iACR30,40,MCR30,40199912-200304

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-12030-A0iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

IVORY,TRIM0#

main81250-12030-B3iACR30,40,MCR30,40..G,J,X200010-200304

MD.CHARCOAL,TRIM12

main81250-12030-B6iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X200010-200304

LT. BLUISH GRAY,TRIM1#; LT. BLUISH GRAY,TRIM11

main81250-12030-B9iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

MD.GRAY,TRIM1#

main81250-95J05-B1iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X199912-200010

LT. BLUISH GRAY,TRIM1#; LT. BLUISH GRAY,TRIM11

main81250-95J05-B2iACR30,40,MCR30,40..G,J,X199912-200010

MD.CHARCOAL,TRIM12

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-13050iACR30,40,MCR30,40199912-200304

81340LAMP ASSY, VANITY

main81340-33090-A1iACR30,40,MCR30,40..G200304-200601

main81340-33090-B3iACR30,40,MCR30,40..X200010-200104

main81340-33090-B6iACR30,40,MCR30,40..AERAS200204-200304

main81340-33090-B9iACR30,40,MCR30,40..AERAS200409

main81350-33040-A1iACR30,40,MCR30,40..G200304-200601

main81350-33040-B3iACR30,40,MCR30,40..G199912-200304

main81350-33040-B6iACR30,40,MCR30,40..AERAS200204-200304

main81350-33040-B9iACR30,40,MCR30,40..AERAS200409

81340BBULB (FOR VANITY LAMP)

main90981-14003×2iACR30,40,MCR30,40..X200010-200104

81870DLAMP ASSY, KEY CYLINDER

main81870-28040iACR30,40,MCR30,40199912-200104

81870EBULB, KEY CYLINDER LAMP

main90981-11014iACR30,40,MCR30,40199912-200104

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10070iACR30,40,MCR30,40199912-200104

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9321944008

main93219-44008

9354013010

main93540-13010

30 parts on this diagram · 4 diagrams in section
