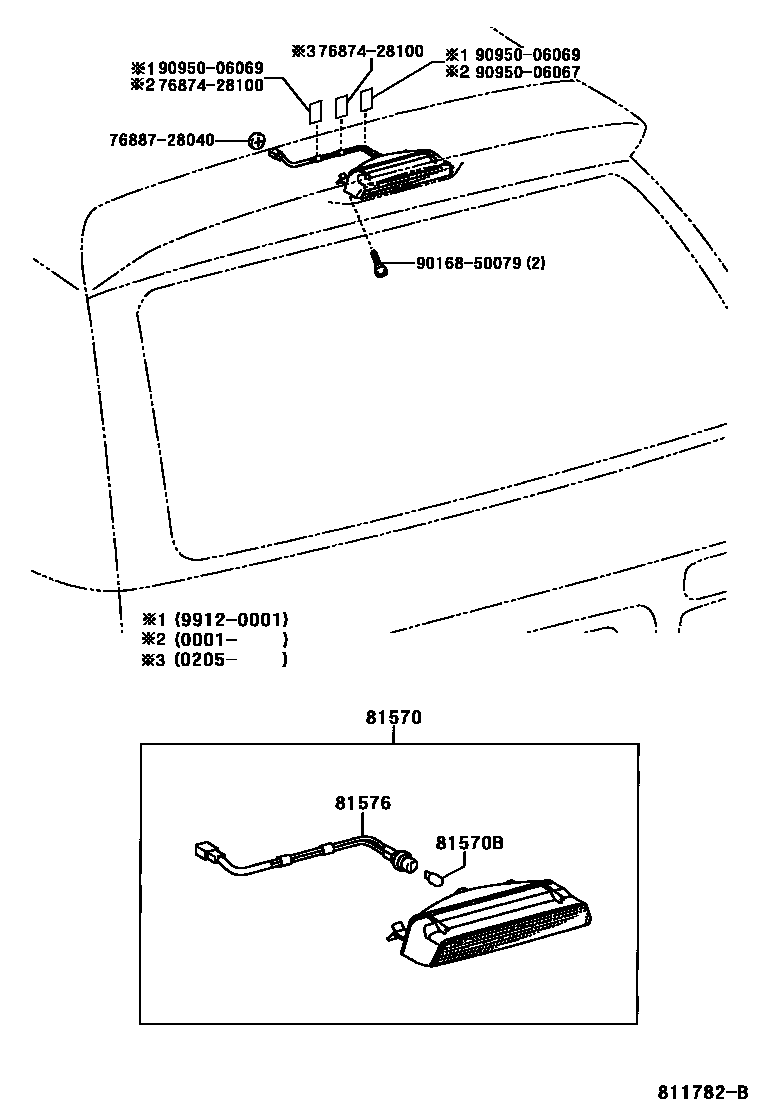

CENTER STOP LAMP

0001 1 0003 1

81570LAMP ASSY, CENTER STOP

main81570-28180iACR30,40,MCR30,40199912-200304

main81570-28200iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

81570BBULB (FOR CENTER STOP LAMP)

main90981-11055iACR30,40,MCR30,40199912-200304

main90981-11059iACR30,40..J200304

81576SOCKET & WIRE, CENTER STOP LAMP

main81576-28180iACR30,40,MCR30,40199912-200304

7687428100PROTECTOR, REAR SPOILER, NO.3

main76874-28100

7688728040SEAL, REAR SPOILER

main76887-28040

9016850079

main90168-50079

9095006067

main90950-06067

9095006069

main90950-06069

8 parts on this diagram · 2 diagrams in section
