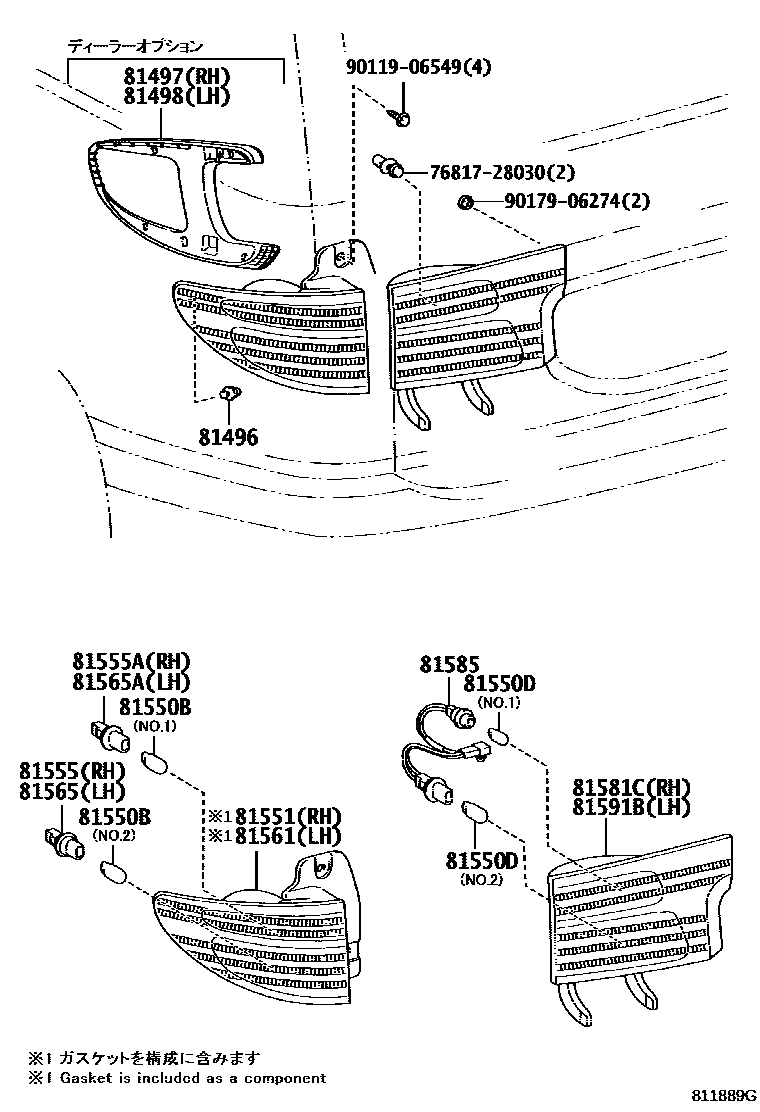

REAR COMBINATION LAMP

0001 1 0002 1

81496GUIDE, REAR COMBINATION LAMP

main81496-28010×2iACR30,40,MCR30,40199912-200304

81497COVER, REAR COMBINATION LAMP, RH

main81497-28020-A0iACR30,40,MCR30,40200104-200304

main81497-28020-B0iACR30,40,MCR30,40200104-200304

main81497-28020-C0iACR30,40,MCR30,40200104-200304

main81497-28020-C1iACR30,40,MCR30,40..AERAS200204-200304

main81497-28020-D0iACR30,40,MCR30,40200104-200304

main81497-28020-D1iACR30,40,MCR30,40..G,J,X200104-200304

main81497-28020-F0iACR30,40,MCR30,40200104-200304

main81497-28020-G0iACR30,40,MCR30,40..G,J,X200104-200304

main81497-28020-J0iACR30,40,MCR30,40..G,J,X200104-200304

main81497-28020-J1iACR30,40,MCR30,40..G,J,X200104-200304

main81497-28050-A0iACR30,MCR30,40;ACR40..AERAS,AERSS,G,X200304-200601

main81497-28050-B0iACR30,40,MCR30,40..G,J,X200304-200601

main81497-28050-B1iACR30,40,MCR30,40..AERAS,AERSS200304-200601

main81497-28050-C0iACR30,40,MCR30,40..AERAS,AERSS200304-200601

main81497-28050-D0iACR30,MCR30,40;ACR40..AERAS,AERSS,G,X200304-200601

main81497-28050-E0iACR30,40,MCR30,40..G,J,X200304-200601

main81497-28050-G0iACR30,40,MCR30,40..G,J,X200304-200601

main81497-28050-J0iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

81498COVER, REAR COMBINATION LAMP, LH

main81498-28020-A0iACR30,40,MCR30,40200104-200304

main81498-28020-B0iACR30,40,MCR30,40200104-200304

main81498-28020-C0iACR30,40,MCR30,40200104-200304

main81498-28020-C1iACR30,40,MCR30,40..AERAS200204-200304

main81498-28020-D0iACR30,40,MCR30,40200104-200304

main81498-28020-D1iACR30,40,MCR30,40..G,J,X200104-200304

main81498-28020-F0iACR30,40,MCR30,40200104-200304

main81498-28020-G0iACR30,40,MCR30,40..G,J,X200104-200304

main81498-28020-J0iACR30,40,MCR30,40..G,J,X200104-200304

main81498-28020-J1iACR30,40,MCR30,40..G,J,X200104-200304

main81498-28050-A0iACR30,MCR30,40;ACR40..AERAS,AERSS,G,X200304-200601

main81498-28050-B0iACR30,40,MCR30,40..G,J,X200304-200601

main81498-28050-B1iACR30,40,MCR30,40..AERAS,AERSS200304-200601

main81498-28050-C0iACR30,40,MCR30,40..AERAS,AERSS200304-200601

main81498-28050-D0iACR30,MCR30,40;ACR40..AERAS,AERSS,G,X200304-200601

main81498-28050-E0iACR30,40,MCR30,40..G,J,X200304-200601

main81498-28050-G0iACR30,40,MCR30,40..G,J,X200304-200601

main81498-28050-J0iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

81550LAMP ASSY, REAR COMBINATION, RH

main81550-28360iACR30,40,MCR30,40..G,J,X200304-200601

main81550-28370iACR30,40,MCR30,40..AERAS,AERSS200304-200601

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11042×2iACR30,40,MCR30,40199912-200304

main90981-11043×2iACR30,40,MCR30,40199912-200304

main90981-15011×2iACR30,40,MCR30,40200304-200601

main90981-15013×2iACR30,40,MCR30,40199912-200304

81550DBULB(FOR REAR COMBINATION LAMP)

main90981-11042×2iACR30,40,MCR30,40199912-200304

main90981-11043×2iACR30,40,MCR30,40199912-200304

main90981-11048×2iACR30,40,MCR30,40200304-200601

main90981-11055×2iACR30,40,MCR30,40199912-200304

main90981-11059×2iACR30,40,MCR30,40200304-200601

main90981-13043×2iACR30,40,MCR30,40200304-200601

81551LENS, REAR COMBINATION LAMP, RH

main81551-28260iACR30,40,MCR30,40..G,J,X199912-200108

ESTIMA-T

main81551-28261iACR30,40,MCR30,40..G,J,X200108-200304

ESTIMA-T

main81551-28270iACR30,40,MCR30,40..AERAS199912-200108

ESTIMA-T

main81551-28271iACR30,40,MCR30,40..AERAS200108-200304

ESTIMA-T

main81551-28280iACR30,40,MCR30,40..G,J,X199912-200108

ESTIMA-L

main81551-28281iACR30,40,MCR30,40..G,J,X200108-200304

ESTIMA-L

main81551-28290iACR30,40,MCR30,40..AERAS199912-200108

ESTIMA-L

main81551-28291iACR30,40,MCR30,40..AERAS200108-200304

ESTIMA-L

main81551-28360iACR30,40,MCR30,40..G,J,X200304

main81551-28370iACR30,40,MCR30,40..AERAS,AERSS200304

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-21180iACR30,40,MCR30,40199912-200304

81555ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-21190iACR30,40,MCR30,40199912-200304

ESTIMA-L

main81555-28260iACR30,40,MCR30,40199912-200304

ESTIMA-T

81561LENS, REAR COMBINATION LAMP, LH

main81561-28260iACR30,40,MCR30,40..G,J,X199912-200108

ESTIMA-T

main81561-28261iACR30,40,MCR30,40..G,J,X200108-200304

ESTIMA-T

main81561-28270iACR30,40,MCR30,40..AERAS199912-200108

ESTIMA-T

main81561-28271iACR30,40,MCR30,40..AERAS200108-200304

ESTIMA-T

main81561-28280iACR30,40,MCR30,40..G,J,X199912-200108

ESTIMA-L

main81561-28281iACR30,40,MCR30,40..G,J,X200108-200304

ESTIMA-L

main81561-28290iACR30,40,MCR30,40..AERAS199912-200108

ESTIMA-L

main81561-28291iACR30,40,MCR30,40..AERAS200108-200304

ESTIMA-L

main81561-28360iACR30,40,MCR30,40..G,J,X200304

main81561-28370iACR30,40,MCR30,40..AERAS,AERSS200304

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-21180iACR30,40,MCR30,40199912-200304

81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-21190iACR30,40,MCR30,40199912-200304

ESTIMA-L

main81555-28260iACR30,40,MCR30,40200304

81581CLENS AND BODY, REAR LAMP, RH

main81581-28050iACR30,40,MCR30,40..G,J,X199912-200304

main81581-28070iACR30,40,MCR30,40..G,J,X199912-200304

main81581-28090iACR30,40,MCR30,40..AERAS199912-200304

main81581-28100iACR30,40,MCR30,40..AERAS199912-200304

main81581-28140iACR30,40,MCR30,40..G,J,X200304

main81581-28160iACR30,40,MCR30,40..AERAS,AERSS200304

main81581-28170iACR30,40,MCR30,40..G,J,X200304

main81581-28190iACR30,40,MCR30,40..AERAS,AERSS200304

81585SOCKET & WIRE, REAR LAMP

main81585-28050iACR30,40,MCR30,40199912-200304

main81585-28070iACR30,40,MCR30,40199912-200304

main81585-28140iACR30,40,MCR30,40200304

main81585-28170iACR30,40,MCR30,40200304

main81595-28050iACR30,40,MCR30,40199912-200304

main81595-28070iACR30,40,MCR30,40199912-200304

main81595-28140iACR30,40,MCR30,40200304

main81595-28170iACR30,40,MCR30,40200304

81591BLENS AND BODY, REAR LAMP, LH

main81591-28050iACR30,40,MCR30,40..G,J,X199912-200304

main81591-28070iACR30,40,MCR30,40..G,J,X199912-200304

main81591-28090iACR30,40,MCR30,40..AERAS199912-200304

main81591-28100iACR30,40,MCR30,40..AERAS199912-200304

main81591-28140iACR30,40,MCR30,40..G,J,X200304

main81591-28160iACR30,40,MCR30,40..AERAS,AERSS200304

main81591-28170iACR30,40,MCR30,40..G,J,X200304

main81591-28190iACR30,40,MCR30,40..AERAS,AERSS200304

7681728030CLIP, BACK DOOR OUTSIDE GARNISH

main76817-28030

9011906549

main90119-06549

9017906274

main90179-06274

18 parts on this diagram · 2 diagrams in section
