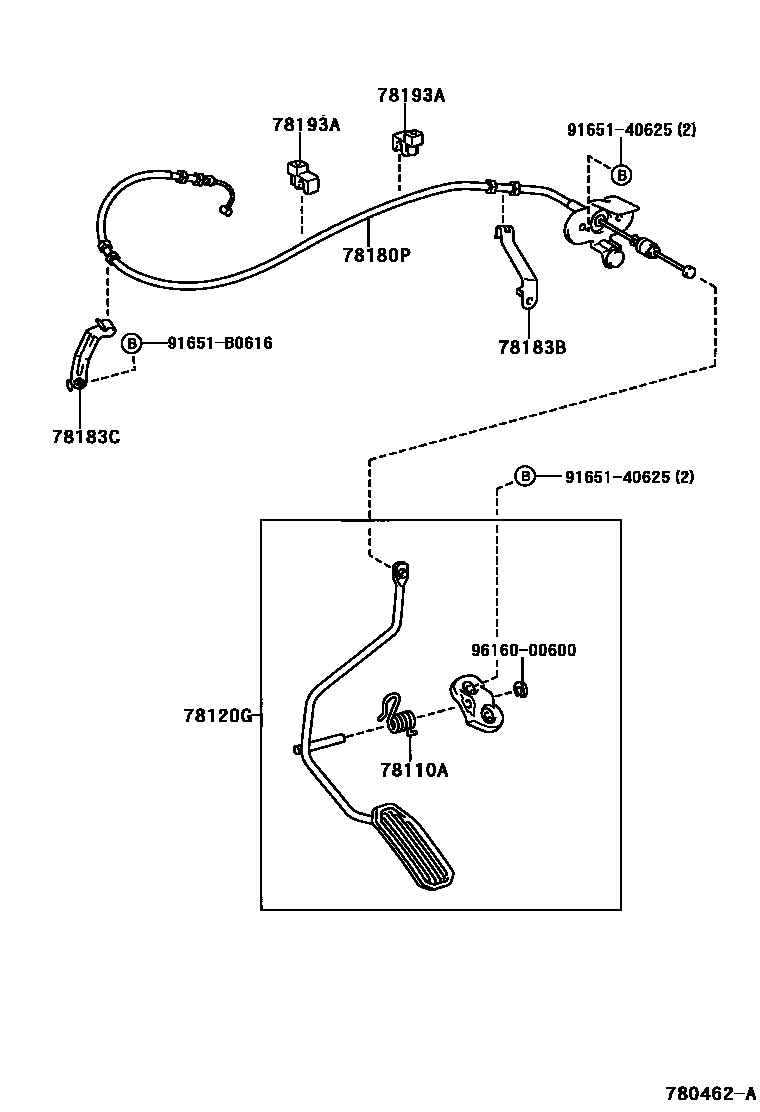

ACCELERATOR LINK

0001 1 0002 1 0003 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90959-03271iACR30,40200002-200304

main90959-03272iMCR30,40199912-200304

78120GROD ASSY, ACCELERATOR PEDAL

main78010-28200iACR30,40200304

main78120-28140iMCR30,40200304-200307

main78120-28141iMCR30,40200307

main78120-28150iACR30,40200002-200304

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-28280iMCR30,40199912-200304

main78180-28320iACR30,40200002-200304

main78180-28380iMCR30,40..AERAS,G200304

main78180-28390iMCR30,40..AERSS200304

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-28280iMCR30,40199912-200304

main78183-28300iACR30,40200002-200304

main78183-28350iMCR30,40200304-200601

main78183-28360iMCR30,40200304-200601

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-28290iMCR30,40199912-200304

main78183-28370iMCR30,40..AERSS200304

78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3

main78193-28010×2iMCR30,40199912-200304

9165140625

main91651-40625

91651B0616

main91651-B0616

9616000600

main96160-00600

9 parts on this diagram · 3 diagrams in section
