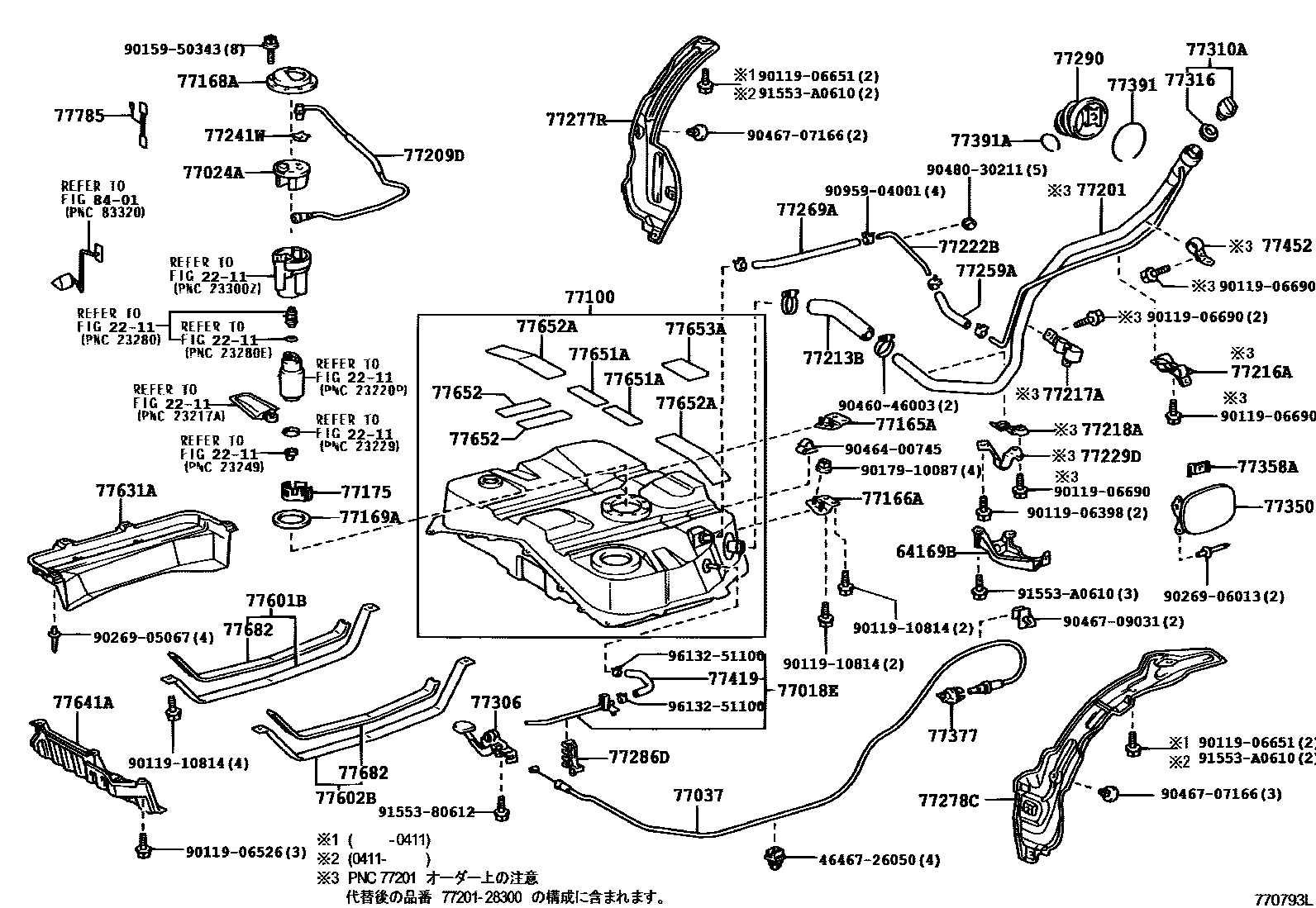

FUEL TANK & TUBE

0001 1 0002 1 0003 1

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

64169BPROTECTOR, FUEL INLET

main64169-28010iACR30,40,MCR30,40200304

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-28100iACR30,40,MCR30,40199912-200107

main77018-28101iACR30,40,MCR30,40200107-200304

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-30070iACR30,40,MCR30,40199912-200304

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-28020iACR30,40,MCR30,40200304

77100TANK ASSY, FUEL

main77001-28480iACR30,MCR30199912-200107

main77001-28481iACR30,MCR30200107-200304

main77001-28482iACR30,MCR30200512

main77001-28520iACR40,MCR40199912-200107

main77001-28521iACR40,MCR40200107-200304

main77001-28522iACR40,MCR40200512

77165ABRACKET, FUEL TANK MOUNTING, REAR NO.2 RH

main77165-28020iACR30,40,MCR30,40199912-200304

77166ABRACKET, FUEL TANK MOUNTING, REAR NO.2 LH

main77166-28040iACR30,40,MCR30,40199912-200304

77168APLATE, FUEL TANK VENT TUBE SET

main77168-12240iACR30,40,MCR30,40199912-200107

main77168-33050iACR30,40,MCR30,40200107-200304

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iACR30,40,MCR30,40199912-200304

77175SUPPORT, FUEL SUCTION, NO.2

main77175-30050iACR40,MCR40200304

main77175-33020iMCR30200205-200304

main77175-47010iACR30,MCR30199912-200204

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-28200iACR30,40,MCR30,40199912-200010

main77201-28210iACR30,40,MCR30,40200010-200111

main77201-28211iACR30,40,MCR30,40200111-200304

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-28020iACR30,MCR30199912-200107

main77209-28021iACR30,MCR30200304

main77209-28030iACR40,MCR40200304

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-28030iACR30,40,MCR30,40200304

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-28070iACR30,40,MCR30,40199912-200304

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-28080iACR30,40,MCR30,40199912-200304

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-28030iACR30,40,MCR30,40199912-200304

77222BTUBE, FUEL TANK BREATHER, NO.2

main77222-28060iACR30,40,MCR30,40199912-200304

77229DSUPPORT, FUEL TANK FILLER PIPE, NO.4

main77229-28050iACR30,40,MCR30,40199912-200304

77241WCLIP, TUBE JOINT

main77241-33011iACR30,40,MCR30,40199912-200304

77259AHOSE, FUEL(FOR BREATHER TUBE)

main77259-28060iACR30,40,MCR30,40199912-200304

77269AHOSE, FUEL TANK BREATHER

main77269-28010iACR30,40,MCR30,40199912-200304

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-28030iACR30,40,MCR30,40199912-200304

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-28010iACR30,40,MCR30,40199912-200304

77286DCLAMP, FUEL TUBE, NO.2

main77286-28020iACR30,40,MCR30,40199912-200304

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-28020iACR30,40,MCR30,40199912-200304

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-28040iACR30,40,MCR30,40199912-200304

77310ACAP ASSY, FUEL TANK

main77310-48010iACR30,40,MCR30,40199912-200304

77316GASKET, FUEL TANK CAP

main77316-16010iACR30,40,MCR30,40199912-200304

77350LID ASSY, FUEL FILLER OPENING

main77350-28010iACR30,40,MCR30,40199912-200304

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-30060iACR30,40,MCR30,40200101-200304

main77358-48010iACR30,40,MCR30,40199912-200012

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iACR30,40,MCR30,40199912-200304

77391RING, FUEL INLET BOX

main77391-28010iACR30,40,MCR30,40199912-200304

77391ARING, FUEL INLET BOX

main77391-28020iACR30,40,MCR30,40199912-200304

77419HOSE, FUEL, NO.3

main77419-28010iACR30,40,MCR30,40199912-200304

77452SUPPORT, FUEL INLET HOSE PROTECTOR, NO.1

main77452-28010iACR30,40,MCR30,40199912-200304

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-28080iACR30,MCR30200304

main77601-28090iACR40,MCR40199912-200304

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-28010iACR30,MCR30200304

main77602-28020iACR40,MCR40200304

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77606-28040iACR40,MCR40200304

main77631-28010iACR30,MCR30200304

77641APROTECTOR, FUEL TANK, NO.1

main77641-28080iACR30,MCR30199912-200304

main77641-28090iACR40,MCR40199912-200304

77651ACUSHION, FUEL TANK, NO.1

main77651-44010×2iACR30,40,MCR30,40199912-200304

77652CUSHION, FUEL TANK, NO.1

main77653-26040×2iACR30,40,MCR30,40199912-200107

77652ACUSHION, FUEL TANK, NO.2

main77652-28020×2iACR30,40,MCR30,40199912-200304

77653ACUSHION, FUEL TANK, NO.3

main77653-60060iACR30,40,MCR30,40199912-200304

77682SEAT, FUEL TANK BAND, LH

main77682-16010×2iACR30,40,MCR30,40199912-200304

77785HARNESS, FUEL PUMP

main77785-52020iACR30,40,MCR30,40199912-200304

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

4646726050CLAMP, CABLE

main46467-26050

9011906398

main90119-06398

9011906526

main90119-06526

9011906651

main90119-06651

9011906690

main90119-06690

9011910814

main90119-10814

9015950343

main90159-50343

9017910087

main90179-10087

9026905067

main90269-05067

9026906013

main90269-06013

9046046003

main90460-46003

9046400745

main90464-00745

9046707166

main90467-07166

9046709031

main90467-09031

9048030211

main90480-30211

9095904001

main90959-04001

9155380612

main91553-80612

91553A0610

main91553-A0610

9613251100

main96132-51100

66 parts on this diagram · 3 diagrams in section
