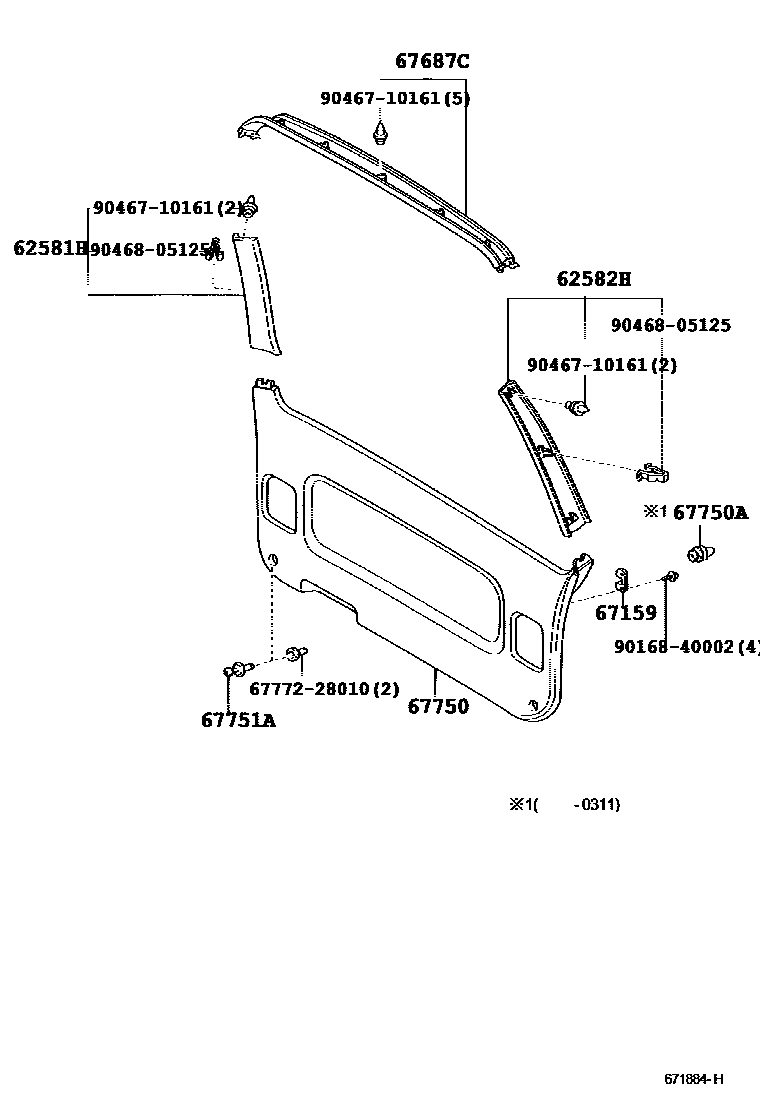

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

62581HGARNISH, REAR WINDOW SIDE, RH

main62581-28040-A0iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

IVORY,TRIM0#

sub62581-28040

main62581-28040-A0iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),IVORY,TRIM0#

sub62581-28040

main62581-28040-B0iACR30,40,MCR30,40..G,J,X199912-200304

LT. BLUISH GRAY,TRIM11

sub62581-28040

main62581-28040-B0iACR30,40,MCR30,40..G,J,X199912-200304

LT. BLUISH GRAY,TRIM1#

sub62581-28040

main62581-28040-B1iACR30,40,MCR30,40..G,J,X199912-200304

MD.CHARCOAL,TRIM12

sub62581-28040

main62581-28040-B1iACR30,40,MCR30,40..AERAS200204-200304

sub62581-28040

main62581-28040-B2iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

LT.GRAY,TRIM1#

sub62581-28040

62582HGARNISH, REAR WINDOW SIDE, LH

main62582-28050-A0iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),IVORY,TRIM0#

sub62582-28050

main62582-28050-A0iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

IVORY,TRIM0#

sub62582-28050

main62582-28050-B0iACR30,40,MCR30,40..AERAS199912-200304

LT. BLUISH GRAY,TRIM1#

sub62582-28050

main62582-28050-B0iACR30,40,MCR30,40..G,J,X199912-200304

LT. BLUISH GRAY,TRIM11

sub62582-28050

main62582-28050-B1iACR30,40,MCR30,40..AERAS200204-200304

sub62582-28050

main62582-28050-B1iACR30,40,MCR30,40..G,J,X199912-200304

MD.CHARCOAL,TRIM12

sub62582-28050

main62582-28050-B2iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

LT.GRAY,TRIM1#

sub62582-28050

67159RETAINER, BACK DOOR TRIM

main67159-28010iACR30,40,MCR30,40199912-200601

67687CGARNISH, BACK WINDOW

main67687-28060-A0iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),IVORY,TRIM0#

sub67687-28060

main67687-28060-A0iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

IVORY,TRIM0#

sub67687-28060

main67687-28060-B0iACR30,40,MCR30,40..AERAS199912-200304

LT. BLUISH GRAY,TRIM11

sub67687-28060

main67687-28060-B0iACR30,40,MCR30,40..AERAS199912-200304

LT. BLUISH GRAY,TRIM1#

sub67687-28060

main67687-28060-B1iACR30,40,MCR30,40..G,J,X199912-200304

MD.CHARCOAL,TRIM12

sub67687-28060

main67687-28060-B1iACR30,40,MCR30,40..AERAS200204-200304

sub67687-28060

main67687-28060-B2iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

LT.GRAY,TRIM1#

sub67687-28060

67750BOARD ASSY, BACK DOOR TRIM

main67750-28080-A0iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

IVORY,TRIM0#

sub67750-28080

main67750-28080-A0iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),IVORY,TRIM0#

sub67750-28080

main67750-28080-B0iACR30,40,MCR30,40..G,J,X199912-200304

LT. BLUISH GRAY,TRIM1#

sub67750-28080

main67750-28080-B0iACR30,40,MCR30,40..G,J,X199912-200304

LT. BLUISH GRAY,TRIM11

sub67750-28080

main67750-28080-B1iACR30,40,MCR30,40..G,J,X199912-200304

MD.CHARCOAL,TRIM12

sub67750-28080

main67750-28080-B1iACR30,40,MCR30,40..AERAS200204-200304

sub67750-28080

main67750-28080-B2iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

MD.GRAY,TRIM1#

sub67750-28080

67750ACLIP(FOR BACK DOOR TRIM)

main90467-10161iACR30,40,MCR30,40200311-200601

main90467-10167iACR30,40,MCR30,40199912-200311

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-08157-B2iACR30,40,MCR30,40..AERAS199912-200103

LT.BLUISH GRAY,TRIM11

sub90467-08157

main90467-08157-B2iACR30,40,MCR30,40..AERAS199912-200103

LT.BLUISH GRAY,TRIM1#

sub90467-08157

main90467-08157-B4iACR30,40,MCR30,40..G,J,X199912-200103

MD.CHARCOAL,TRIM12

sub90467-08157

main90467-08209-A1iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

IVORY,TRIM0#

main90467-08209-A1iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),IVORY,TRIM0#

main90467-08209-B2iACR30,40,MCR30,40..AERAS200104-200304

LT. BLUISH GRAY,TRIM11

main90467-08209-B2iACR30,40,MCR30,40..AERAS200104-200304

LT. BLUISH GRAY,TRIM1#

main90467-08209-B3iACR30,40,MCR30,40..AERAS200204-200304

main90467-08209-B3iACR30,40,MCR30,40..G,J,X200104-200304

MD.CHARCOAL,TRIM12

main90467-08209-B4iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

MD.GRAY,TRIM1#

6777228010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-28010

9016840002

main90168-40002

9046710161

main90467-10161

9046805125

main90468-05125

11 parts on this diagram · 4 diagrams in section
