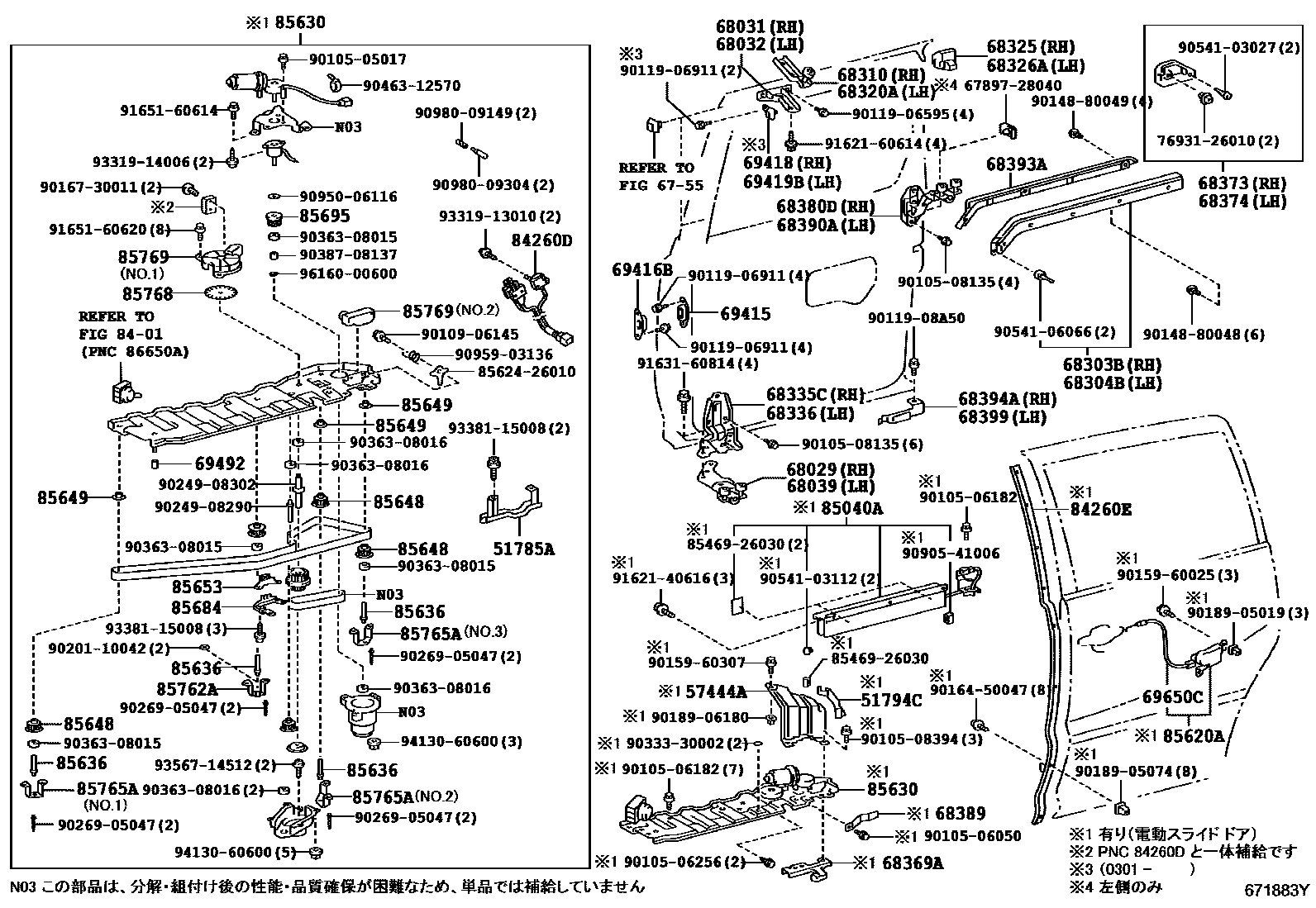

SLIDE ROLLER & RAIL

0001 1 0002 1

51785AREINFORCEMENT, REAR STEP PANEL

main51785-28030iACR30,40,MCR30,40..AERAS,AERSS,G,X200501

main51785-28080iACR30,40,MCR30,40..AERAS,AERSS,G,X200503

51794CBRACKET, SIDE STEP, NO.1 LH

main51794-28010iACR30,40,MCR30,40199912-200304

57444ASUPPORT, SIDE STEP, REAR LH

main57444-28010iACR30,40,MCR30,40199912-200304

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

68029BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER

main68029-28030iACR30,40,MCR30,40199912-200304

main68029-28050iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

68031ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, RH

main68031-28010iACR30,40,MCR30,40199912-200301

main68031-28011iACR30,40,MCR30,40200301-200304

68032ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, LH

main68032-28010iACR30,40,MCR30,40199912-200301

main68032-28011iACR30,40,MCR30,40200301-200304

68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main68039-28040iACR30,40,MCR30,40199912-200304

main68039-28050iACR30,40,MCR30,40199912-200304

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-28050iACR30,40,MCR30,40199912-200304

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-28080iACR30,40,MCR30,40199912-200304

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68301-28020iACR30,40,MCR30,40199912-200301

main68301-28021iACR30,40,MCR30,40200301-200304

68320AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68302-28010iACR30,40,MCR30,40199912-200301

main68302-28011iACR30,40,MCR30,40200301-200304

68325CUSHION, SLIDE DOOR UPPER RAIL, RH

main68325-28010iACR30,40,MCR30,40199912-200304

main68325-28011iACR30,40,MCR30,40200308

68326ACUSHION, SLIDE DOOR UPPER RAIL, LH

main68326-28010iACR30,40,MCR30,40199912-200304

main68326-28011iACR30,40,MCR30,40200308

68335CARM, SLIDE DOOR LOWER ROLLER, RH

main68335-28020iACR30,40,MCR30,40200304

main68335-28040iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

68336ARM, SLIDE DOOR LOWER ROLLER, LH

main68336-28040iACR30,40,MCR30,40199912-200304

main68336-28050iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

68369ABRACKET, SLIDE DOOR LOWER RAIL, LH

main68369-28040iACR30,40,MCR30,40199912-200304

68373MOULDING, SLIDE RAIL END, RH

main68373-28040iACR30,40,MCR30,40199912-200304

68374MOULDING, SLIDE RAIL END, LH

main68374-28100iACR30,40,MCR30,40199912-200304

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-28010iACR30,40,MCR30,40200304

68389SPRING, SLIDE DOOR CATCH, LH

main68389-26010iACR30,40,MCR30,40199912-200304

main68389-26040iACR30,40,MCR30,40..AERAS,AERSS,G,X200505-200601

main68389-28050iACR30,40,MCR30,40..AERAS,AERSS,G,X200311-200505

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-28020iACR30,40,MCR30,40199912-200304

68393APROTECTOR, SLIDE DOOR CENTER RAIL

main61057-28010iACR30,40,MCR30,40199912-200304

main61067-28020iACR30,40,MCR30,40200304

68394APLATE, SLIDE DOOR LOWER RAIL, RH

main68394-28010iACR30,40,MCR30,40199912-200304

68399PLATE, SLIDE DOOR LOWER RAIL, LH

main68399-28020iACR30,40,MCR30,40200304

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69405-28010×2iACR30,40,MCR30,40200109-200212

main69415-26010×2iACR30,40,MCR30,40199912-200109

main69415-28030×2iACR30,40,MCR30,40200301-200304

69416BSTOPPER, SLIDE DOOR DOWN MALE

main69416-26010×2iACR30,40,MCR30,40199912-200212

main69416-28050×2iACR30,40,MCR30,40200301-200304

main69416-28110×2iACR30,40,MCR30,40200510

69418STOP, SLIDE DOOR OPEN

main69418-28050iACR30,40,MCR30,40200301-200304

69419BSTOP, SLIDE DOOR OPEN, LH

main69419-28030iACR30,40,MCR30,40200301-200304

69492STOPPER, SLIDE DOOR HALF OPEN

main69492-28040iACR30,40,MCR30,40199912-200304

69650CCABLE ASSY, SLIDE DOOR LOCK CONTROL

main69650-28050iACR30,40,MCR30,40199912-200304

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84260DSENSOR ASSY, POWER SLIDE DOOR

main84260-28030iACR30,40,MCR30,40199912-200304

84260ESENSOR ASSY, POWER SLIDE DOOR

main84260-28020iACR30,40,MCR30,40199912-200304

85040ARAIL ASSY, POWER SLIDE DOOR HARNESS

main85040-28040iACR30,40,MCR30,40199912-200304

85620AMOTOR ASSY, SLIDE DOOR LOCK RELEASE, LH

main85620-28010iACR30,40,MCR30,40199912-200304

main85620-28040iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

85630MOTOR ASSY, SLIDE DOOR

main85005-28030iACR30,40,MCR30,40..AERAS,AERSS,G,X200503

main85006-28010iACR30,40,MCR30,40199912-200304

main85006-28030iACR30,40,MCR30,40..AERAS,AERSS,G,X200304-200502

main85006-28040iACR30,40,MCR30,40..AERAS,AERSS,G,X200501

85636SHAFT, DRIVE ROLLER PULLEY

main85636-28010×4iACR30,40,MCR30,40199912-200304

85648PULLEY, DRIVE BELT

main85648-26020×3iACR30,40,MCR30,40199912-200304

85649FLANGE, PULLEY(FOR SLIDE DOOR MOTOR)

main85649-26020×3iACR30,40,MCR30,40199912-200304

85653PLATE, DRIVE BELT

main85653-28010iACR30,40,MCR30,40199912-200304

main85653-28020iACR30,40,MCR30,40..AERAS,AERSS,G,X200304-200502

85684BRACKET, POWER SLIDE DOOR MOTOR ARM

main85684-28010iACR30,40,MCR30,40199912-200304

main85684-28020iACR30,40,MCR30,40..AERAS,AERSS,G,X200503

85695PULLEY, CLUTCH, NO.1

main85695-26020iACR30,40,MCR30,40199912-200304

85762ABRACKET, BELT IDLER, NO.2

main85762-26010iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

85765ABRACKET, DRIVE BELT PULLEY

main85765-28010iACR30,40,MCR30,40..AERAS,AERSS,G,X200501

main85765-28020iACR30,40,MCR30,40..AERAS,AERSS,G,X200501

main85765-28030iACR30,40,MCR30,40..AERAS,AERSS,G,X200304-200412

main85765-28040iACR30,40,MCR30,40..AERAS,AERSS,G,X200304-200502

main85765-28050iACR30,40,MCR30,40..AERAS,AERSS,G,X200304-200502

main85765-28060iACR30,40,MCR30,40..AERAS,AERSS,G,X200304-200502

85768PLATE, SLIDE DOOR MOTOR CONTROL

main85768-26010iACR30,40,MCR30,40199912-200304

85769COVER, SLIDE DOOR MOTOR CONTROL PLATE

main85769-26020iACR30,40,MCR30,40..AERAS,AERSS,G,X200304-200601

main85769-28010iACR30,40,MCR30,40..AERAS,AERSS,G,X200304-200412

main85769-28020iACR30,40,MCR30,40..AERAS,AERSS,G,X200304-200601

main85769-28030iACR30,40,MCR30,40..AERAS,AERSS,G,X200503-200601

6789728040SPACER, FRONT DOOR WEATHERSTRIP, RH

main67897-28040

7693126010RETAINER, SIDE MUDGUARD, NO.3

main76931-26010

8546926030SILENCER, POWER SLIDE DOOR HARNESS GUIDE, NO.1

main85469-26030

8562426010LEVER, AUTOMATIC DOOR REGULATOR, NO.1

main85624-26010

9010505017

main90105-05017

9010506050

main90105-06050

9010506182

main90105-06182

9010506256

main90105-06256

9010508135

main90105-08135

9010508394

main90105-08394

9010906145

main90109-06145

9011906595

main90119-06595

9011906911

main90119-06911

9011908A50

main90119-08A50

9014880048

main90148-80048

9014880049

main90148-80049

9015960025

main90159-60025

9015960307

main90159-60307

9016450047

main90164-50047

9016730011

main90167-30011

9018905019

main90189-05019

9018905074

main90189-05074

9018906180

main90189-06180

9020110042

main90201-10042

9024908290

main90249-08290

9024908302

main90249-08302

9026905047

main90269-05047

9033330002

main90333-30002

9036308015

main90363-08015

9036308016

main90363-08016

9038708137

main90387-08137

9046312570

main90463-12570

9054103027

main90541-03027

9054103112

main90541-03112

9054106066

main90541-06066

9090541006

main90905-41006

9095006116

main90950-06116

9095903136

main90959-03136

9098009149

main90980-09149

9098009304

main90980-09304

9162140616

main91621-40616

9162160614

main91621-60614

9163160814

main91631-60814

9165160614

main91651-60614

9165160620

main91651-60620

9331913010

main93319-13010

9331914006

main93319-14006

9338115008

main93381-15008

9356714512

main93567-14512

9413060600

main94130-60600

9616000600

main96160-00600

98 parts on this diagram · 2 diagrams in section
