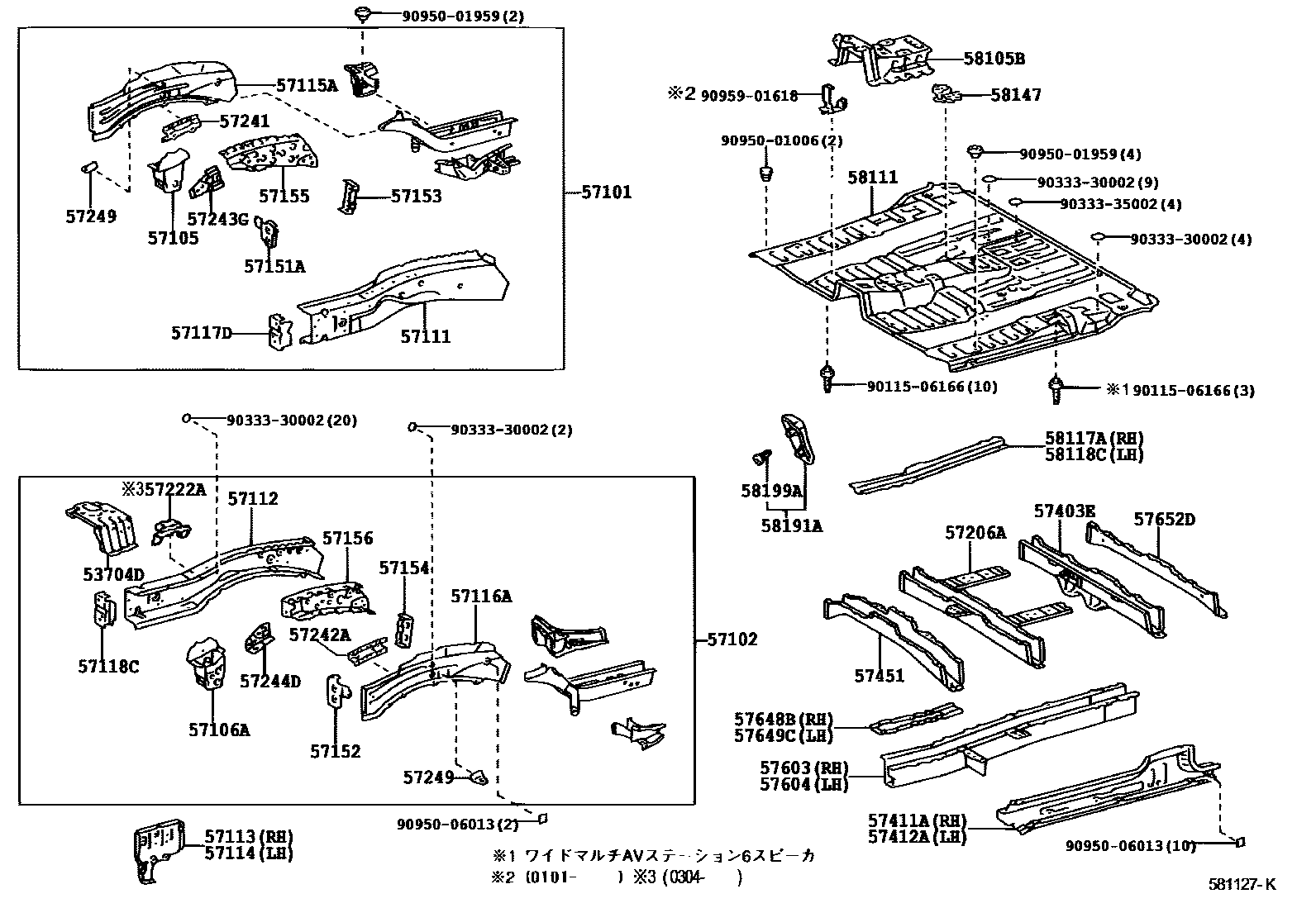

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-28010iACR30,40200304-200504

main53704-28020iMCR30,40200304-200504

main53704-28030iACR30,40200002-200304

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-28640iACR30,40,MCR30,40199912-200304

main57101-28850iACR30,40,MCR30,40200304

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-28630iMCR30,40199912-200304

main57102-28660iACR30,40200002-200304

main57102-28670iACR30,40200002-200304

main57102-28710iMCR30,40200304

main57102-28730iACR30,40200304

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-28120iACR30,40,MCR30,40199912-200304

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-28110iACR30,40200002-200209

main57106-28120iMCR30,40199912-200209

57111MEMBER, FRONT SIDE, RH

main57111-28230iACR30,40,MCR30,40199912-200304

57112MEMBER, FRONT SIDE, LH

main57112-28260iACR30,40,MCR30,40199912-200304

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-28080iACR30,40,MCR30,40199912-200304

main57113-28120iACR30,40,MCR30,40200304

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-28060iACR30,40,MCR30,40..08S;ACR30,40,MCR30,40..07S..G199912-200105

main57114-28070iACR30,40,MCR30,40..07S..AERAS200104-200105

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-28090iACR30,40,MCR30,40200304

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-28090iACR30,40,MCR30,40199912-200304

57117DRETAINER, FRONT BUMPER ARM, RH

main57117-28060iACR30,40,MCR30,40199912-200304

main57117-28080iACR30,40,MCR30,40200304

57118CRETAINER, FRONT BUMPER ARM, LH

main57118-28050iACR30,40,MCR30,40199912-200304

main57118-28060iACR30,40,MCR30,40200304

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-28120iACR30,40,MCR30,40199912-200304

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-28120iACR30,40,MCR30,40199912-200304

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57153-28080iACR30,40,MCR30,40199912-200304

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57154-28080iACR30,40,MCR30,40199912-200304

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-28070iACR30,40,MCR30,40199912-200304

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-28080iACR30,40,MCR30,40199912-200304

57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2

main57206-28040iACR30,MCR30..08S;ACR30,MCR30..07S..G199912-200105

main57206-28050iACR40,MCR40200304

main57206-28100iACR30,MCR30..07S..AERAS200104-200105

main57206-28110iACR30,MCR30..07S..G200104-200112

main57206-28120iMCR40..07S..G200304

57222ABRACKET, FRONT SIDE MEMBER, LH

main57222-28040iACR30,40,MCR30,40200304

57241REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH

main57241-28080iACR30,40,MCR30,40199912

57242AREINFORCEMENT, FRONT SIDE MEMBER, NO.5 LH

main57242-28050iACR30,40,MCR30,40199912

57243GREINFORCEMENT, FRONT SIDE MEMBER, NO.6 RH

main57243-28070iACR30,40,MCR30,40199912-200304

57244DREINFORCEMENT, FRONT SIDE MEMBER, NO.6 LH

main57244-28040iACR30,40,MCR30,40199912-200304

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-10040iACR30,40,MCR30,40200304

57403EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57403-28050iACR30,MCR30..J,X;ACR30,MCR30..07S..G199912-200105

main57403-28060iACR40,MCR40..J,X;ACR40,MCR40..07S..G199912-200105

main57403-28080iACR30,MCR30..08S..(AERAS,G,X)199912-200105

main57403-28090iACR40,MCR40..08S..(AERAS,G,X)199912-200105

main57403-28120iACR30,MCR30..07S..G200104-200105

main57403-28130iACR40,MCR40..07S..G200104-200105

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-28010iACR30,40,MCR30,40199912-200304

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-28010iACR30,40,MCR30,40200304

57451MEMBER, FRONT FLOOR CROSS

main57408-28040iACR30,40,MCR30,40..08S;ACR30,40,MCR30,40..07S..G199912-200105

main57408-28080iACR30,40,MCR30,40..07S..AERAS200104-200105

main57408-28081iACR30,40,MCR30,40200304

main57408-28090iACR30,40,MCR30,40..07S..G200104-200112

main57408-28091iMCR40..07S..G200304

57603MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57603-28010iACR30,40,MCR30,40200304

main57603-28040iMCR40..07S..G200304

57604MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57604-28010iACR30,40,MCR30,40200112-200304

main57604-28040iACR30,40,MCR30,40..J,X;ACR30,40,MCR30,40..07S..G199912-200304

57648BREINFORCE, REAR FLOOR SIDE MEMBER, REAR UPPER RH

main57648-28030iACR30,40,MCR30,40199912-200304

57649CREINFORCE, REAR FLOOR SIDE MEMBER, REAR UPPER LH

main57649-28020iACR30,40,MCR30,40199912-200304

57652DMEMBER, REAR FLOOR CROSS, NO.1

main57652-28100iACR30,40,MCR30,40200304

main57652-28110iACR30,40,MCR30,40..J,X;ACR30,40,MCR30,40..07S..G199912-200304

main57652-28120iACR30,40,MCR30,40..07S..G200104-200112

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-28010iACR30,40,MCR30,40200304

58111PAN, FRONT FLOOR

main58111-28670iACR30,40,MCR30,40199912-200304

main58111-28730iMCR40..07S..G200112-200304

main58111-28740iACR30,40200304

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-28030iACR30,40,MCR30,40199912-200304

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-28050iACR30,40,MCR30,40199912-200304

58147BRACKET, FRONT FLOOR HOUSING, FRONT LH

main58147-28010iACR40,MCR30,40199912-200304

58191AFOOTREST, FRONT FLOOR, RH

main58191-28040iACR30,40,MCR30,40199912-200304

58199ACLIP, FOOTREST, NO.2

main58199-20050×2iACR30,40,MCR30,40200304

9011506166

main90115-06166

9033330002

main90333-30002

9033335002

main90333-35002

9095001006

main90950-01006

9095001959

main90950-01959

9095006013

main90950-06013

9095901618

main90959-01618

49 parts on this diagram · 1 diagram in section
