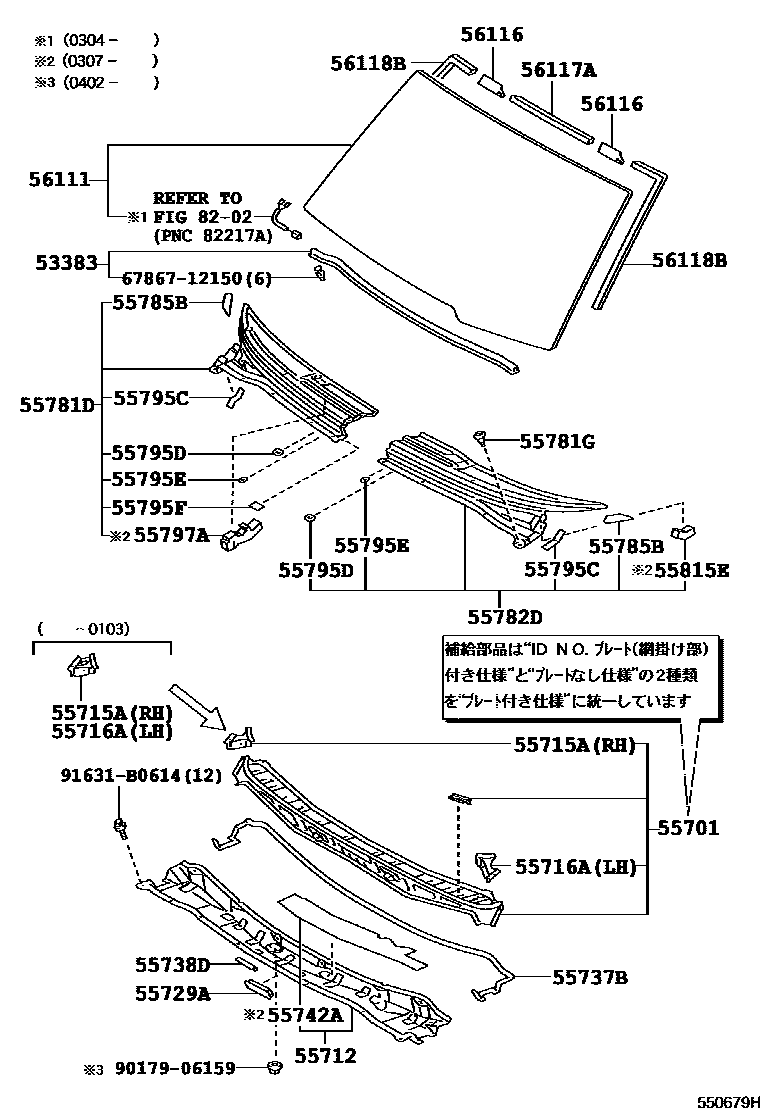

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-28030iACR30,40,MCR30,40200304

55701PANEL SUB-ASSY, COWL

main55700-28010iACR30,40,MCR30,40199912-200007

main55700-28020iACR30,40,MCR30,40200007-200304

55712PANEL, COWL TOP OUTSIDE, FRONT

main55720-28010iACR30,40,MCR30,40199912-200304

main55720-28080iACR30,40,MCR30,40200304

55715ABRACE, COWL TOP TO APRON, RH

main55715-28010iACR30,40,MCR30,40199912-200103

main55715-28020iACR30,40,MCR30,40200103-200304

55716ABRACE, COWL TOP TO APRON, LH

main55716-28050iACR30,40,MCR30,40199912-200103

main55716-28060iACR30,40,MCR30,40200103-200304

55729ACOVER, COWL PANEL HOLE

main55729-28010iACR30,40,MCR30,40199912-200304

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-28010iACR30,40,MCR30,40200304

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-28020iACR30,40,MCR30,40200304

55742ASHEET, COWL TOP INSULATOR

main55742-28050iACR30,40,MCR30,40200307

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-28070iACR30,40,MCR30,40199912-200105

main55708-28080iACR30,40,MCR30,40199912-200105

main55708-28140iACR30,40,MCR30,40200105-200304

main55708-28150iACR30,40,MCR30,40200304

55781GCLIP, COWL TOP VENTILATOR LOUVER

main55799-28020×8iACR30,40,MCR30,40200308

main90467-07197×8iACR30,40,MCR30,40199912-200304

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-28010iACR30,40,MCR30,40199912-200105

main55709-28020iACR30,40,MCR30,40199912-200105

main55709-28050iACR30,40,MCR30,40200105-200304

main55709-28060iACR30,40,MCR30,40200105-200304

55785BSHEET, COWL TOP VENTILATOR LOUVER

main55785-28030×2iACR30,40,MCR30,40200304

55795CSEAL, WIPER MOTOR SERVICE HOLE

main55795-28010iACR30,40,MCR30,40199912-200304

main55795-28050iACR30,40,MCR30,40199912-200304

55795DSEAL, WIPER MOTOR SERVICE HOLE

main55795-28020×12iACR30,40,MCR30,40200105-200304

55795ESEAL, WIPER MOTOR SERVICE HOLE

main55795-28030×2iACR30,40,MCR30,40199912-200304

55795FSEAL, WIPER MOTOR SERVICE HOLE

main55795-28040iACR30,40,MCR30,40199912-200304

55797ASEAL, COWL WATER EXTRACT

main55797-28010iACR30,40,MCR30,40200307

55815ESEAL, FRONT VENTILATOR, NO.1

main55815-28010iACR30,40,MCR30,40200307

56111GLASS, WINDSHIELD

main56111-28310iACR30,40,MCR30,40199912-200301

main56111-28311iACR30,40,MCR30,40..AERAS,AERSS,J,X200304

main56111-28420iACR30,40,MCR30,40..AERAS,AERSS,J,X200304

main56111-28430iACR30,40,MCR30,40..AERAS200409

main56111-28440iACR30,40,MCR30,40..AERAS200409

56116SPACER, WINDSHIELD GLASS

main56116-35050×2iACR30,40,MCR30,40199912-200304

56117ADAM, WINDOW GLASS ADHESIVE

main56118-28030iACR30,40,MCR30,40199912-200304

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-28030×2iACR30,40,MCR30,40199912-200304

8202WIRING & CLAMP

→ Go to FIG 82-02

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150

9017906159

main90179-06159

91631B0614

main91631-B0614

27 parts on this diagram · 1 diagram in section
