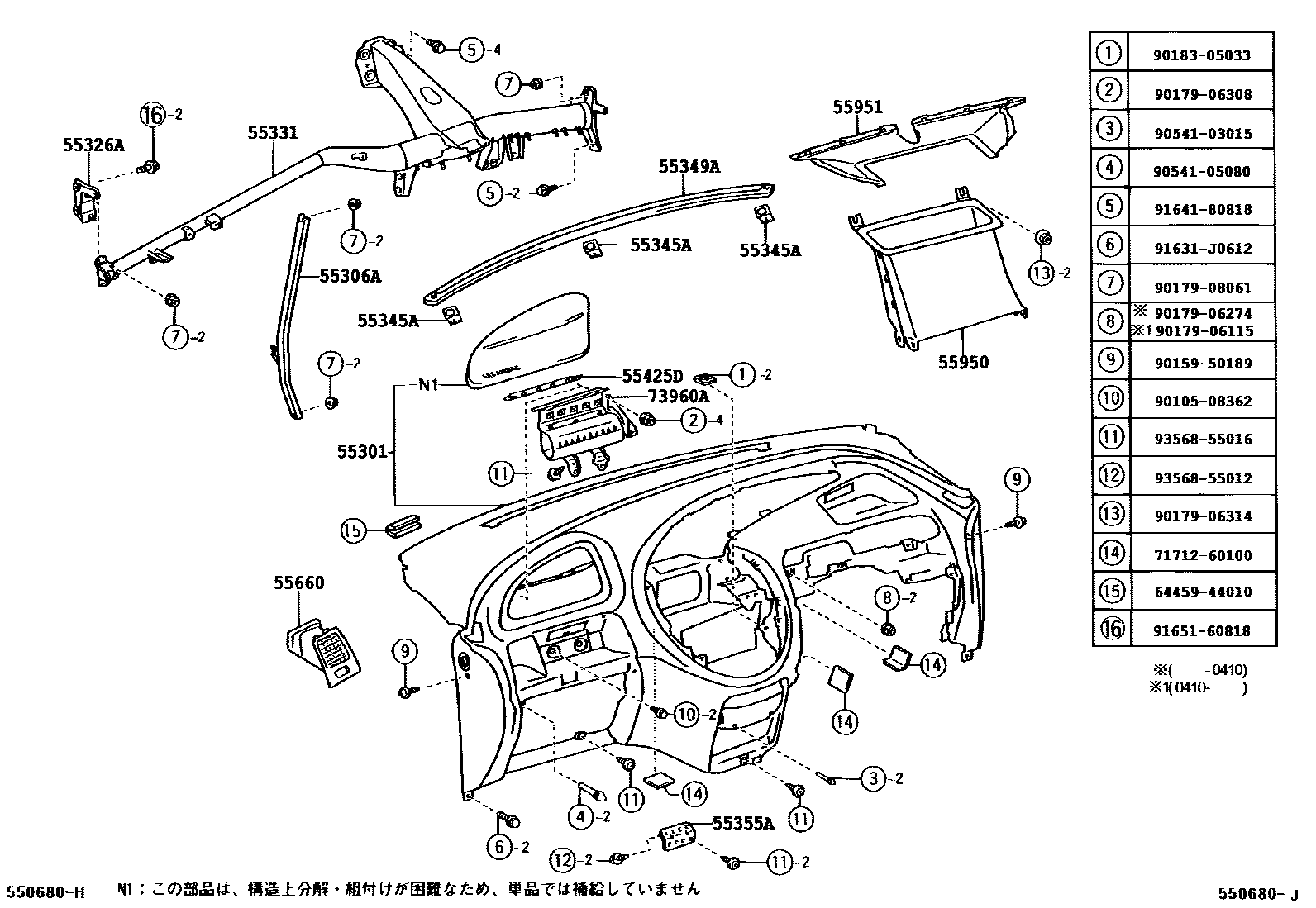

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55300-28010-B0iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X199912-200304

BLUISH GRAY,TRIM1#; BLUISH GRAY,TRIM11

main55300-28010-B1iACR30,40,MCR30,40..G,J,X199912-200304

DK.CHARCOAL,TRIM12

main55300-28010-B2iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

DK.GRAY,TRIM1#

main55300-28010-E0iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),SANDAL WOOD,TRIM0#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-28160iACR30,40,MCR30,40200304

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-28090iACR30,40,MCR30,40200304

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-28110iACR30,40,MCR30,40199912-200304

main55330-28150iACR30,40,MCR30,40200304

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-28030×3iACR30,40,MCR30,40199912-200304

55349ACUSHION, INSTRUMENT PANEL

main55349-28110iACR30,40,MCR30,40199912-200304

55355APLATE, INSTRUMENT PANEL

main55355-28050iACR30,40,MCR30,40199912-200304

55425DBASE, AIRBAG PASSENGER MOUNTING

main55425-28010iACR30,40,MCR30,40199912-200304

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-28100-B0iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X199912-200304

BLUISH GRAY,TRIM1#; BLUISH GRAY,TRIM11

main55660-28100-B1iACR30,40,MCR30,40..G,J,X199912-200304

DK.CHARCOAL,TRIM12

main55660-28170-B0iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

DK.GRAY,TRIM1#

main55660-28170-E0iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

SANDAL WOOD,TRIM0#

55950NOZZLE ASSY, DEFROSTER

main55950-28100iACR30,40,MCR30,40199912-200304

55951NOZZLE, DEFROSTER, FRONT

main55951-28050iACR30,40,MCR30,40200304

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-28030iACR30,40,MCR30,40199912-200304

main73960-28050iACR30,40,MCR30,40200304

6445944010CUSHION, LUGGAGE COMPARTMENT DOOR

main64459-44010

7171260100LEATHER, FOR SEAT, B RH

main71712-60100

9010508362

main90105-08362

9015950189

main90159-50189

9017906115

main90179-06115

9017906274

main90179-06274

9017906308

main90179-06308

9017906314

main90179-06314

9017908061

main90179-08061

9018305033

main90183-05033

9054103015

main90541-03015

9054105080

main90541-05080

91631J0612

main91631-J0612

9164180818

main91641-80818

9165160818

main91651-60818

9356855012

main93568-55012

9356855016

main93568-55016

29 parts on this diagram · 2 diagrams in section
