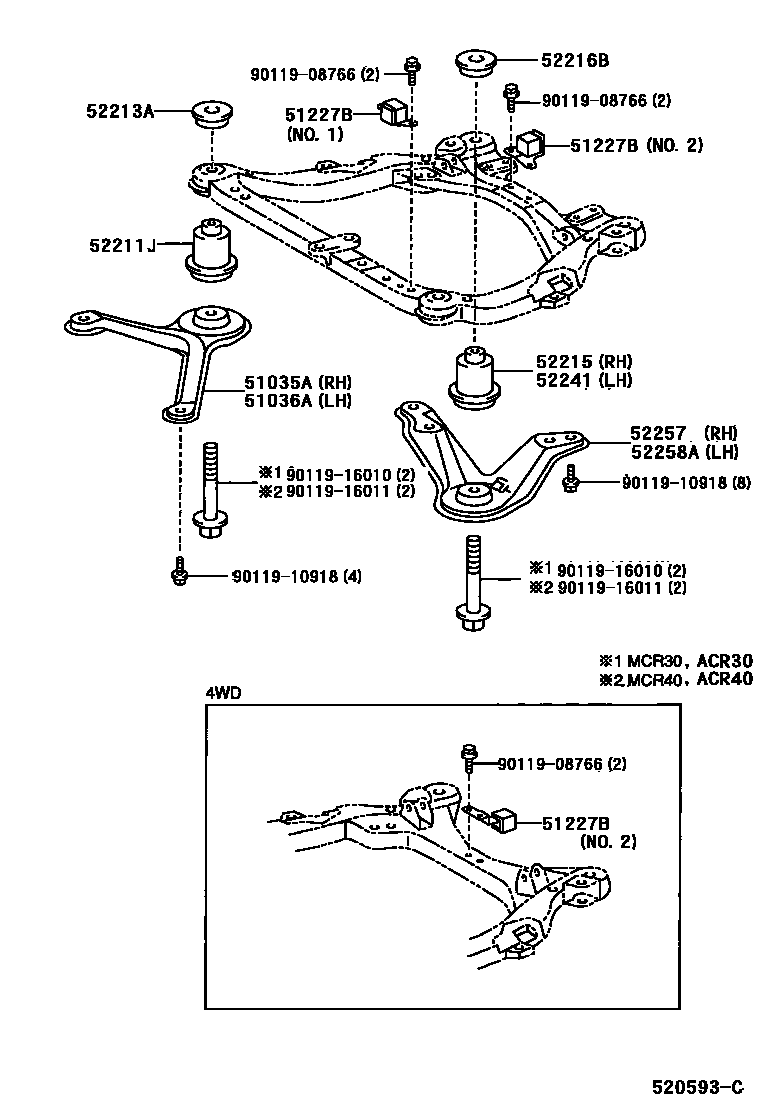

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1

51035APLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-28030iACR30,MCR30199912-200304

main51035-28040iACR40,MCR40199912-200304

51036APLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-28010iACR30,MCR30199912-200304

main51036-28020iACR40,MCR40199912-200304

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-28020iACR30200304

main51227-28020iACR30200002-200304

main51227-28030iACR40200304

main51227-28030iACR40200002-200304

main51227-28050iMCR30,40200304

main51227-28050iMCR30199912-200304

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-28010iACR30,MCR30..G,J,X199912-200304

main52211-28020iACR40,MCR40199912-200304

main52211-28030iACR30,MCR30..AERAS199912-200308

main52211-28031iACR30,MCR30200308

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-28010iACR30,MCR30..G,J,X199912-200304

main52213-28020iACR40,MCR40199912-200304

main52213-28030iACR30,MCR30..AERAS199912-200304

main52213-58010iACR40,MCR40200304

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-28010iACR30,MCR30199912-200304

main52215-28020iACR40,MCR40199912-200304

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-28010iACR30,MCR30199912-200304

main52216-28020iACR40,MCR40199912-200304

52241CUSHION, BODY MOUNT, NO.4 UPPER

main52217-28010iACR30,MCR30199912-200304

main52217-28020iACR40,MCR40199912-200304

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-28010iACR30,MCR30199912-200304

main51023-28020iACR40,MCR40199912-200304

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-28010iACR30,MCR30199912-200304

main51024-28020iACR40,MCR40199912-200304

9011908766

main90119-08766

9011910918

main90119-10918

9011916010

main90119-16010

9011916011

main90119-16011

14 parts on this diagram · 2 diagrams in section
