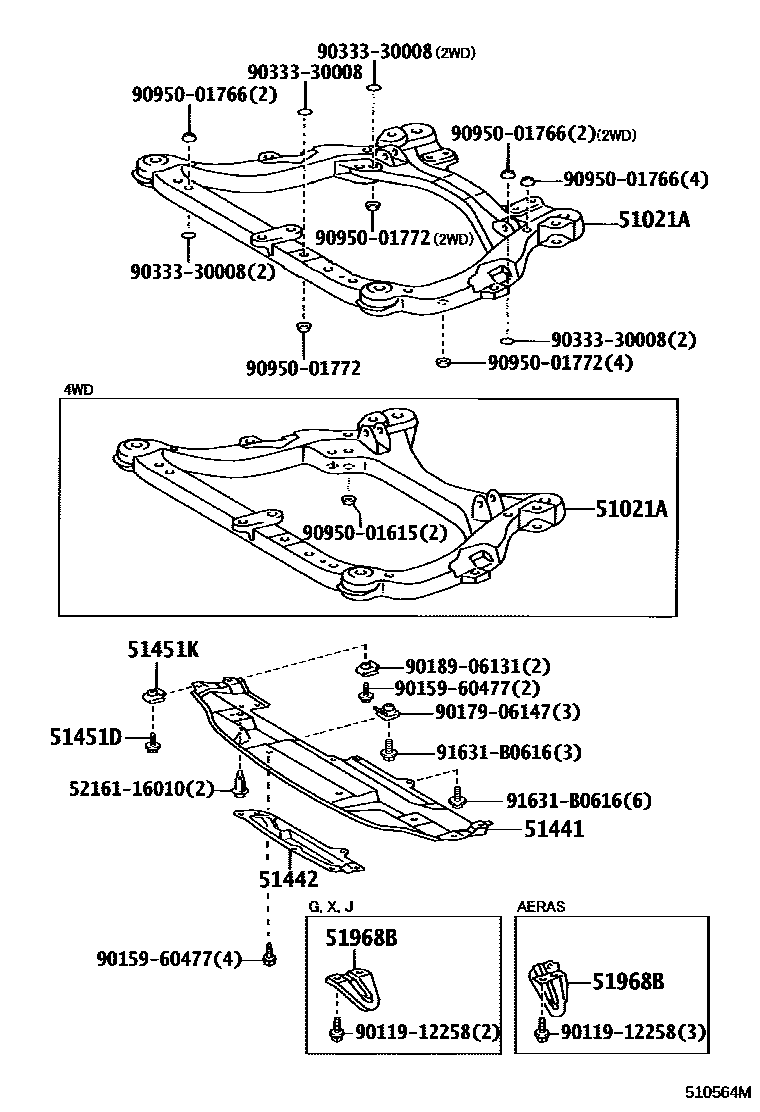

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51021AMEMBER SUB-ASSY, ENGINE FRONT SUPPORT

main51100-28010iACR30,MCR30200304

main51100-28030iACR40,MCR40199912-200205

main51100-28050iACR40,MCR40200205-200208

main51100-28051iACR40,MCR40200208-200304

51441COVER, ENGINE UNDER, NO.1

main51440-58010iACR30,40,MCR30,40200304

main51441-28120iACR30,40,MCR30,40199912-200304

51442COVER, ENGINE UNDER, NO.2

main51442-28100iACR30,40,MCR30,40200304

51451DSCREW, NO.1

main90159-60477×2iACR30,40,MCR30,40199912-200304

51451KGROMMET, SCREW, NO.1

main90189-06131×2iACR30,40,MCR30,40199912-200304

51968BHOOK, TRANSPORT, REAR LH

main51096-44010iACR30,40,MCR30,40..AERAS199912-200304

main51968-44010iACR30,40,MCR30,40..G,J,X200304

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9011912258

main90119-12258

9015960477

main90159-60477

9017906147

main90179-06147

9018906131

main90189-06131

9033330008

main90333-30008

9095001615

main90950-01615

9095001766

main90950-01766

9095001772

main90950-01772

91631B0616

main91631-B0616

16 parts on this diagram · 2 diagrams in section
