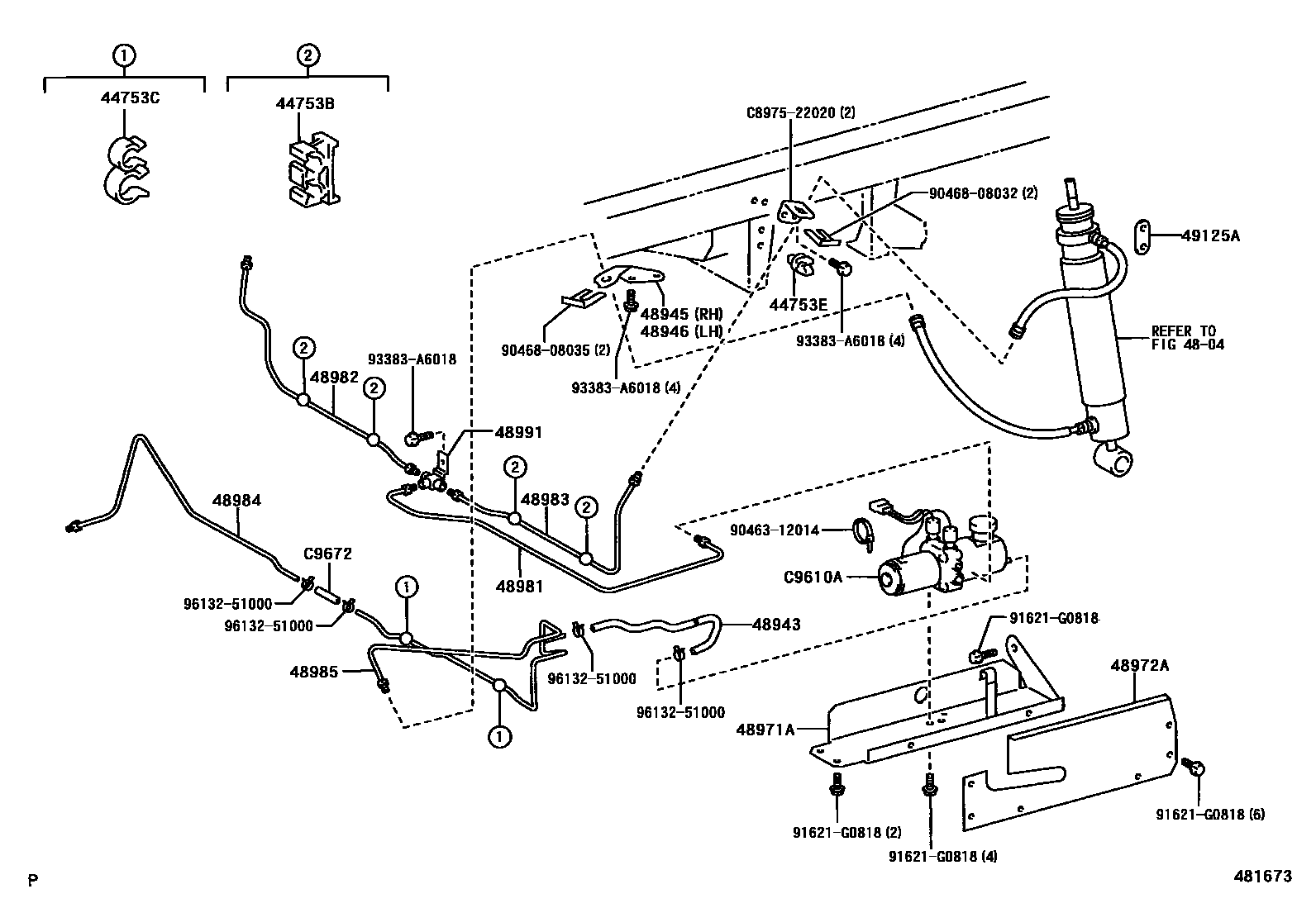

HEIGHT CONTROL (AUTO-LEVELER)

44753BCLAMP, HEIGHT CONTROL TUBE, NO.1

mainC895922020×4iACR30,MCR30..08S200304

44753CCLAMP, HEIGHT CONTROL TUBE, NO.2

mainC895922030×2iACR30,MCR30..08S200304

44753ECLAMP, HEIGHT CONTROL TUBE, NO.3

main90949-01A84×2iACR30,MCR30..08S200304

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

48943HOSE, HEIGHT CONTROL, NO.1

mainC967122110iACR30,MCR30..08S200304

48945BRACKET, HEIGHT CONTROL HOSE, RH

mainC897522010iACR30,MCR30..08S200304

48946BRACKET, HEIGHT CONTROL HOSE, LH

mainC897622010iACR30,MCR30..08S200304

48971ABRACKET, HEIGHT CONTROL PUMP, NO.1

mainC528422010iACR30,MCR30..08S200304

48972ABRACKET, HEIGHT CONTROL PUMP, NO.2

mainC528422020iACR30,MCR30..08S200304

48981TUBE, HEIGHT CONTROL, NO.1

mainC967122100iACR30,MCR30..08S200304

48982TUBE, HEIGHT CONTROL, NO.2

mainC967222020iACR30,MCR30..08S200304

48983TUBE, HEIGHT CONTROL, NO.3

mainC967322010iACR30,MCR30..08S200304

48984TUBE, HEIGHT CONTROL, NO.4

mainC967422010iACR30,MCR30..08S200304

48985TUBE, HEIGHT CONTROL, NO.5

mainC967422020iACR30,MCR30..08S200304

48991UNION, HEIGHT CONTROL TUBE, NO.1

mainC140922010iACR30,MCR30..08S200304

49125AGROMMET, REAR SUSPENSION CONTROL, NO.2

main49125-58010×2iACR30,MCR30..08S200304

C9610APUMP ASSY, KNEELING DOWN

main48060-28010iACR30,MCR30..08S200304

C9672HOSE, POWER LIFT MOTOR, NO.2

mainC967222030iACR30,MCR30..08S200304

9046312014

main90463-12014

9046808032

main90468-08032

9046808035

main90468-08035

91621G0818

main91621-G0818

93383A6018

main93383-A6018

9613251000

main96132-51000

C897522020

mainC8975-22020

25 parts on this diagram · 1 diagram in section
