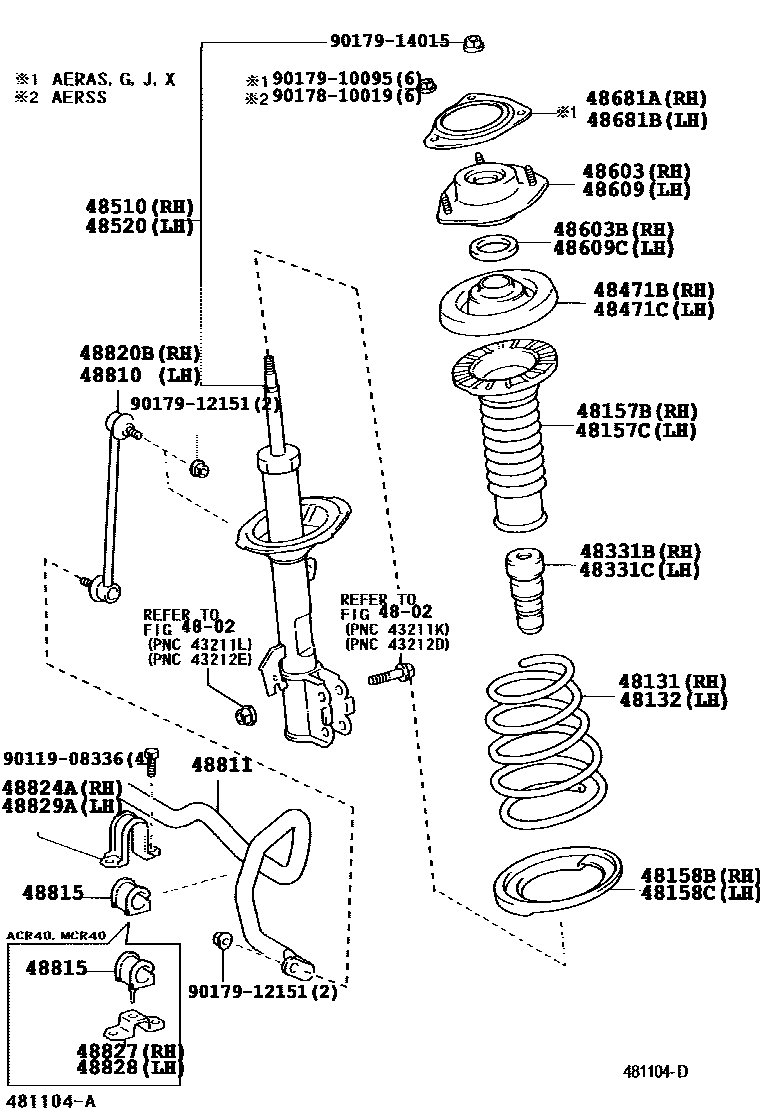

FRONT SPRING & SHOCK ABSORBER

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

48131SPRING, FRONT COIL, RH

main48131-28690iACR30..G,J,X200002-200304

main48131-28700iMCR30..G,X199912-200304

main48131-28720iACR30..AERAS200002-200304

main48131-28721iACR30..AERAS,G,J,X200408

main48131-28740iACR40..G,J,X200002-200304

main48131-28750iMCR40..G,X199912-200304

main48131-28760iACR40..AERAS200002-200304

main48131-28761iACR40..AERAS,G,J,X200408

main48131-28770iMCR30..AERAS199912-200304

main48131-28771iMCR30..AERAS,G200408

main48131-28780iMCR40..AERAS,G200304-200408

main48131-28781iMCR40..AERAS,G200408

main48131-28820iACR30..AERSS200304-200410

main48131-28821iACR30..AERSS200410

main48131-28830iMCR30..AERSS200304-200410

main48131-28831iMCR30..AERSS200410

main48131-28840iACR40..AERSS200304

main48131-28850iMCR40..AERSS200304

main48131-28870iACR30..07S..(AERAS,G); ACR30..X200304-200408

main48131-28871iACR30..07S..(AERAS,G); ACR30..X200408

main48131-28880iMCR30..07S..(AERAS,G)200304-200408

main48131-28881iMCR30..07S..(AERAS,G)200408

main48131-28890iACR40..07S..(AERAS,G); ACR40..X200304-200408

main48131-28891iACR40..07S..(AERAS,G); ACR40..X200408

main48131-28A00iMCR40..07S..(AERAS,G)200304-200408

main48131-28A01iMCR40..07S..(AERAS,G)200408

48132SPRING, FRONT COIL, LH

main48131-28690iACR30..G,J,X200002-200304

main48131-28700iMCR30..G,X199912-200304

main48131-28720iACR30..AERAS,G,J,X200304-200408

main48131-28721iACR30..AERAS,G,J,X200408

main48131-28740iACR40..G,J,X200002-200304

main48131-28750iMCR40..G,X199912-200304

main48131-28760iACR40..AERAS,G,J,X200304-200408

main48131-28761iACR40..AERAS,G,J,X200408

main48131-28770iMCR30..AERAS199912-200304

main48131-28771iMCR30..AERAS,G200408

main48131-28780iMCR40..AERAS,G200304-200408

main48131-28781iMCR40..AERAS,G200408

main48131-28820iACR30..AERSS200304-200410

main48131-28821iACR30..AERSS200410

main48131-28830iMCR30..AERSS200304-200410

main48131-28831iMCR30..AERSS200410

main48131-28840iACR40..AERSS200304

main48131-28850iMCR40..AERSS200304

main48131-28870iACR30..07S..(AERAS,G); ACR30..X200304-200408

main48131-28871iACR30..07S..(AERAS,G); ACR30..X200408

main48131-28880iMCR30..07S..(AERAS,G)200304-200408

main48131-28881iMCR30..07S..(AERAS,G)200408

main48131-28890iACR40..07S..(AERAS,G); ACR40..X200304-200408

main48131-28891iACR40..07S..(AERAS,G); ACR40..X200408

main48131-28A00iMCR40..07S..(AERAS,G)200304-200408

main48131-28A01iMCR40..07S..(AERAS,G)200408

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-28020iACR30,40,MCR30,40200304

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-28020iACR30,40,MCR30,40199912-200304

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-33020iACR30,40,MCR30,40199912-200304

main48158-48020iACR30,40,MCR30,40200304

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-33020iACR30,40,MCR30,40199912-200304

main48158-48020iACR30,40,MCR30,40200304

48331BBUMPER, FRONT SPRING, RH

main48331-28040iACR30,40,MCR30,40199912-200304

48331CBUMPER, FRONT SPRING, LH

main48331-28040iACR30,40,MCR30,40200304

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-41010iACR30,40,MCR30,40199912-200304

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-41010iACR30,40,MCR30,40199912-200304

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-29795iACR30,MCR30199912-200304

main48510-29805iACR40,MCR40199912-200003

main48510-80110iACR30,MCR30..AERAS,G,J,X200304

main48510-80111iACR40,MCR40..AERAS,G,J,X200304

main48510-80112iACR30,MCR30..AERSS200304

main48510-80113iACR40,MCR40..AERSS200304

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-29505iACR30,MCR30199912-200304

main48520-29515iACR40,MCR40199912-200304

main48520-29745iACR30,MCR30..AERAS,G,J,X200304

main48520-29755iACR40,MCR40..AERAS,G,J,X200304

main48520-29765iACR30,MCR30..AERSS200304

main48520-29775iACR40,MCR40..AERSS200304

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-28020iACR30,40,MCR30,40199912-200304

48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)

main90903-63014iACR30,40,MCR30,40199912-200304

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-28020iACR30,40,MCR30,40200304

48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)

main90903-63014iACR30,40,MCR30,40199912-200304

48681AGASKET, FRONT SUSPENSION SUPPORT, RH

main48681-28010iACR30,40,MCR30,40199912-200304

48681BGASKET, FRONT SUSPENSION SUPPORT, LH

main48681-28010iACR30,40,MCR30,40199912-200304

48810LINK ASSY, FRONT STABILIZER, LH

main48820-28050iACR30,40,MCR30,40199912-200304

main48820-28060iACR30,40,MCR30,40..AERSS200304

48811BAR, STABILIZER, FRONT

main48811-28190iACR30,MCR30..G,J,X199912-200304

main48811-28200iACR40,MCR40..G,J,X199912-200304

main48811-28210iACR30,MCR30200304

main48811-28220iACR40,MCR40..AERAS199912-200304

main48811-58010iACR40,MCR40..AERSS200304

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-28130×2iACR30,MCR30..G,J,X199912-200304

main48815-28140×2iACR40,MCR40..G,J,X199912-200304

main48815-28150×2iACR30,MCR30..AERAS199912-200304

main48815-28160×2iACR40,MCR40..AERAS199912-200304

main48815-58010×2iACR40,MCR40..AERSS200304

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-28050iACR30,40,MCR30,40199912-200304

main48820-28060iACR30,40,MCR30,40..AERSS200304

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-28180iACR40,MCR40199912-200304

main48824-28190iACR30,MCR30199912-200304

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48827-28040iACR40,MCR40199912-200304

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48827-28040iACR40,MCR40199912-200304

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-28180iACR40,MCR40199912-200304

main48824-28190iACR30,MCR30199912-200304

9011908336

main90119-08336

9017810019

main90178-10019

9017910095

main90179-10095

9017912151

main90179-12151

9017914015

main90179-14015

32 parts on this diagram · 1 diagram in section
