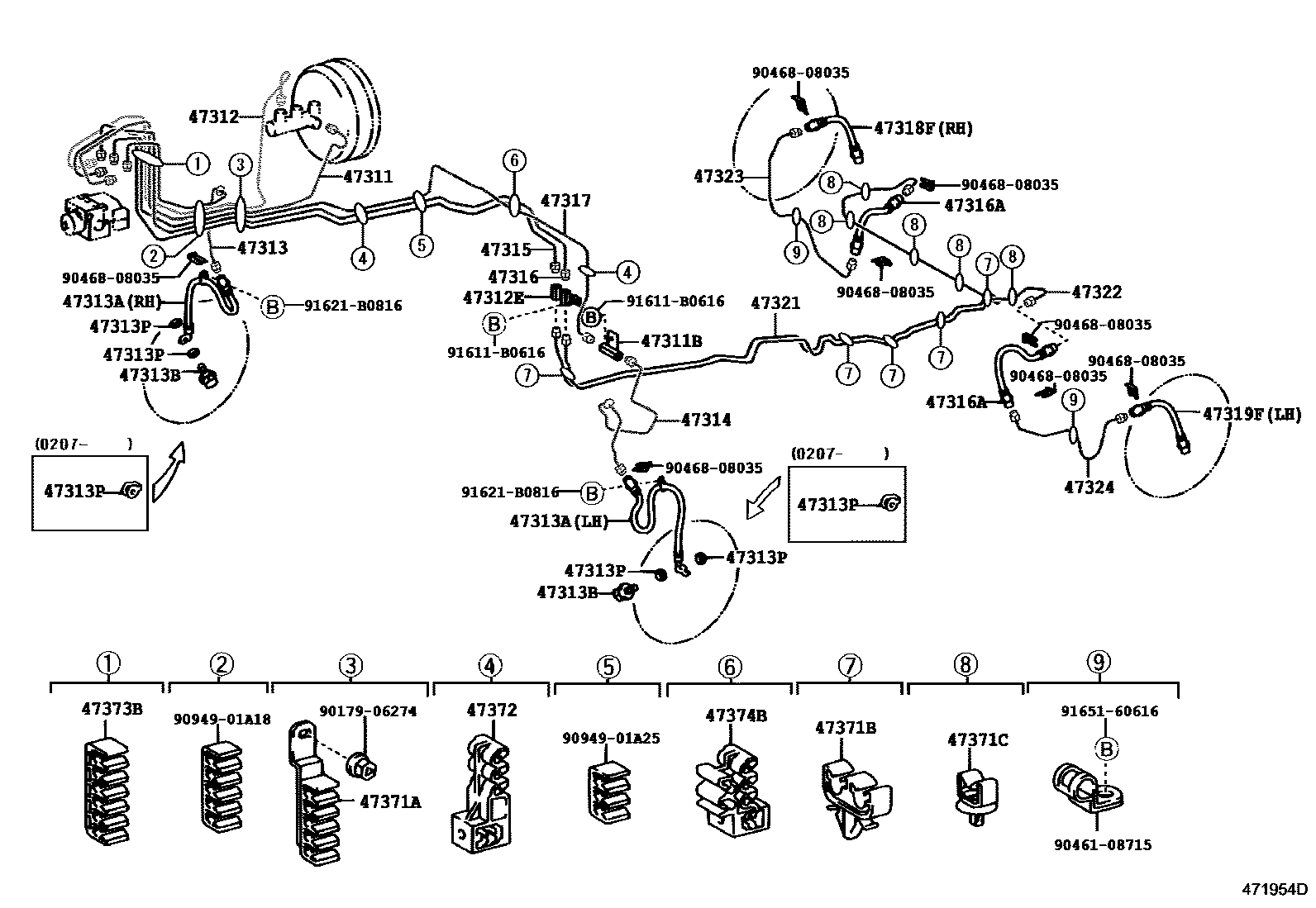

BRAKE TUBE & CLAMP

0001 1 0003 1 0004 1��(VSC) 0005 1 0006 1 0007 1��(VSC) 0008 1 0010 1 0012 1 0013 1��(VSC) 0014 1��(VSC)

47311TUBE, FRONT BRAKE, NO.1

main47311-28500iACR40,MCR40200007-200304

main47311-28510iMCR30199912-200304

main47311-28530iACR30,MCR30200007-200304

main47311-28600iACR40,MCR40200304-200601

main47311-28610iMCR30,40200304-200601

main47311-28620iACR30,MCR30200304-200601

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10144iACR30,40,MCR30,40200304-200601

47312TUBE, FRONT BRAKE, NO.2

main47312-28270iACR40,MCR40200007-200304

main47312-28280iMCR30199912-200304

main47312-28320iACR30,MCR30200007-200304

main47312-28370iACR40,MCR40200304-200601

main47312-28380iMCR30,40200304-200601

main47312-28400iACR30,MCR30200304-200601

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10158iACR30,40,MCR30,40199912-200304

47313TUBE, FRONT BRAKE, NO.3

main47313-28310iACR30,40,MCR30,40199912-200007

main47313-28320iMCR30199912-200304

main47313-28350iACR40,MCR40200304-200601

main47313-28400iACR30,MCR30200304-200601

main47313-58010iMCR30,40200304-200601

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02B96iACR30,40,MCR30,40199912-200304

main90947-02B97iACR30,40,MCR30,40199912-200304

main90947-02D28iACR30,40,MCR30,40200304

main90947-02D29iACR30,40,MCR30,40200304

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iACR30,40,MCR30,40199912-200207

main90401-10058×2iACR30,40,MCR30,40200207-200304

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iACR30,40,MCR30,40200207-200304

main90430-10074×4iACR30,40,MCR30,40199912-200207

47314TUBE, FRONT BRAKE, NO.4

main47314-28290iACR30,40,MCR30,40199912-200304

47315TUBE, FRONT BRAKE, NO.5

main47315-28210iACR40,MCR40200007-200304

main47315-28220iMCR30199912-200304

main47315-28240iACR30,MCR30200007-200304

main47315-28270iMCR30,40200304-200601

main47315-28280iACR30,MCR30200304-200601

47316TUBE, FRONT BRAKE, NO.6

main47316-28050iACR30,40,MCR30,40199912-200007

main47316-28060iMCR30199912-200304

main47316-28100iACR30,MCR30200007-200304

main47316-28150iMCR30,40200304-200601

main47316-28170iACR30,MCR30200304-200601

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02B46×2iACR30,40,MCR30,40199912-200304

main90947-02D30×2iACR30,40,MCR30,40200304-200601

47317TUBE, FRONT BRAKE, NO.7

main47317-28100iACR40,MCR40200007-200304

main47317-28110iMCR30199912-200304

main47317-28130iACR30,MCR30200007-200304

main47317-28180iMCR30,40200304-200601

main47317-28190iACR30,MCR30200304-200601

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02B95iACR30,40,MCR30,40199912-200304

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02B95iACR30,40,MCR30,40200304

47321TUBE, REAR BRAKE, NO.1

main47321-28460iACR30,40,MCR30,40199912-200304

47322TUBE, REAR BRAKE, NO.2

main47322-28270iACR30,40,MCR30,40199912-200304

47323TUBE, REAR BRAKE, NO.3

main47323-28340iACR30,40,MCR30,40199912-200304

47324TUBE, REAR BRAKE, NO.4

main47324-28240iACR30,40,MCR30,40199912-200304

47371ACLAMP, BRAKE TUBE, NO.1

main47371-28070iACR30,40,MCR30,40199912-200304

47371BCLAMP, BRAKE TUBE, NO.6

main90469-07012×5iACR30,40,MCR30,40199912-200304

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01A84×5iACR30,40,MCR30,40199912-200304

47372CLAMP, BRAKE TUBE, NO.2

main47371-52010×2iACR30,40,MCR30,40199912-200304

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01B10iACR30,40,MCR30,40199912-200304

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01C19iACR30,40,MCR30,40199912-200304

9017906274

main90179-06274

9046108715

main90461-08715

9046808035

main90468-08035

9094901A18

main90949-01A18

9094901A25

main90949-01A25

91611B0616

main91611-B0616

91621B0816

main91621-B0816

9165160616

main91651-60616

33 parts on this diagram · 11 diagrams in section
