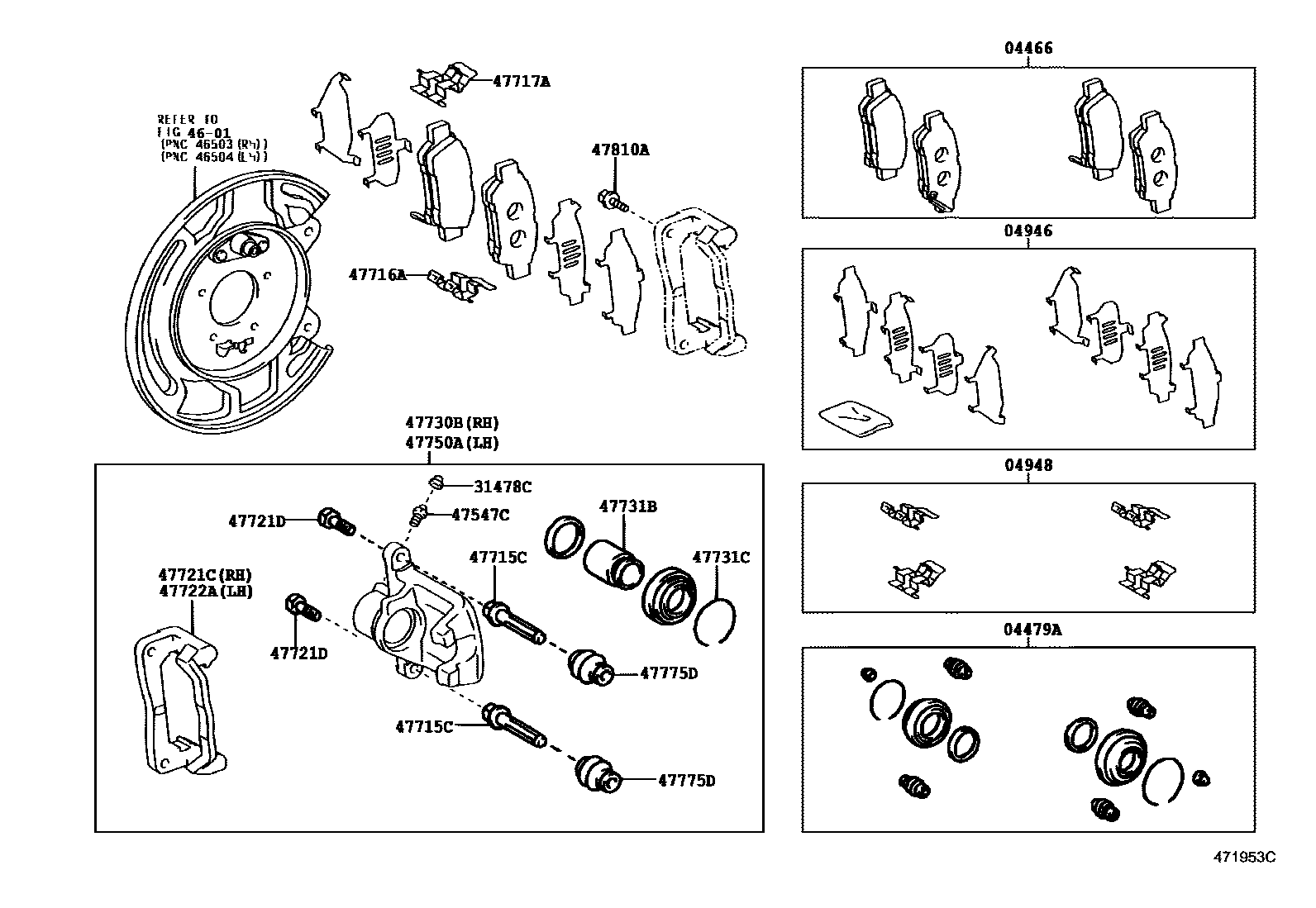

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-28030iACR30,40,MCR30,40199912-200111

sub04466-44010

main04466-28050iACR30,40,MCR30,40200111-200304

sub04466-28080

main04466-28080iACR30,40,MCR30,40200304-200601

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-28120iACR30,40,MCR30,40199912-200404

sub04479-28170

main04479-28170iACR30,40,MCR30,40200404-200601

sub04479-28090

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-28020iACR30,40,MCR30,40199912-200601

04948FITTING KIT, DISC BRAKE, REAR

main04948-28010iACR30,40,MCR30,40199912-200601

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iACR30,40,MCR30,40199912-200304

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iACR30,40,MCR30,40199912-200304

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-52010iACR30,40,MCR30,40199912-200304

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-28030iACR30,40,MCR30,40199912-200304

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-28010iACR30,40,MCR30,40199912-200304

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-28020iACR30,40,MCR30,40199912-200304

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iACR30,40,MCR30,40199912-200304

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-28010iACR30,40,MCR30,40199912-200304

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-28270iACR30,40,MCR30,40199912-200304

47731BPISTON, REAR DISC BRAKE

main47731-28090iACR30,40,MCR30,40199912-200304

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-53001iACR30,40,MCR30,40199912-200304

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-28270iACR30,40,MCR30,40199912-200304

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-52010iACR30,40,MCR30,40199912-200304

sub47775-02130

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-12185iACR30,40,MCR30,40199912-200304

19 parts on this diagram · 1 diagram in section
