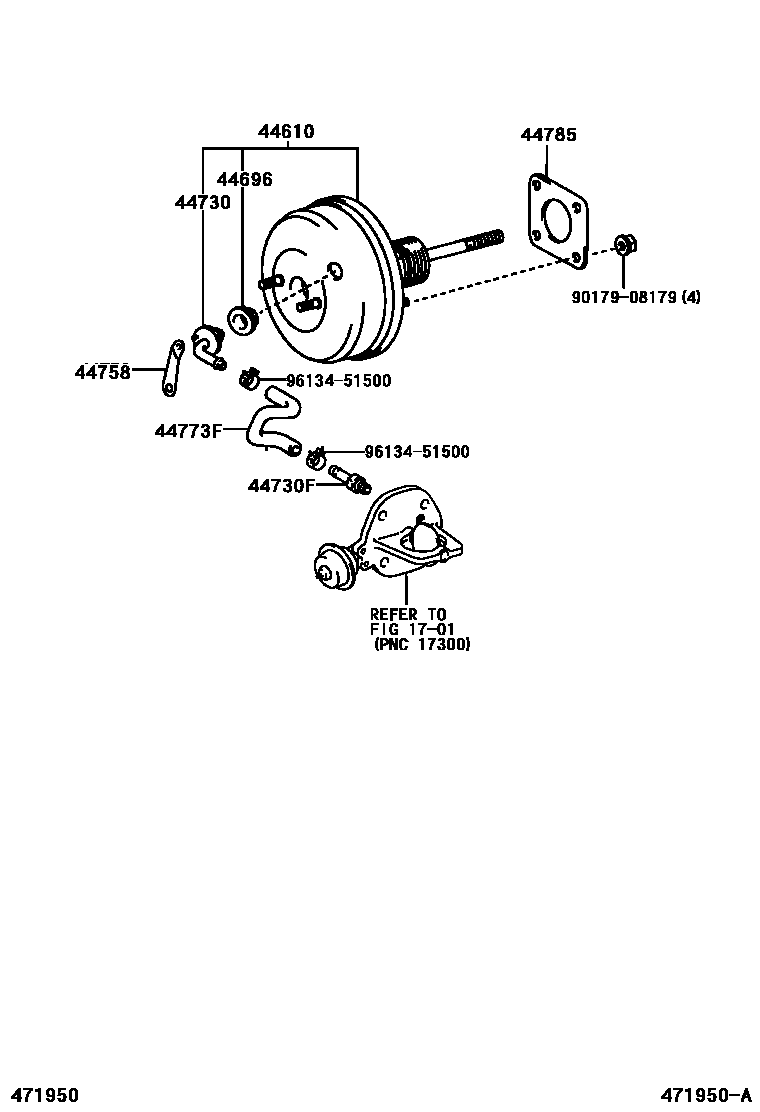

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-2J050iMCR30,40199912-200304

main44610-2J080iACR30,40200002-200304

main44610-2J130iMCR30,40200304

main44610-2J140iACR30,40,MCR30,40200304

44696GROMMET, CHECK VALVE

main90480-24015iACR30,40,MCR30,40200304

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28010iMCR30,40199912-200304

main44730-28030iACR30,40200004-200304

main44730-30010iACR30,40200002-200003

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iMCR30,40199912-200304

44758BRACKET, VACUUM CHECK VALVE

main44758-28130iMCR30,40199912-200304

44773FHOSE, UNION TO CHECK VALVE

main44773-28110iMCR30,40199912-200304

main44773-28120iACR30,40200002-200304

main44773-28150iMCR30,40200304

main44773-28160iACR30,40200304

44785GASKET, BRAKE BOOSTER

main44785-32010iACR30,40,MCR30,40199912-200304

9017908179

main90179-08179

9613451500

main96134-51500

10 parts on this diagram · 3 diagrams in section
