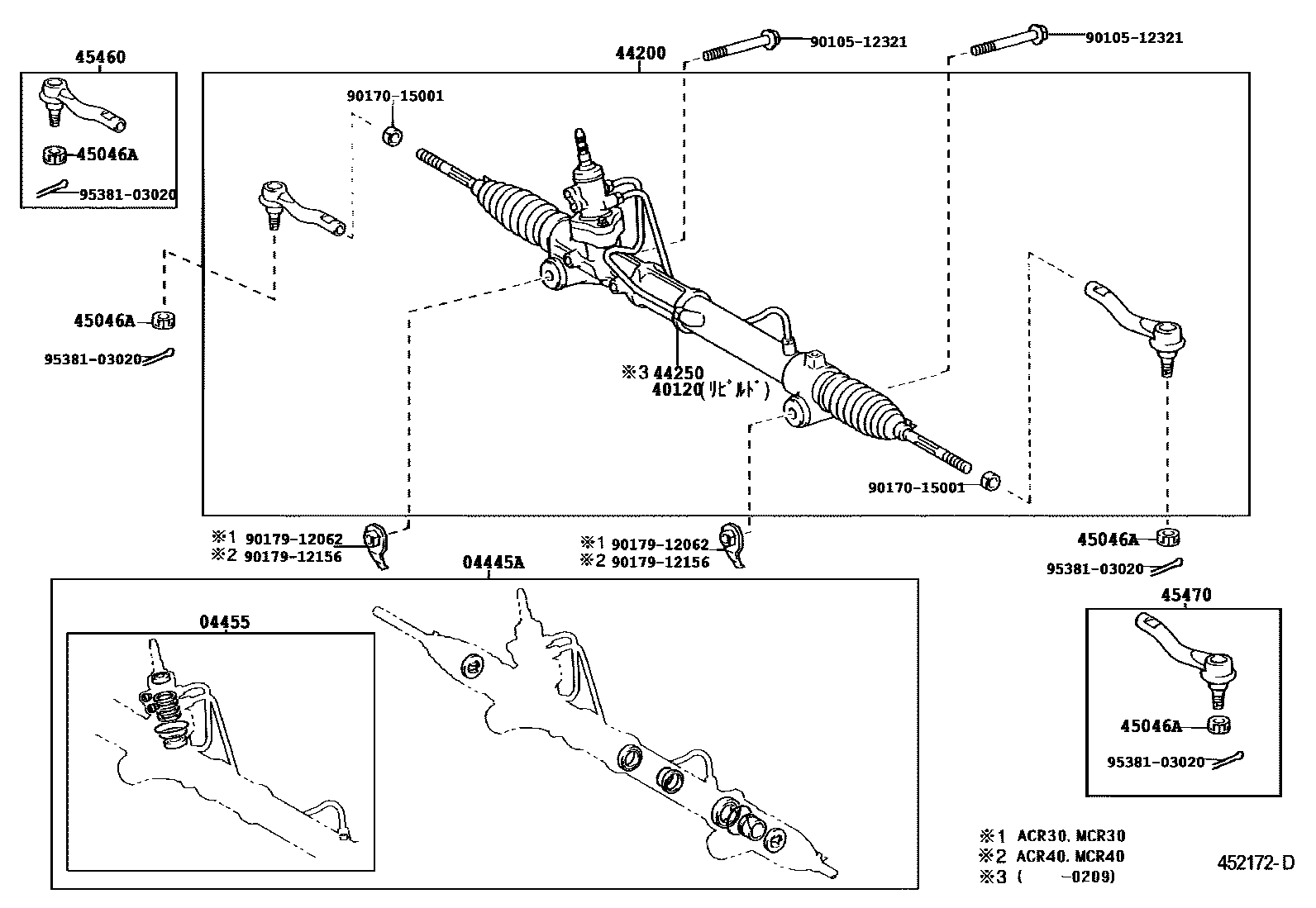

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-28090iACR30,40,MCR30,40199912-200204

main04445-28091iACR30,40,MCR30,40200204-200304

main04445-28120iACR30,40,MCR30,40200304-200502

main04445-28130iACR30,40,MCR30,40200502

main04445-58010iMCR40..07S..G200502

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-28060iACR30,40,MCR30,40199912-200204

main04455-28061iACR30,40,MCR30,40200204-200304

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-28390iACR30,MCR30..G,J,X199912-200304

main40120-28400iACR30,MCR30..AERAS199912-200304

main40120-28430iACR40,MCR40..G,J,X199912-200304

main40120-28440iACR40,MCR40..AERAS199912-200304

main40120-28490iACR40,MCR40..X;ACR40,MCR40..07S..G200105-200112

main40120-28550iACR30..J,X200304-200502

main40120-28551iACR30..J,X200502

main40120-28560iACR30,MCR30..AERAS,G200304-200502

main40120-28561iACR30,MCR30..AERAS,G200502

main40120-28570iACR30,MCR30..AERSS200304-200502

main40120-28571iACR30,MCR30..AERSS200502

main40120-28590iACR40..J,X200304-200502

main40120-28591iACR40..J,X200502

main40120-28600iACR40,MCR40..AERAS,G200304-200502

main40120-28601iACR40,MCR40..AERAS,G200502

main40120-28610iACR40,MCR40..AERSS200304-200502

main40120-28611iACR40,MCR40..AERSS200502

main40120-28620iMCR40..07S..G200304-200502

main40120-28621iMCR40..07S..G200502

44200LINK ASSY, POWER STEERING

main44200-28390iACR30,MCR30..G,J,X199912-200304

main44200-28400iACR30,MCR30..AERAS199912-200304

main44200-28430iACR40,MCR40..G,J,X199912-200304

main44200-28440iACR40,MCR40..AERAS199912-200304

main44200-28490iACR40,MCR40..X;ACR40,MCR40..07S..G200105-200112

main44200-28550iACR30..J,X200304-200501

main44200-28551iACR30..J,X200502

main44200-28560iACR30,MCR30..AERAS,G200304-200501

main44200-28561iACR30,MCR30..AERAS,G200502

main44200-28570iACR30,MCR30..AERSS200304-200501

main44200-28571iACR30,MCR30..AERSS200502

main44200-28590iACR40..J,X200304-200501

main44200-28591iACR40..J,X200502

main44200-28600iACR40,MCR40..AERAS,G200304-200501

main44200-28601iACR40,MCR40..AERAS,G200502

main44200-28610iACR40,MCR40..AERSS200304-200501

main44200-28611iACR40,MCR40..AERSS200502

main44200-28620iMCR40..07S..G200304-200501

main44200-28621iMCR40..07S..G200502

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-28390iACR30,MCR30..G,J,X199912-200209

main44250-28400iACR30,MCR30..AERAS199912-200209

main44250-28430iACR40,MCR40..G,J,X199912-200209

main44250-28440iACR40,MCR40..AERAS199912-200209

main44250-28490iACR40,MCR40..X;ACR40,MCR40..07S..G200105-200112

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iACR30,40,MCR30,40199912-200304

45460ROD ASSY, TIE, RH

main45460-29425iACR30,40,MCR30,40199912-200304

main45460-59055iACR30,40,MCR30,40200304

45470ROD ASSY, TIE, LH

main45470-29185iACR30,40,MCR30,40199912-200304

main45470-59055iACR30,40,MCR30,40200304

9010512321

main90105-12321

9017015001

main90170-15001

9017912062

main90179-12062

9017912156

main90179-12156

9538103020

main95381-03020

13 parts on this diagram · 4 diagrams in section
