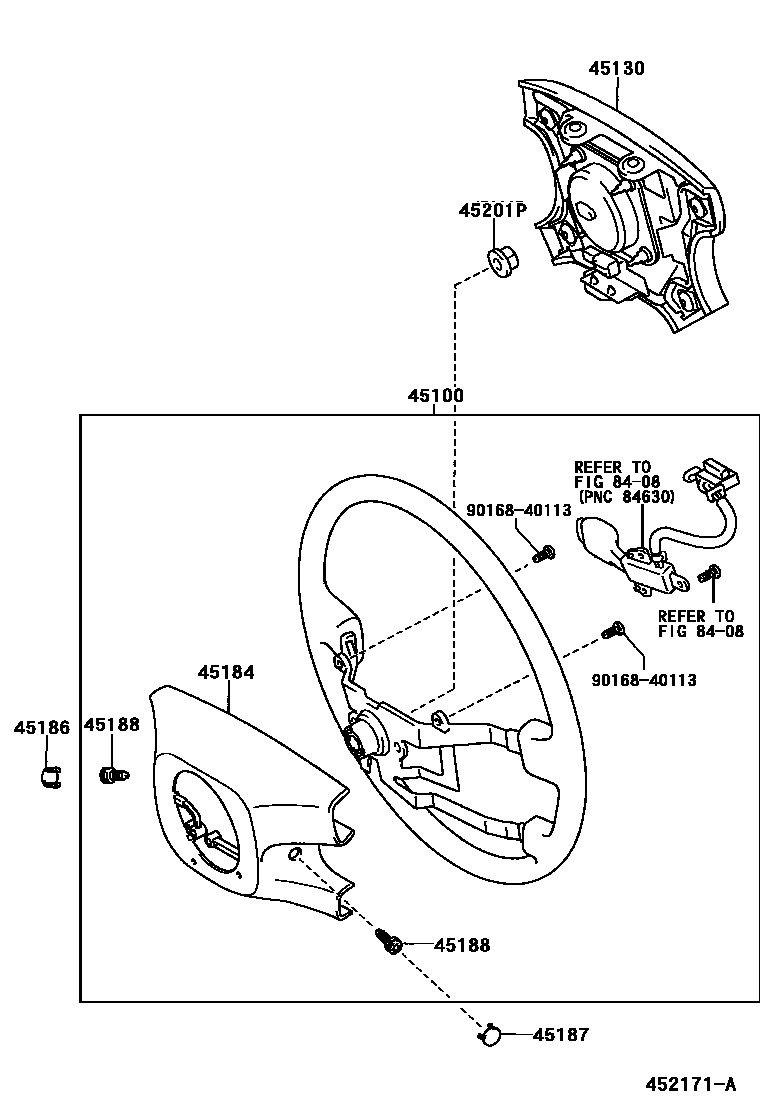

STEERING WHEEL

0001 14-SPOKE 0002 14-SPOKE 0003 13-SPOKE

45100WHEEL ASSY, STEERING

main45100-28180-B0iACR30,40..J,X200002-200304

main45100-28180-B1iACR30,40..J,X200002-200304

main45100-28200-B0iACR30,40,MCR30,40..AERAS199912-200304

main45100-28200-B1iACR30,40,MCR30,40..X200109-200204

main45100-28220-B2iACR30,40,MCR30,40..G199912-200304

main45100-28220-B3iACR30,40,MCR30,40..G199912-200304

main45100-28220-B4iACR30,40,MCR30,40..08S..AERAS200304

main45100-28220-B5iACR30,40,MCR30,40..AERAS200204-200304

main45100-28230-B2iMCR30,40..G199912-200304

main45100-28230-B3iMCR30,40..G199912-200304

main45100-28240-B0iMCR30,40..X199912-200304

main45100-28240-B1iMCR30,40..X199912-200304

main45100-28340-B0iACR30,40..J200304-200601

main45100-28340-E0iACR40..X;ACR30..J,X200304-200601

main45100-28350-B0iACR30,40,MCR30,40..AERAS200304-200601

main45100-28360-B0iACR30,40,MCR30,40..AERAS200409

main45100-28360-E0iACR30,40,MCR30,40..AERAS200312-200409

main45100-28370-B0iACR30,40,MCR30,40..AERSS200304-200601

45130BUTTON ASSY, HORN

main45130-28420-B0iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X199912-200304

BLUISH GRAY,TRIM1#; BLUISH GRAY,TRIM11

main45130-28420-B1iACR30,40,MCR30,40..G,J,X199912-200304

DK.CHARCOAL,TRIM12

main45130-28480-B0iACR30,40,MCR30,40..AERAS,J200304-200601

main45130-28480-E0iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

main45130-28490-B0iACR30,40,MCR30,40..AERAS200304-200601

main45130-28490-E0iACR30,40,MCR30,40..AERAS200312-200409

main45130-28500-B0iACR30,40,MCR30,40..AERSS200304-200601

DK.GRAY,TRIM1#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-28110-B0iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X199912-200304

BLUISH GRAY,TRIM1#; BLUISH GRAY,TRIM11

main45184-28110-B1iACR30,40,MCR30,40..G,J,X199912-200304

DK.CHARCOAL,TRIM12

main45184-28120-B0iMCR30,40..G199912-200304

main45184-28120-B1iMCR30,40..G199912-200304

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-33050-B0iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X199912-200304

BLUISH GRAY,TRIM1#; BLUISH GRAY,TRIM11

main45186-33050-B1iACR30,40,MCR30,40..G,J,X199912-200304

DK.CHARCOAL,TRIM12

main45186-33050-B4iACR30,40,MCR30,40..AERSS200304-200601

DK.GRAY,TRIM1#

main45186-58010-B0iACR30,40,MCR30,40..AERAS,J200304-200601

DK.GRAY,TRIM1#

main45186-58010-E1iACR40..X;ACR30..J,X200304-200601

SANDAL WOOD,TRIM0#

main45186-58020-B0iACR30,40,MCR30,40..AERAS200409

main45186-58020-E1iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),SANDAL WOOD,TRIM0#

45187COVER, STEERING WHEEL, LOWER NO.3

main45186-33050-B0iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X199912-200304

BLUISH GRAY,TRIM1#; BLUISH GRAY,TRIM11

main45186-33050-B1iACR30,40,MCR30,40..G,J,X199912-200304

DK.CHARCOAL,TRIM12

main45187-58010-B0iACR30,40,MCR30,40..AERAS,J200304-200601

DK.GRAY,TRIM1#

main45187-58010-E1iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),SANDAL WOOD,TRIM0#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2iACR30,40,MCR30,40199912-200304

main90148-60007×2iACR30,40,MCR30,40..AERSS200304-200601

45201PNUT, STEERING WHEEL SET

main90179-12071iACR30,40,MCR30,40199912-200304

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9016840113

main90168-40113

9 parts on this diagram · 3 diagrams in section
