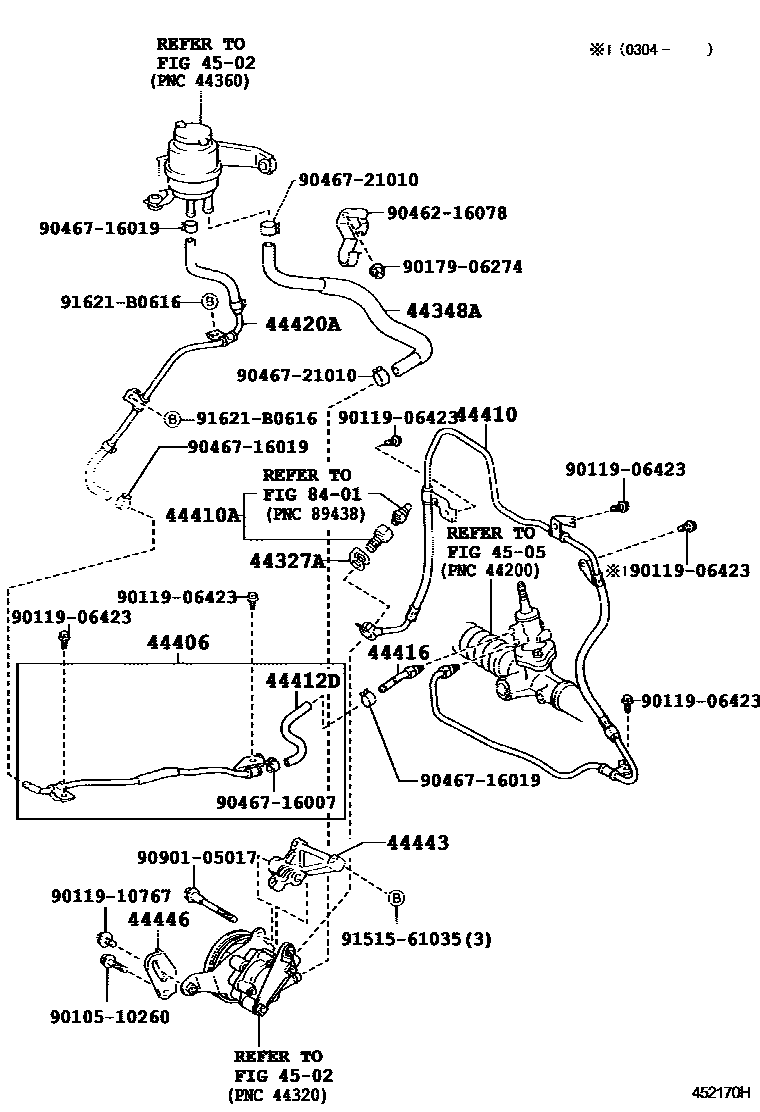

POWER STEERING TUBE

0001 1 0002 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iACR30,40,MCR30,40199912-200112

main44327-30030iACR30,40,MCR30,40200112-200304

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-28230iMCR30199912-200304

main44348-28240iACR30200002-200304

main44348-28250iMCR40199912-200304

main44348-28260iACR40200304

44406TUBE SUB-ASSY, RETURN

main44406-28300iACR30,MCR30199912-200304

main44406-28320iACR40,MCR40199912-200304

main44406-58010iACR30,MCR30200304-200411

main44406-58011iACR30,MCR30200412

main44406-58020iACR40,MCR40200304-200411

main44406-58021iACR40,MCR40200412

44410TUBE ASSY, PRESSURE FEED

main44410-28450iMCR30199912-200304

main44410-28460iACR30,40200002-200304

main44410-28500iMCR40199912-200304

main44410-58010iMCR30200304

main44410-58021iACR30,40200304

main44410-58030iMCR40200304

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-33090iMCR30,40199912-200304

44412DHOSE, RETURN, NO.1

main44412-58010iACR40,MCR40200304-200601

main44412-58020iACR30,MCR30199912-200304

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-28370iACR30,40,MCR30,40199912-200304

44420ATUBE ASSY, RETURN

main44420-28100iMCR30,40200304-200411

main44420-28101iMCR30,40200412

main44420-28110iACR30,40200304

44443BRACKET, PUMP

main44443-33041iMCR30,40199912-200304

44446STRUT, ADJUSTING

main44446-28030iMCR30,40199912-200304

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010510260

main90105-10260

9011906423

main90119-06423

9011910767

main90119-10767

9017906274

main90179-06274

9046216078

main90462-16078

9046716007

main90467-16007

9046716019

main90467-16019

9046721010

main90467-21010

9090105017

main90901-05017

9151561035

main91515-61035

91621B0616

main91621-B0616

24 parts on this diagram · 2 diagrams in section
