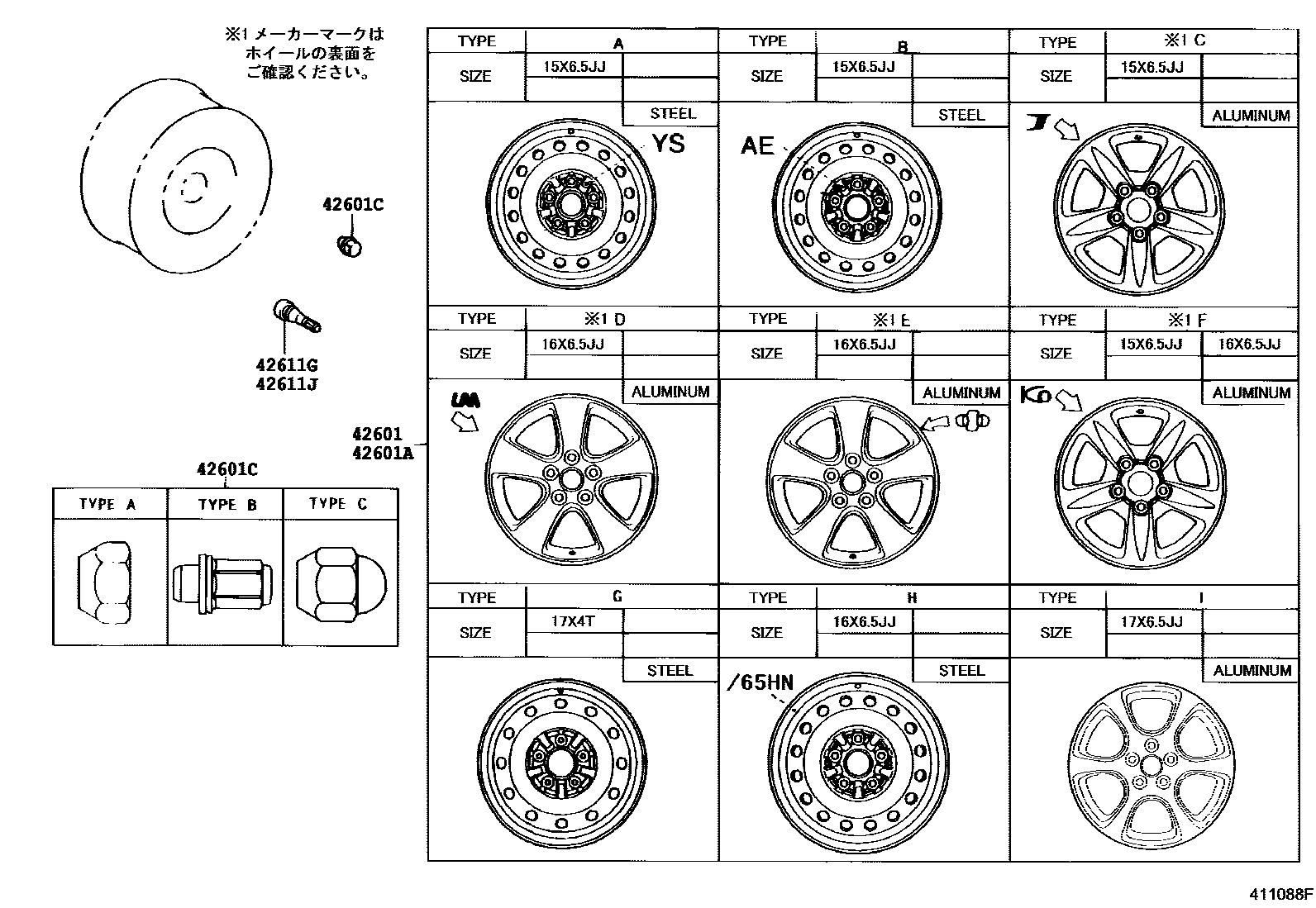

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1 0005 1

42601WHEEL, DISC

main42611-28420×4iACR30,40,MCR30,40..08S..AERAS200304

main42611-28430×4iACR30,40,MCR30,40..08S..AERAS200006-200304

main42611-28440×4iACR30,40,MCR30,40..G,J,X199912-200304

main42611-28450×4iACR30,40,MCR30,40..AERAS200304-200410

main42611-28460×4iACR30,40,MCR30,40..AERAS200105-200304

main42611-28470×4iACR30,40,MCR30,40..G,J,X200009-200212

main42611-28471×4iACR30,40,MCR30,40..G,J,X200212-200304

main42611-28540×4iACR30,40,MCR30,40..G200304-200601

main42611-28550×4iACR30,40,MCR30,40..AERAS200204-200304

main42611-28560×4iACR30,40,MCR30,40..AERAS200204-200304

main42611-28570×4iACR30,40,MCR30,40..AERSS200304-200601

main42611-28620×4iACR30,40,MCR30,40..AERAS200410-200601

main42611-33310×4iACR30,40..J,X200304-200601

main42611-33320×4iACR30,40..J,X200304-200601

42601AWHEEL, DISC (FOR SPARE)

main42611-28210iACR30,40,MCR30,40..08S..AERAS200006-200304

main42611-50090iACR30,40,MCR30,40200304-200601

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iACR30,40,MCR30,40..08S..AERAS200304

main90942-01021×20iACR30,40,MCR30,40..X200010-200104

main90942-01058×20iACR30,40,MCR30,40..AERAS,AERSS; ACR30,40,MCR30,40..G200304

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iACR30,40,MCR30,40200304-200601

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iACR30,40,MCR30,40199912-200304

5 parts on this diagram · 5 diagrams in section
