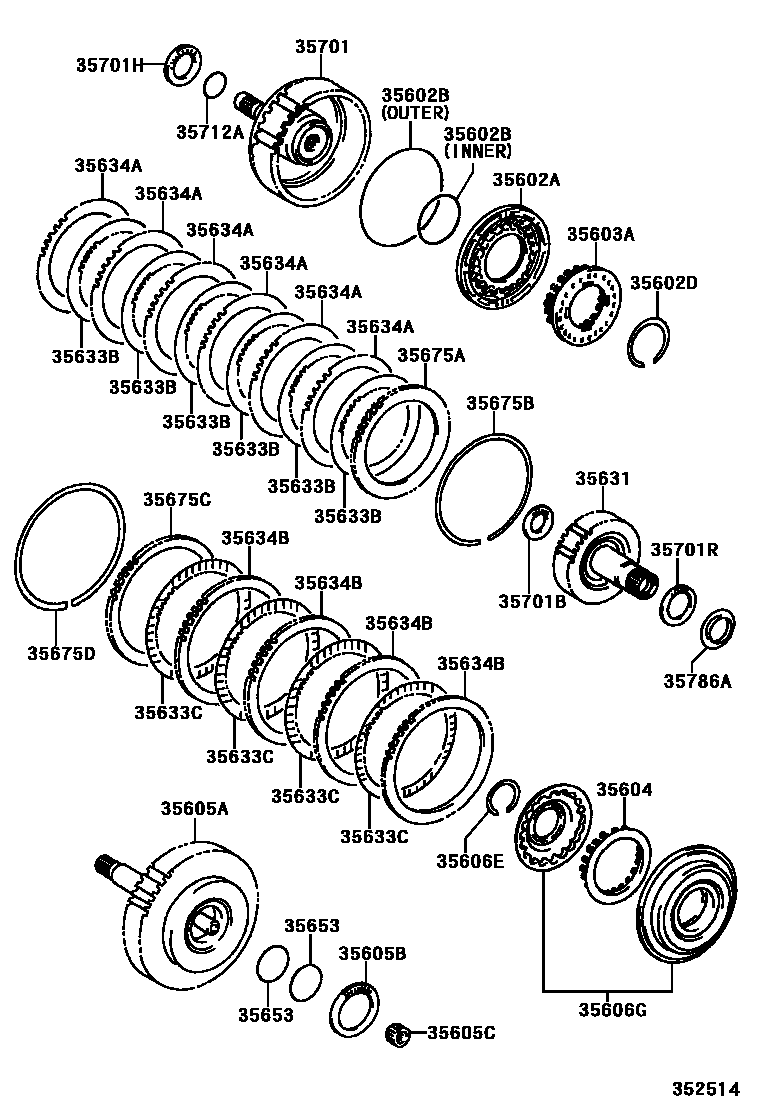

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1U140E,U140F 0002 1U140F,U241E

35602APISTON SUB-ASSY, FORWARD CLUTCH

main35602-21010iACR30200304

main35602-28010iACR30; ACR40,MCR40200304

35602BRING, O (FOR FORWARD CLUTCH PISTON)

main90301-64008iMCR30200304-200407

main90301-65006iMCR30200407-200601

main90301-99104iACR30,40,MCR30,40200304-200601

35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)

main90520-54004iACR30,40,MCR30,40200304-200601

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-21010iACR30,40,MCR30,40199912-200304

35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN

main35604-21010iACR30,40,MCR30,40199912-200304

35605ADRUM SUB-ASSY, DIRECT CLUTCH

main35605-21010iMCR30200304-200407

main35605-28010iMCR30200407

main35605-28020iACR30; ACR40200304

main35605-48010iACR30200304

35605BBEARING, THRUST NEEDLE ROLLER

main90374-53001iACR30,40,MCR30,40199912-200304

main90374-53002iMCR30200304-200407

35605CBEARING, NEEDLE ROLLER

main90364-18010iACR30,40,MCR30,40200304-200601

35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)

main90520-38019iACR30,40,MCR30,40200304-200601

35606GPISTON SET, DIRECT CLUTCH

main35606-21010iACR30,40,MCR30,40199912-200304

35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)

main35061-28010iACR30,40,MCR30,40199912-200304

main35061-33010iMCR30200304-200407

35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35633-21010×5iACR30200304

main35633-28010×6iMCR30200407

35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35667-21010×4iMCR30200304-200407

main35667-28010×3iACR30; ACR40200002-200304

35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35634-21010×5iACR30200304-200601

main35634-28010×5iACR30; ACR40; MCR40200304-200601

35634BPLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35647-21010×3iACR30200304

main35647-28010×3iACR30; ACR40200002-200304

35653RING, REAR CLUTCH OIL SEAL, OUTER

main35653-21010×2iACR30,40,MCR30,40200304

35675AFLANGE, FORWARD CLUTCH

main35635-21010iACR30,40,MCR30,40200304

main35635-21020iACR30,40,MCR30,40199912-200304

main35635-21030iACR30,40,MCR30,40200304

main35635-21040iACR30,40,MCR30,40199912-200304

main35635-21050iACR30,40,MCR30,40200304

main35635-21060iACR30200312

main35635-21070iACR30200312

35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

main90520-99025iACR30,40,MCR30,40199912-200304

35675CFLANGE, DIRECT CLUTCH

main35675-21010iACR30,40,MCR30,40200304

main35675-21020iACR30,40,MCR30,40200304

main35675-21030iACR30,40,MCR30,40199912-200304

main35675-21040iACR30,40,MCR30,40200304

main35675-21050iACR30,40,MCR30,40200304

main35675-21060iACR30,40,MCR30,40200304

main35675-21080iACR30200312

main35675-33060iMCR30200402-200407

35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)

main90520-99028iACR30,40,MCR30,40199912-200304

35701SHAFT SUB-ASSY, INPUT

main35701-21010iMCR30200304-200407

main35701-28010iMCR30200407

main35701-28020iACR30; ACR40200304

main35701-44010iACR30200304

35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)

main90374-23002iACR30,40,MCR30,40199912-200304

35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)

main90374-34005iACR30,40,MCR30,40199912-200304

35701RBEARING, THRUST NEEDLE ROLLER

main90374-37005iACR30,40,MCR30,40199912-200304

35712ARING, INPUT SHAFT OIL SEAL

main35712-21010iACR30,40,MCR30,40199912-200304

35786ARACE, THRUST BEARING, NO.1

main35786-21010iACR30,40,MCR30,40199912-200304

26 parts on this diagram · 2 diagrams in section
