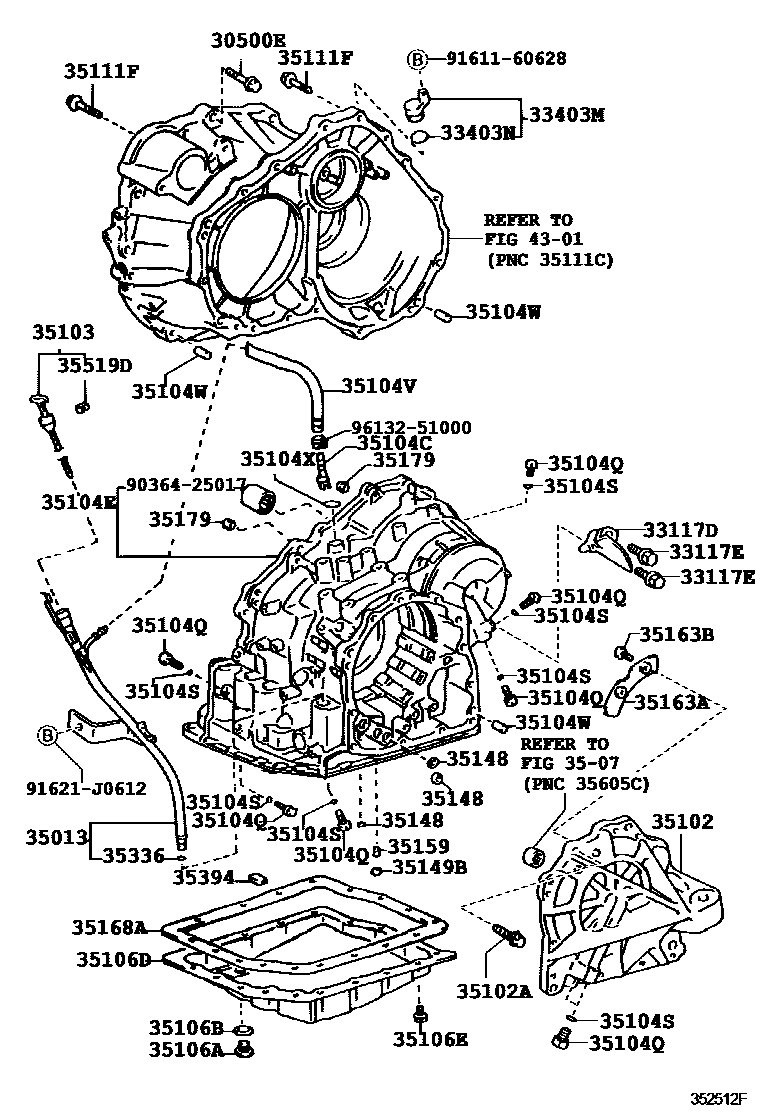

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U140E,U140F,U241E 0004 1U140E 0005 1U241E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10425iMCR40200304

main90119-12168×3iACR30,40,MCR30,40200304

main90119-12250iMCR30,40200304

main91512-61050iACR30,40200304

main91512-61065iACR30,40200304

main91619-61265iMCR30,40200304

main92412-H1055iMCR30200304

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-21010iACR40,MCR30,40200304

main33117-28020iACR30200002-200304

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040×2iACR30,40,MCR30,40199912-200304

main91641-H0820×2iACR30,40,MCR30,40200304

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230iACR30200002-200304

main33403-21020iACR40,MCR30,40199912-200304

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main90301-18018iACR40,MCR30,40199912-200102

main96711-24018iACR30200002-200304

main96711-24020iACR40,MCR30,40200102-200304

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-28130iMCR30,40199912-200304

main35013-28140iACR30,40200304

3507BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

→ Go to FIG 35-07

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-28010iMCR30200407

main35102-28020iACR30200002-200304

main35102-33010iMCR30200304-200407

main35102-33020iACR30200304

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08071×11iACR30,40,MCR30,40200304-200601

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-28140iMCR30200304

main35103-28150iMCR40200304

main35103-28160iACR40200304

main35103-28170iACR30200002-200304

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03157iACR30,40,MCR30,40199912-200304

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-21011iMCR30200304-200407

main35104-28080iACR40,MCR30,40199912-200108

main35104-28081iACR40,MCR40200304-200601

main35104-28090iACR30200002-200108

main35104-28091iACR30200108-200304

main35104-33070iACR30200402-200601

main35104-44010iACR30200304-200402

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×8iACR30,40,MCR30,40200304-200601

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×8iACR30,40,MCR30,40199912-200304

35104VHOSE (FOR BREATHER PLUG)

main35121-28010iACR30,40,MCR30,40199912-200304

main35121-28011iACR30; ACR40,MCR30200511-200601

main35121-28020iMCR30200407-200511

main35121-33010iACR30200304-200601

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×4iACR30,40,MCR30,40199912-200304

main90250-10034×4iMCR30200407-200601

main90250-10036×4iACR30200304-200601

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iACR30,40,MCR30,40199912-200304

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iACR30,40,MCR30,40200304-200601

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iACR30,40,MCR30,40200304-200601

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-28080iACR30; ACR40,MCR40200304-200601

main35106-33030iMCR30200304-200407

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iACR30,40,MCR30,40199912-200304

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08066iACR30; ACR40,MCR40200304-200601

main90105-08233×8iACR40,MCR30,40199912-200304

main90105-08353×7iACR30,MCR30; ACR40,MCR40200304-200601

35148GASKET, GOVERNOR APPLY, NO.1

main35145-21010×3iACR30,40,MCR30,40200304-200601

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-21010iACR30,40,MCR30,40199912-200304

35159GASKET, BRAKE DRUM

main35159-21010iACR30,40,MCR30,40199912-200304

35163APLATE, TRANSAXLE REAR COVER

main35163-28010iACR30,40,MCR30,40199912-200304

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90148-60055×2iACR30,40,MCR30,40199912-200304

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-21010iACR30; ACR40,MCR40200304-200601

main35168-21011iACR30200304-200401

main35168-21020iACR30200401-200601

35179GASKET, OVERDRIVE BRAKE

main35179-32010×2iACR30,40,MCR30,40199912-200304

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iACR30,40,MCR30,40199912-200304

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iACR30,40,MCR30,40199912-200304

main35394-48010×3iACR30200403-200601

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iACR30,MCR30200304

main35519-52010iACR40,MCR40199912-200304

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

9036425017

main90364-25017

9161160628

main91611-60628

91621J0612

main91621-J0612

9613251000

main96132-51000

37 parts on this diagram · 3 diagrams in section
