TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

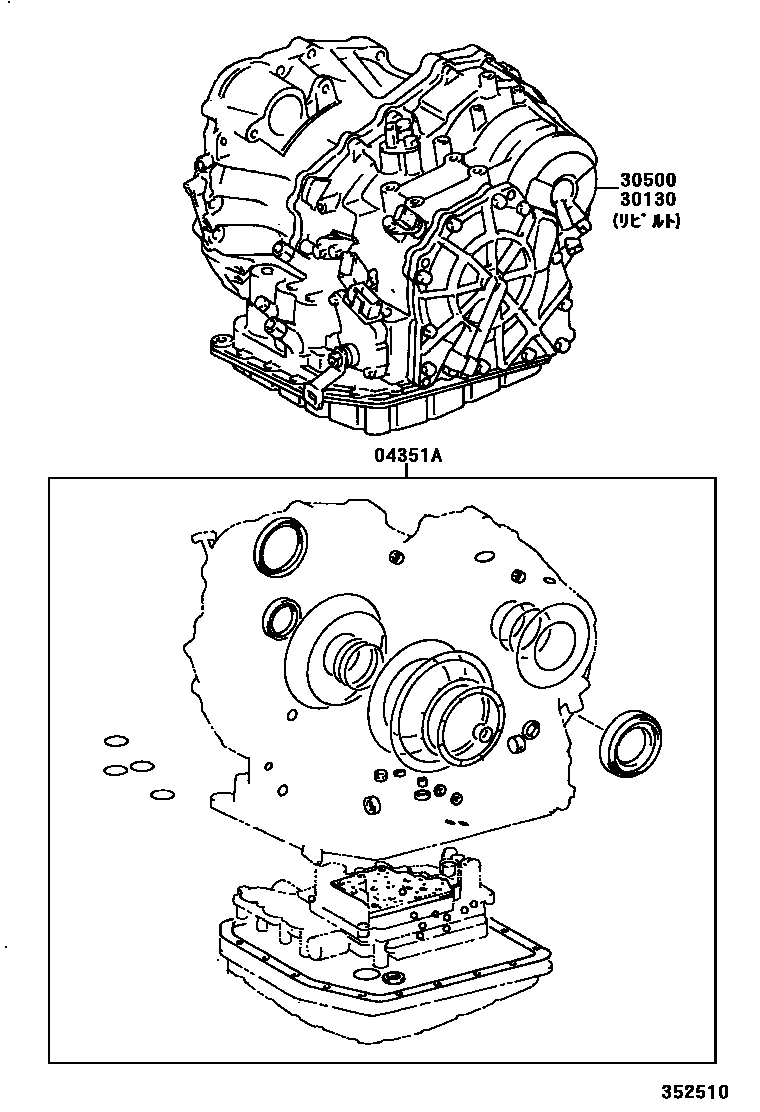

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-28090i199912-200304

main04351-28100i199912-200304

main04351-28110i200002-200304

main04351-28140i200304-200511

main04351-28141i200511

main04351-28150i200304-200511

main04351-28151i200511

main04351-33330i200304

30130TRANSAXLE ASSY, REBUILT

main30130-28010i199912-200304

main30130-28020i199912-200304

main30130-28030i200002-200304

main30130-28040i200002-200304

main30130-28080i200304-200407

main30130-28090i200304-200601

main30130-28100i200304-200601

main30130-28110i200304-200601

main30130-28120i200304-200601

main30130-28130i200407-200601

30500TRANSAXLE ASSY, AUTOMATIC

main30500-28010i199912-200304

main30500-28020i199912-200304

main30500-28030i200002-200304

main30500-28040i200002-200304

main30500-28080i200304-200407

main30500-28090i200304

main30500-28100i200304

main30500-28110i200304

main30500-28120i200304

main30500-28130i200407

3 parts on this diagram · 2 diagrams in section
