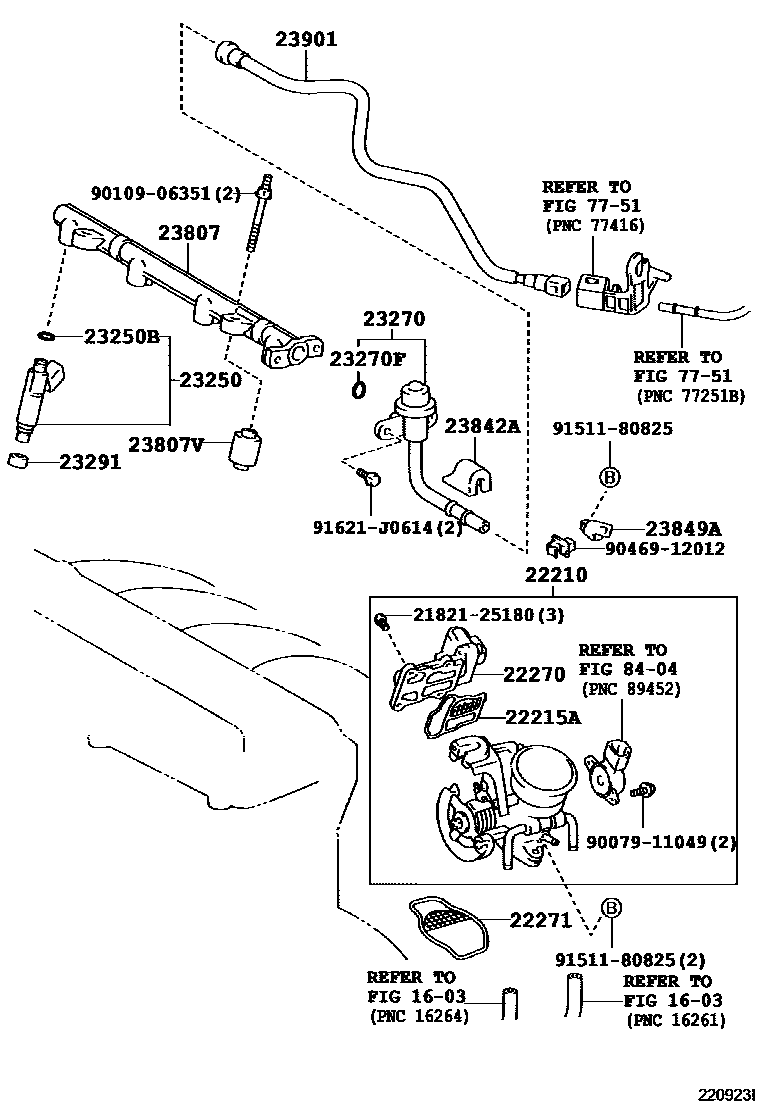

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22210BODY ASSY, THROTTLE

main22210-20130i1MZFE..MCR30,40199912-200304

main22210-20200i1MZFE..MCR30,40200403

main22210-28040i2AZFE..ACR30,40200002-200304

22215AGASKET, IDLE SPEED CONTROL VALVE

main22215-20010i1MZFE..MCR30,40200304-200403

main22215-28040i2AZFE..ACR30,40200002-200005

main22215-28041i2AZFE..ACR30,40200005-200108

main22215-28042i2AZFE..ACR30,40200108-200304

main22215-7A680i1MZFE..MCR30,40200403-200601

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-0A070i1MZFE..MCR30,40200403-200510

main22270-20050i1MZFE..MCR30,40199912-200304

main22270-20070i1MZFE..MCR30,40200511

main22270-28010i2AZFE..ACR30,40200002-200304

22271GASKET, THROTTLE BODY

main22271-20020i1MZFE..MCR30,40199912-200304

main22271-28020i2AZFE..ACR30,40200002-200304

23250INJECTOR ASSY, FUEL

main23209-20020×6i1MZFE..MCR30,40200304

main23209-28020×4i2AZFE..ACR30,40200002-200304

main23209-28080×4i2AZFE..ACR30,40200304-200601

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×4i2AZFE..ACR30,40200304-200601

main90301-07037×6i1MZFE..MCR30,40200502

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28020i2AZFE..ACR30,40200002-200304

main23270-62010i1MZFE..MCR30,40200304-200410

main23270-62011i1MZFE..MCR30,40200410

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2AZFE..ACR30,40200002-200304

23291INSULATOR, INJECTOR VIBRATION

main23291-20010×6i1MZFE..MCR30,40199912-200304

main23291-41010×4i2AZFE..ACR30,40200002-200304

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-20020i1MZFE..MCR30,40199912-200304

main23814-20021i1MZFE..MCR30,40200401

main23814-28020i2AZFE..ACR30,40200002-200304

main23814-28031i2AZFE..ACR30,40200312-200601

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08020×4i1MZFE..MCR30,40199912-200304

main90561-08053×2i2AZFE..ACR30,40200304-200601

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i2AZFE..ACR30,40200002-200304

23849ASUPPORT, FUEL PIPE

main23849-28010i2AZFE..ACR30,40200002-200304

main23849-28030i2AZFE..ACR30,40200304-200601

23901TUBE SUB-ASSY, FUEL

main23901-28010i2AZFE..ACR30,40200002-200304

main23901-28190i2AZFE..ACR30,40200304

7751FUEL TANK & TUBE

→ Go to FIG 77-51

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9007911049

main90079-11049

9010906351

main90109-06351

9046912012

main90469-12012

9151180825

main91511-80825

91621J0614

main91621-J0614

23 parts on this diagram · 5 diagrams in section
