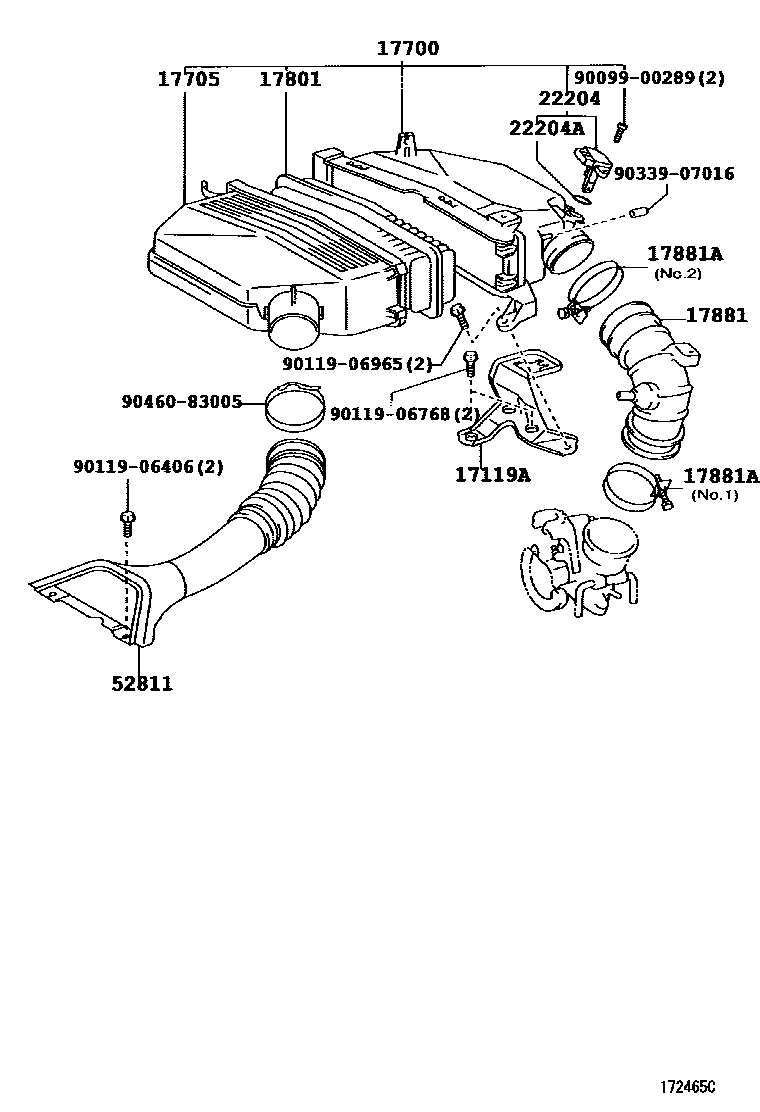

AIR CLEANER

0001 1 0002 1

17119ABRACKET, AIR CLEANER

main17119-28010i2AZFE..ACR30,40200304

17700CLEANER ASSY, AIR

main17700-20140i1MZFE..MCR30,40200304

main17700-28090i2AZFE..ACR30,40200002-200301

main17700-28091i2AZFE..ACR30,40200301-200304

main17700-28092i2AZFE..ACR30,40200501

17705CAP SUB-ASSY, AIR CLEANER

main17705-20110i1MZFE..MCR30,40200304

main17705-28050i2AZFE..ACR30,40200002-200304

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-20040i1MZFE..MCR30,40200304

main17801-28010i2AZFE..ACR30,40200304-200412

17881HOSE, AIR CLEANER, NO.1

main17881-20110×2i1MZFE..MCR30,40199912-200304

main17881-28040i2AZFE..ACR30,40200002-200304

main17881-28180i2AZFE..ACR30,40200304

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10630×2i1MZFE..MCR30,40200304

main96111-10650×2i1MZFE..MCR30,40199912-200304

main96111-10730i2AZFE..ACR30,40200002-200304

main96111-10830i2AZFE..ACR30,40200002-200304

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-21010i1MZFE..MCR30,40199912-200304

main22204-22010i2AZFE..ACR30,40200002-200304

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i2AZFE..ACR30,40200304

52811DUCT, COOL AIR INTAKE, NO.1

main52810-28100iMCR30,40199912-200304

main52810-28110iACR30,40200002-200304

9009900289

main90099-00289

9011906406

main90119-06406

9011906768

main90119-06768

9011906965

main90119-06965

9033907016

main90339-07016

9046083005

main90460-83005

15 parts on this diagram · 2 diagrams in section
