V-BELT

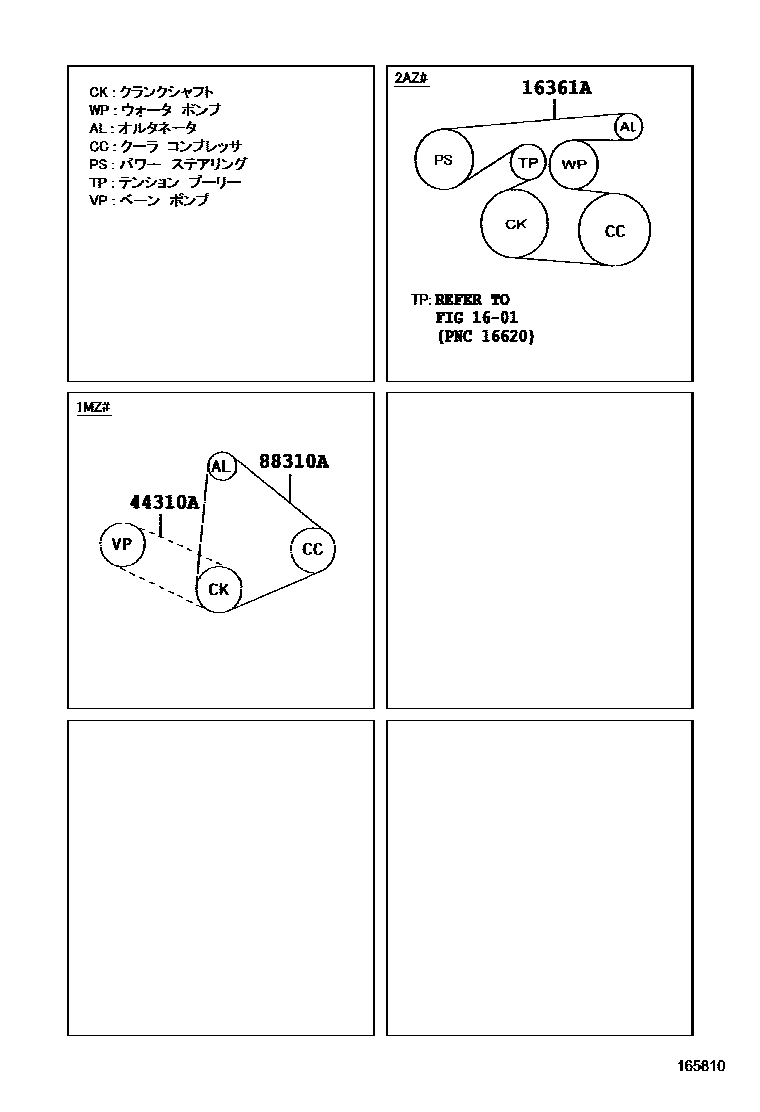

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02493i200002-200304

main90916-02515i200002-200304

main90916-02563i200304

44310ABELT, V(FOR VANE PUMP)

main90080-91088i200304

main99364-20880i200304

main99364-80880i199912-200304

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99366-31040i199912-200203

main99366-91040i199912-200203

3 parts on this diagram · 1 diagram in section
