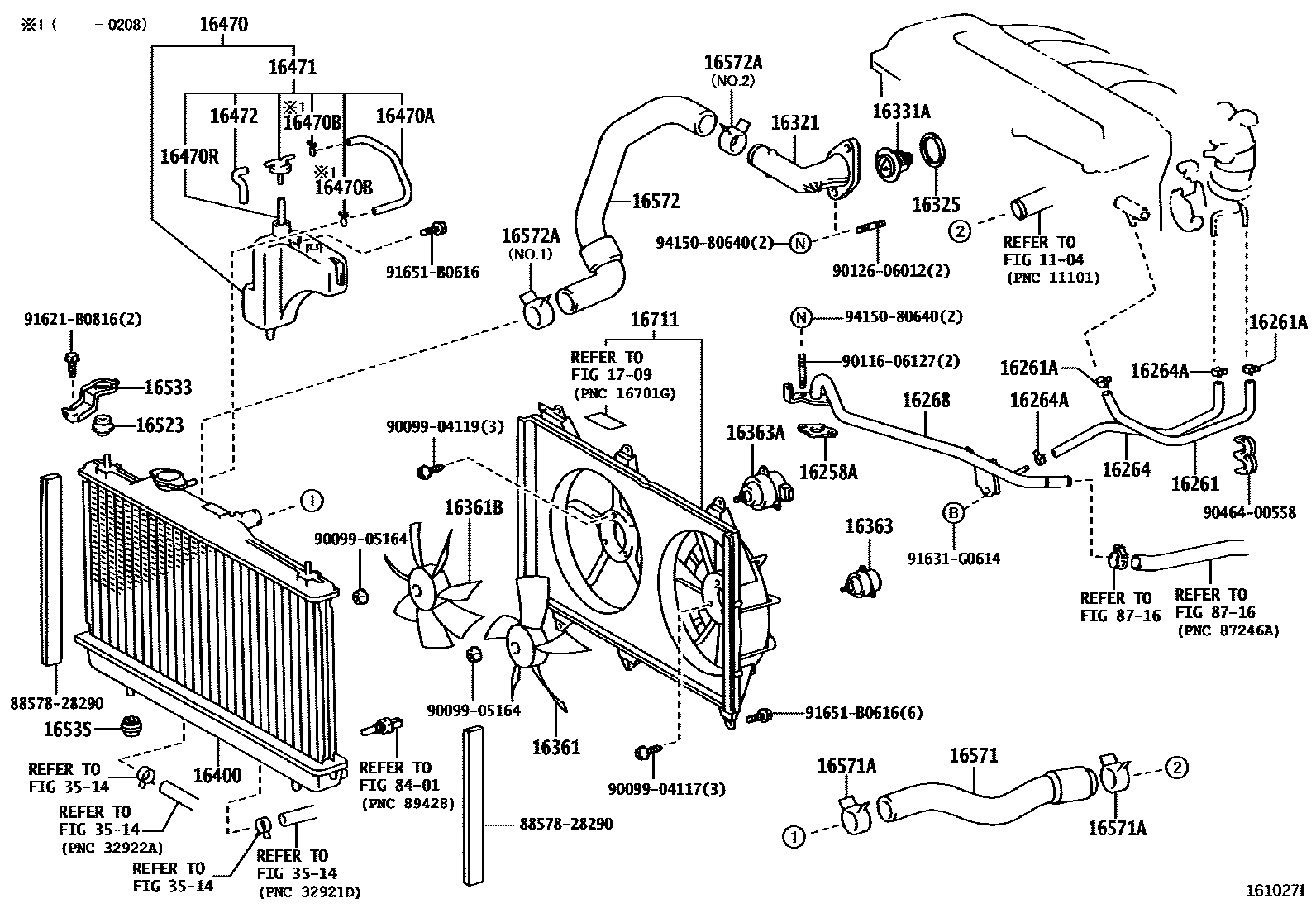

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1104

16258AGASKET(FOR HEATER RETURN)

main16258-28010i2AZFE..ACR30,40200002-200308

sub16258-28030

main16258-28030i2AZFE..ACR30,40200308-200601

16261HOSE, WATER BY-PASS

main16261-28020i2AZFE..ACR30,40200002-200304

main16261-28050i2AZFE..ACR30,40200304-200601

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main96135-41300i2AZFE..ACR30,40200002-200304

sub96135-51300

main96135-51300i2AZFE..ACR30,40200304-200601

16264HOSE, WATER BY-PASS, NO.2

main16264-28020i2AZFE..ACR30,40200002-200304

main16264-28060i2AZFE..ACR30,40200304-200601

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main96135-41300i2AZFE..ACR30,40200002-200304

sub96135-51300

main96135-51300i2AZFE..ACR30,40200304-200601

16268PIPE, WATER BY-PASS, NO.1

main16268-28010i2AZFE..ACR30,40200002-200601

16321INLET, WATER

main16321-20030i1MZFE..MCR30,40199912-200304

main16321-28010i2AZFE..ACR30,40200002-200601

16325GASKET, WATER INLET HOUSING, NO.1

main16325-28010i2AZFE..ACR30,40200308-200601

main16325-62010i2AZFE..ACR30,40199912-200307

16331OUTLET, WATER

main16331-20050i1MZFE..MCR30,40199912-200304

16331ATHERMOSTAT

main90916-03084i2AZFE..ACR30,40199912-200409

sub90916-03129

main90916-03129i1MZFE..MCR30,40200409-200510

main90916-03136i2AZFE..ACR30,40200510-200601

16361FAN

main16361-20060i1MZFE..MCR30,40199912-200201

main16361-20170i1MZFE..MCR30,40200201-200304

main16361-28020i2AZFE..ACR30,40200002-200408

sub16361-28021

main16361-28021i2AZFE..ACR30,40200408

16361BFAN, NO.2

main16361-20130i1MZFE..MCR30,40199912-200304

main16361-23040i2AZFE..ACR30,40200002-200201

sub16361-28100

main16361-28100i2AZFE..ACR30,40200201-200304

16363MOTOR, COOLING FAN

main16363-20150i1MZFE..MCR30,40199912-200102

MARK=16363-20150

main16363-20300i1MZFE..MCR30,40200304

main16363-28020i2AZFE..ACR30,40200002-200304

main16363-50060i1MZFE..MCR30,40200102-200304

MARK=16363-50060

sub16363-20300

16363AMOTOR, COOLING FAN, NO.2

main16363-20160i1MZFE..MCR30,40199912-200304

sub16363-20290

main16363-20290i1MZFE..MCR30,40200304

main16363-23020i2AZFE..ACR30,40200002-200303

main16363-28150i2AZFE..ACR30,40200304

16400RADIATOR ASSY

main16400-20170i1MZFE..MCR30,40199912-200601

main16400-28100i2AZFE..ACR30,40200002-200304

sub16400-28120

main16400-28410i2AZFE..ACR30,40200304-200601

sub16400-28431

16470TANK ASSY, RADIATOR RESERVE

main16470-20050i1MZFE..MCR30,40199912-200304

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16472-20050i1MZFE..MCR30,40199912-200304

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1MZFE..MCR30,40199912-200208

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i1MZFE..MCR30,40199912-200304

16471CAP SUB-ASSY, RESERVE TANK

main16405-20030i1MZFE..MCR30,40199912-200304

16472HOSE, BREATHER

main85338-74140i1MZFE..MCR30,40199912-200304

16523CUSHION, SUB-RADIATOR SUPPORT

main16523-74010i1MZFE..MCR30,40199912-200304

16533SUPPORT, RADIATOR, UPPER

main16533-20020i1MZFE..MCR30,40199912-200007

sub16533-20021

main16533-20021i2AZFE..ACR30,40200007-200304

16535SUPPORT, RADIATOR, LOWER

main16535-20010i1MZFE..MCR30,40199912-200304

main16535-74210i2AZFE..ACR30,40200002-200304

16571HOSE, RADIATOR, INLET

main16571-20040i1MZFE..MCR30,40199912-200304

main16571-28050i2AZFE..ACR30,40200002-200304

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37005i2AZFE..ACR30,40200204-200304

main90467-37008i1MZFE..MCR30,40199912-200204

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-20050i1MZFE..MCR30,40199912-200304

main16572-28020i2AZFE..ACR30,40200002-200305

sub16572-28200

main16572-28200i2AZFE..ACR30,40200305

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-37002i2AZFE..ACR30,40200302-200304

main90466-41001i1MZFE..MCR30,40199912-200204

sub90467-41002

main90466-41007i1MZFE..MCR30,40200210-200304

main90467-37005i2AZFE..ACR30,40200204-200302

main90467-37005i2AZFE..ACR30,40200204-200304

main90467-37008i1MZFE..MCR30,40199912-200204

sub90467-37005

main90467-37008i2AZFE..ACR30,40200002-200204

sub90467-37005

main90467-41002i1MZFE..MCR30,40200204-200209

sub90466-41008

16711SHROUD, FAN

main16711-20110i1MZFE..MCR30,40199912-200102

sub16711-20111

main16711-20111i1MZFE..MCR30,40200102-200304

main16711-28100i2AZFE..ACR30,40200002-200304

1709

3514

8401

8716

8857828290PAKING, COOLER AIR DUCT

main88578-28290

9009904117

main90099-04117

9009904119

main90099-04119

9009905164

main90099-05164

9011606127

main90116-06127

9012606012

main90126-06012

9046400558

main90464-00558

91621B0816

main91621-B0816

91631G0614

main91631-G0614

91651B0616

main91651-B0616

9415080640

main94150-80640

45 parts on this diagram · 6 diagrams in section
