VENTILATION HOSE

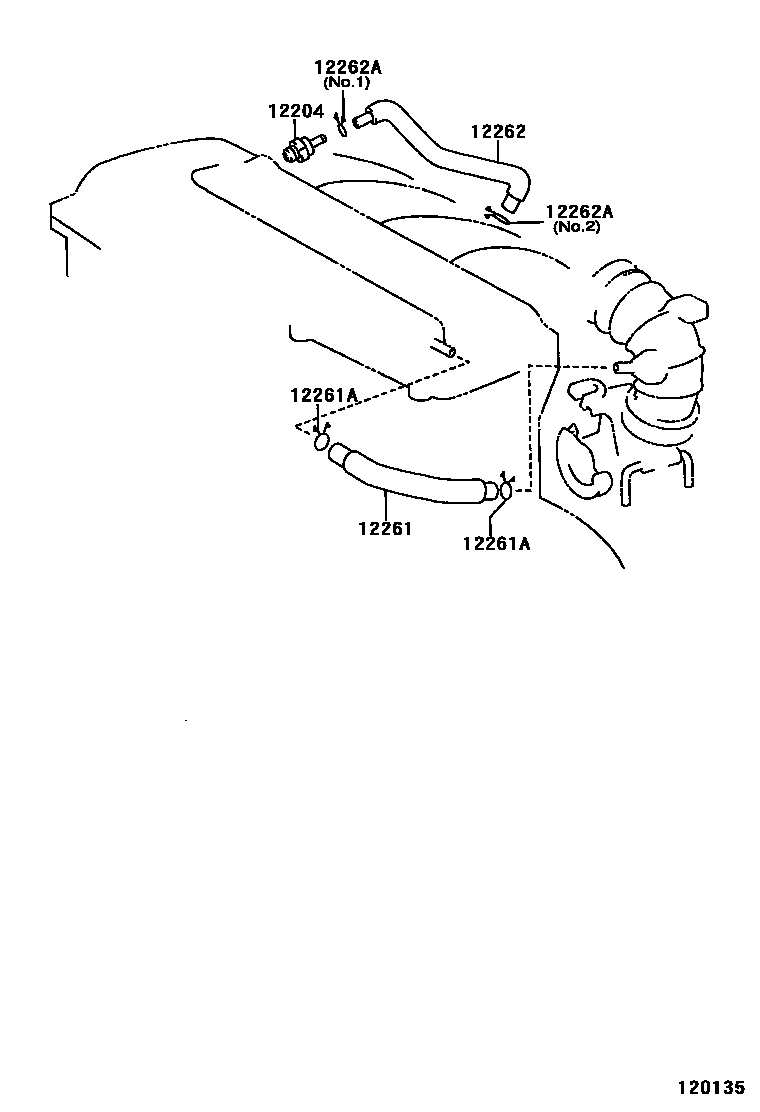

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-20010i199912-200101
main12204-20040i200101-200412
main12204-20060i200412-200501
main12204-28020i200002-200601
12261HOSE, VENTILATION
main12261-20011i199912-200304
main12261-20011i200304-200412
main12261-20090i200412-200509
sub12261-20091
main12261-20091i200509
main12261-28010i200002-200304
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90467-14017i199912-200304
main90467-19003i200002-200304
12262HOSE, VENTILATION, NO.2
main12262-20030i199912-200304
main12262-28020i200002-200104
sub12262-28021
main12262-28021i200104-200601
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90467-13103i200002-200601
main90467-16035i200002-200601
main90467-17011i199912-200304
sub96134-51700
main96134-41900i199912-200304
main96134-51700i200304

5 parts on this diagram · 2 diagrams in section
