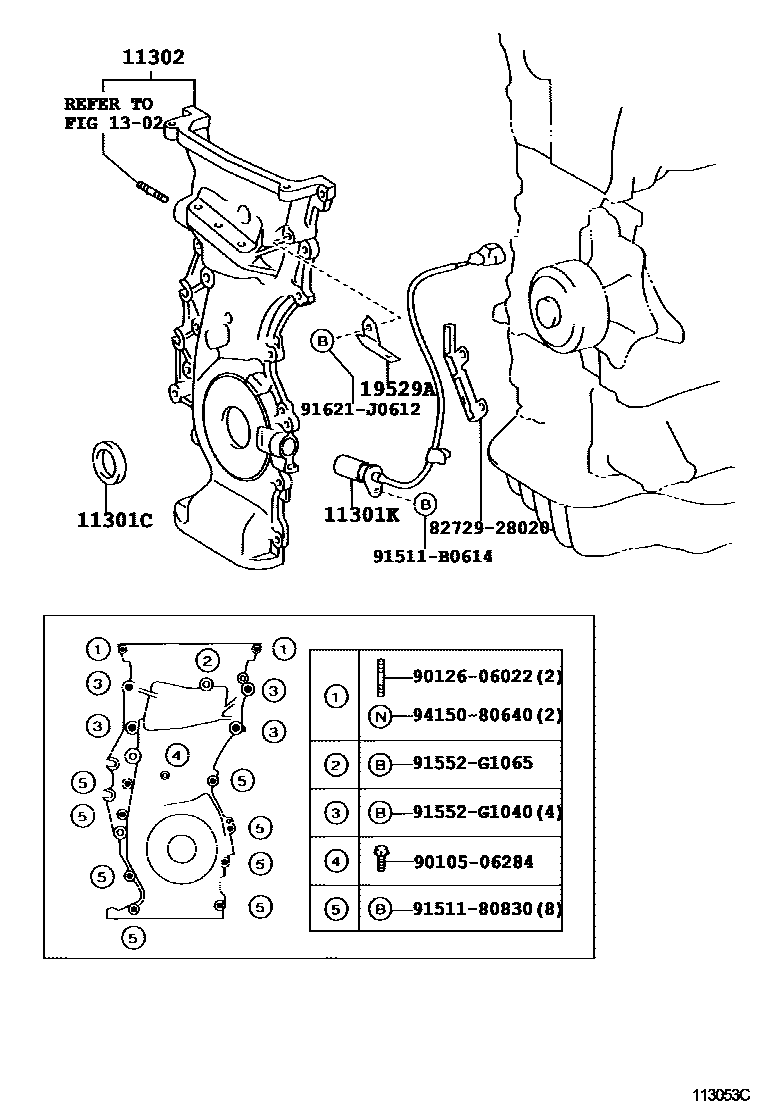

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-38078i2AZFE..ACR30,40200002-200211

sub90311-38089

main90311-38084i2AZFE..ACR30,40200301-200303

main90311-38084i2AZFE..ACR30,40200212-200301

main90311-38088i2AZFE..ACR30,40200212-200301

sub90311-38084

main90311-38089i2AZFE..ACR30,40200304-200601

11301KSENSOR, CRANK POSITION

main90919-05047i2AZFE..ACR30,40200002-200601

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-28070i2AZFE..ACR30,40200011-200508

main11310-28071i2AZFE..ACR30,40200509-200601

main11321-28020i2AZFE..ACR30,40200002-200011

sub11310-28040

1302

19529ACLAMP

main19529-28010i2AZFE..ACR30,40200002-200601

8272928020

main82729-28020

9010506284

main90105-06284

9012606022

main90126-06022

9151180830

main91511-80830

91511B0614

main91511-B0614

91552G1040

main91552-G1040

91552G1065

main91552-G1065

91621J0612

main91621-J0612

9415080640

main94150-80640

14 parts on this diagram · 2 diagrams in section
