ENGINE OVERHAUL GASKET KIT

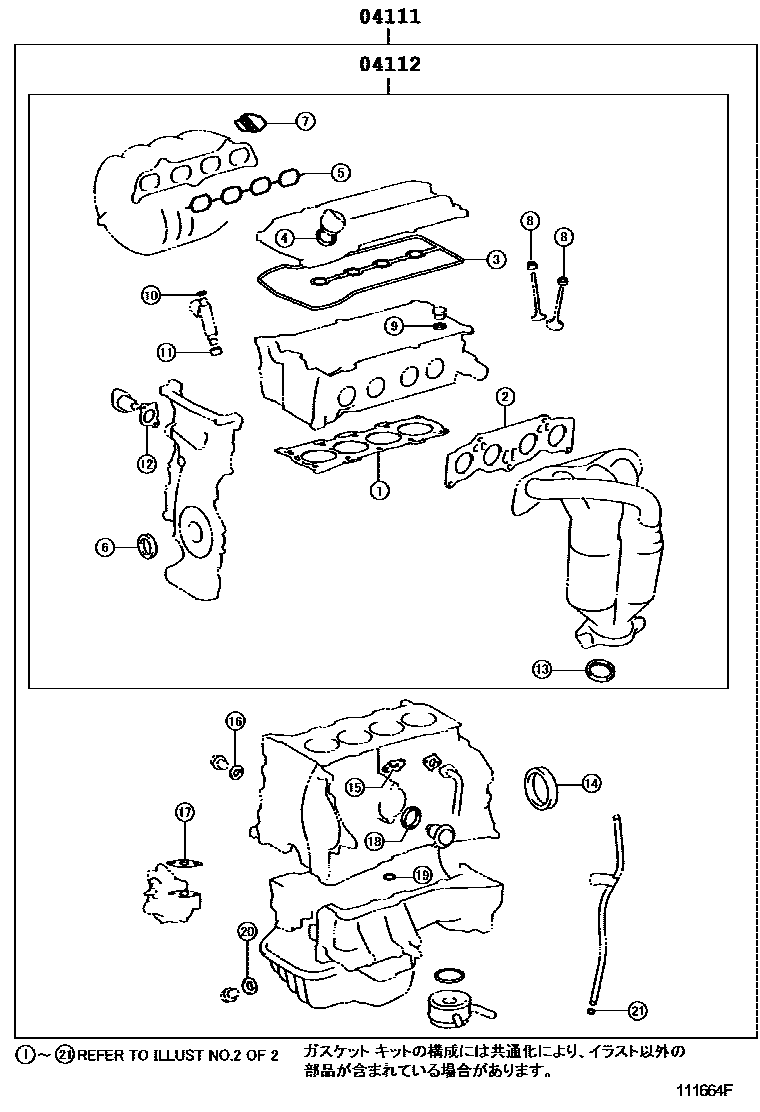

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-20120i200105-200304

main04111-20130i200104-200304

main04111-20161i200304-200404

main04111-20440i200404-200408

main04111-20441i200408

main04111-20450i200404-200408

main04111-20451i200408

main04111-28050i200002-200003

main04111-28051i200003-200009

main04111-28052i200009-200104

main04111-28053i200104-200211

main04111-28054i200211-200212

main04111-28055i200212-200304

main04111-28056i200304-200404

main04111-28510i200404-200508

main04111-28511i200508-200511

main04111-28512i200511-200601

04112GASKET KIT, ENGINE VALVE GRIND

main04112-20110i200105-200304

main04112-20120i199912-200104

main04112-20151i200304-200404

main04112-20400i200404-200408

main04112-20401i200408

main04112-28050i200002-200003

main04112-28051i200003-200009

main04112-28052i200009-200104

main04112-28053i200104-200211

main04112-28054i200211-200212

main04112-28055i200212-200304

main04112-28056i200304-200508

main04112-28057i200508-200511

main04112-28058i200511-200601

2 parts on this diagram · 4 diagrams in section
