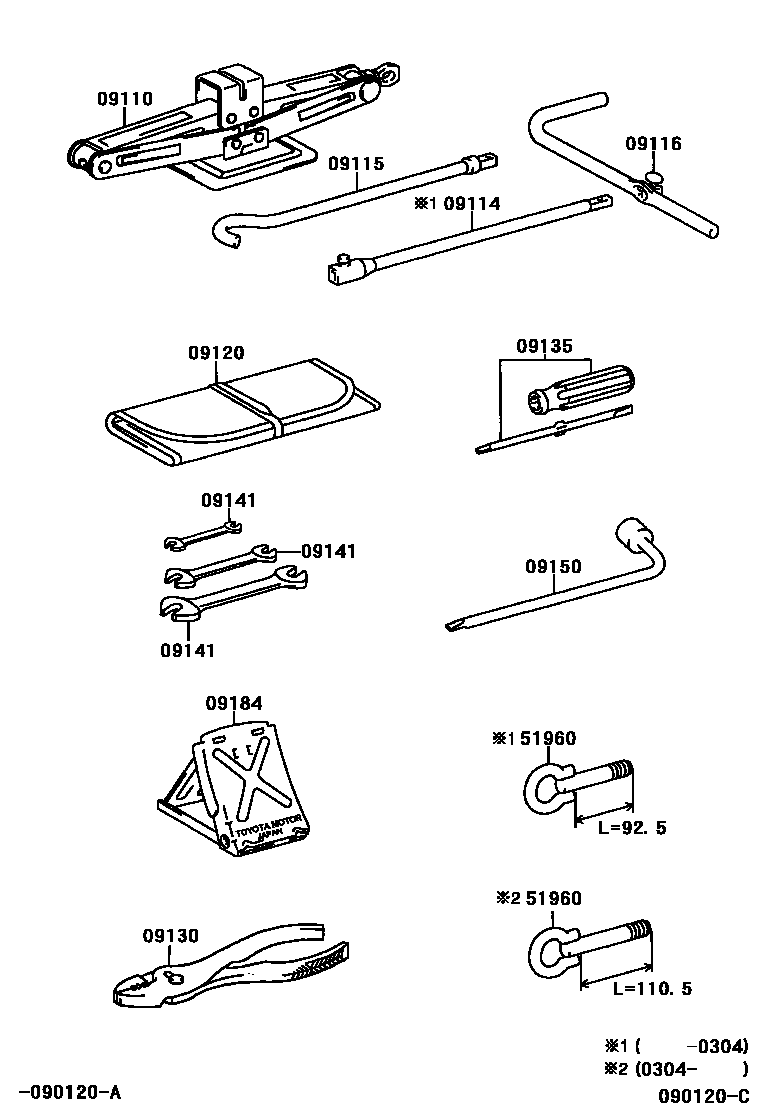

STANDARD TOOL

09110JACK ASSY

main09110-28120iACR30,40,MCR30,40199912-200304

main09110-28121iACR30,40,MCR30,40200501-200601

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60070iACR30,40,MCR30,40199912-200304

09115ROD SUB-ASSY, JACK HANDLE

main09115-28030iACR30,40,MCR30,40199912-200304

09116LEVER, JACK HANDLE

main09116-60010iACR30,40,MCR30,40199912-200304

09120BAG, TOOL

main09120-12011iACR30,40,MCR30,40199912-200304

09130PLIERS

main99913-11500iACR30,40,MCR30,40199912-200304

09135DRIVER, SCREW

main99915-10700iACR30,40,MCR30,40199912-200304

09141SPANNER

main99914-10810iACR30,40,MCR30,40199912-200304

main99914-11214iACR30,40,MCR30,40199912-200304

mainC649422010iACR30,MCR30..08S200304

09150WRENCH, HUB NUT BOX

main09150-40010iACR30,40,MCR30,40199912-200304

09184STOPPER, WHEEL

main09184-00010iACR30,40,MCR30,40199912-200304

51960HOOK ASSY, FRONT

main51960-28010×2iACR30,40,MCR30,40199912-200304

main51960-28020×2iACR30,40,MCR30,40200304

11 parts on this diagram · 1 diagram in section
