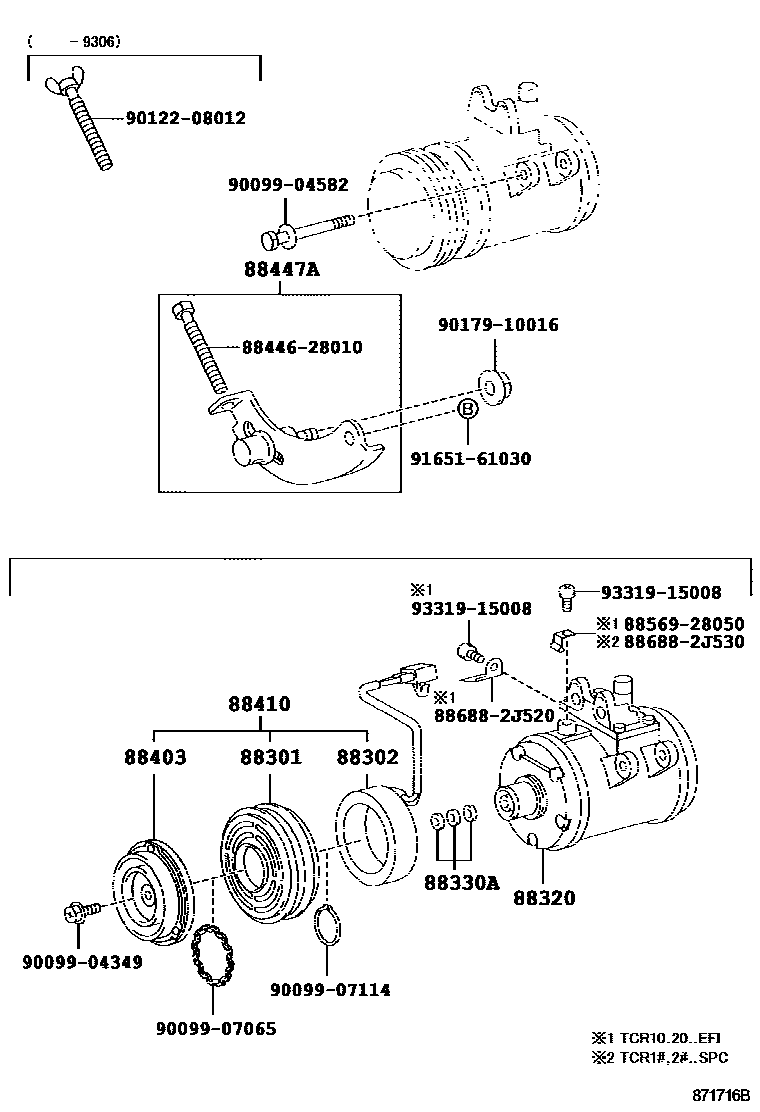

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-14130iTCR1#,2#..EFI199005-199801

main88412-28050iTCR1#,2#..SPC199408-199912

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-28020iTCR1#,2#..SPC199408-199912

main88411-95D01iTCR1#,2#..EFI199005-199801

88320COMPRESSOR ASSY, COOLER

main88320-28160iTCR1#,2#199104-199308

main88320-28200iTCR1#,2#..EFI199308-199801

main88320-28210iTCR1#,2#..SPC199408-199912

main88320-95D00iTCR11,21199005-199104

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iTCR1#,2#199005-199912

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iTCR1#,2#199005-199308

main88403-30290iTCR1#,2#199308-199912

88410CLUTCH ASSY, MAGNET

main88410-28100iTCR1#,2#..EFI199308-199801

main88410-28110iTCR1#,2#..SPC199408-199912

main88410-95D00iTCR1#,2#199005-199308

88447APLATE, BELT ADJUST

main88447-95D00iTCR1#,2#..EFI199005-199801

8844628010BOLT, IDLE PULLEY

main88446-28010

8856928050CLAMP (FOR COOLER RELAY)

main88569-28050

886882J520BRACKET, COOLER DIAPHRAGM

main88688-2J520

886882J530BRACKET, COOLER DIAPHRAGM

main88688-2J530

9009904349

main90099-04349

9009904582

main90099-04582

9009907065

main90099-07065

9009907114

main90099-07114

9012208012

main90122-08012

9017910016

main90179-10016

9165161030

main91651-61030

9331915008

main93319-15008

19 parts on this diagram · 2 diagrams in section
