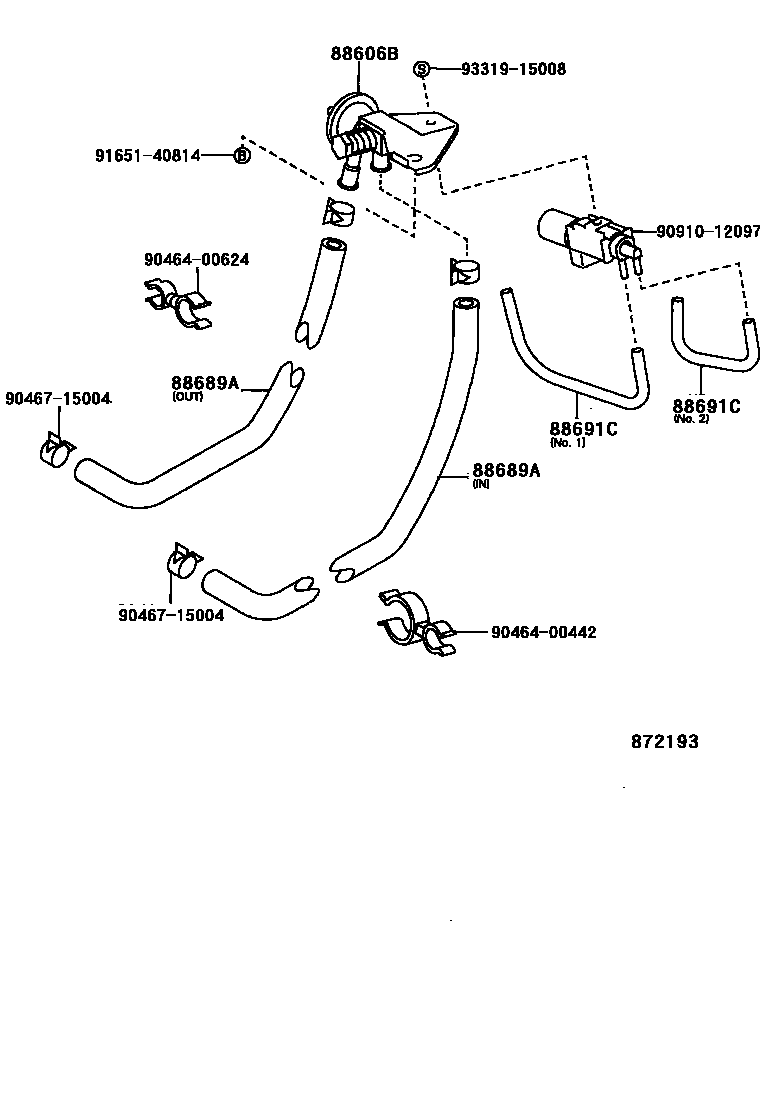

HEATING & AIR CONDITIONING - VACUUM PIPING

88606BDIAPHRAGM SUB-ASSY, COOLER

main88606-28020iTCR11,21199005-199108

main88606-28030iTCR1#,2#..EFI199108-199608

88689AHOSE, COOLER VACUUM NO.1

main88689-28010iTCR1#,2#..EFI199005-199608

IN

main88689-28020iTCR11,21199005-199201

OUT

main88689-28030iTCR1#,2#..EFI199201-199608

OUT

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main90999-92002iTCR11,21199005-199108

9046400442

main90464-00442

9046400624

main90464-00624

9046715004

main90467-15004

9091012097

main90910-12097

9165140814

main91651-40814

9331915008

main93319-15008

9 parts on this diagram · 1 diagram in section
