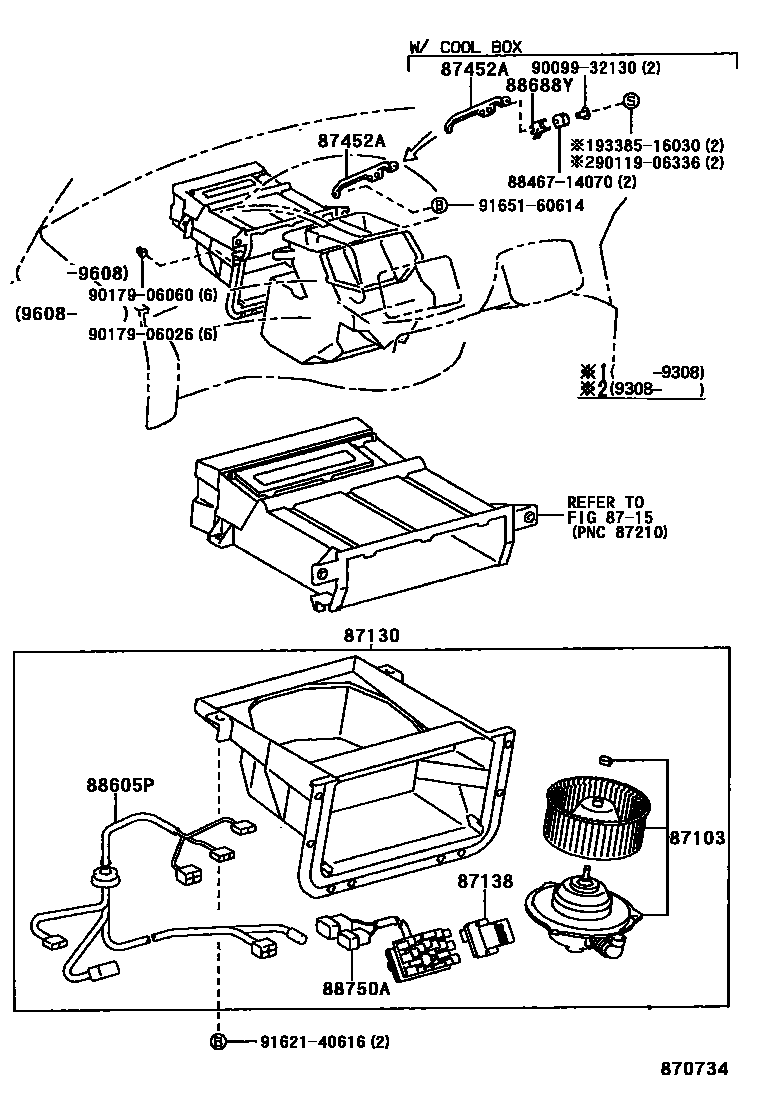

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1FRONT 0002 1REAR

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-28030iTCR1#,2#199308-199912

main87103-95D00iTCR1#,2#199005-199308

87130BLOWER ASSY, HEATER, FRONT

main87130-28100iTCR11,21199005-199108

main87130-28240iTCR11,21199108-199308

main87130-28260iTCR10,20199302-199308

main87130-28330iTCR11,21199308-199408

main87130-28350iTCR10,20..X199308-199801

main87130-28440iTCR1#,2#..SPC199408-199912

87138RESISTOR, HEATER BLOWER

main87138-28010iTCR1#,2#..AERAS,G,STD,V199005-199912

main87138-95D00iTCR10,20..X199302-199801

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87452ABRACKET, HEATER, FRONT

main87452-28020iTCR1#,2#199005-199308

main87452-28070iTCR1#,2#199308-199912

main87452-28100iTCR1#,2#199308-199912

main87452-95D00iTCR1#,2#199005-199308

88605PHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-28690iTCR11,21199108-199308

main88605-28710iTCR10,20199302-199308

main88605-2J240iTCR11,21199308-199408

main88605-2J260iTCR10,20..X199308-199801

main88605-2J470iTCR1#,2#..SPC199408-199912

main88605-95D27iTCR11,21199005-199108

88688YBRACKET, COOLER STABILIZER AMPLIFIER

main88688-28121iTCR1#,2#199005-199308

main88688-2J010iTCR1#,2#199308-199612

main88688-2J480iTCR1#,2#199612-199912

88750ATRANSISTOR ASSY, BLOWER RESISTOR

main88750-28020iTCR1#,2#..AERAS,G,STD,V199112-199912

main88750-95D00iTCR11,21199005-199112

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

9009932130

main90099-32130

9011906336

main90119-06336

9017906026

main90179-06026

9017906060

main90179-06060

9162140616

main91621-40616

9165160614

main91651-60614

9338516030

main93385-16030

16 parts on this diagram · 2 diagrams in section
