TELEPHONE & MAYDAY

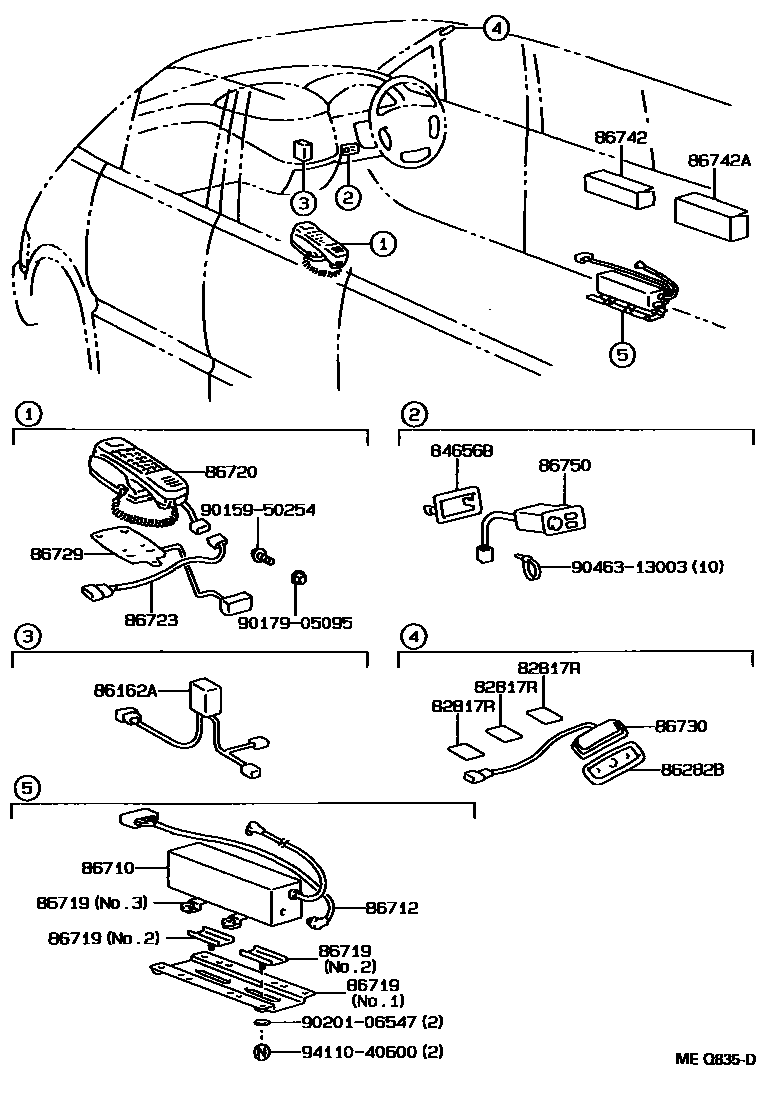

Parts diagram

82817RPROTECTOR, WIRING HARNESS, NO.16

main82817-12400×3i199308-199408

84656BBEZEL, SWITCH

main84656-17010i199005-199308

86162ARELAY, SPEAKER

main86162-22010i199005-199308

86282BBRACKET, MICROPHONE

main86282-14010i199005-199308

86710COMPUTER ASSY, TELEPHONE

main86710-17010i199005-199308

86712WIRE, TELEPHONE

main86712-22021i199005-199308

main86712-30050i199308-199408

main86712-50040i199308-199408

86719BRACKET, TELEPHONE

main86719-14010i199005-199408

main86719-14020×2i199005-199408

main86719-22010i199005-199308

main86719-22020×2i199005-199308

86720MOBILEPHONE ASSY

main86720-30051i199005-199205

main86720-30060i199308-199408

main86720-30080i199308-199408

MATUSHITA

86723WIRE, MOBILEPHONE

main86723-30010i199005-199205

main86723-30030i199005-199205

main86723-30050i199308-199408

main86723-50030i199308-199408

86729BRACKET, MOBILEPHONE

main86729-28010i199005-199408

86730MICROPHONE ASSY, TELEPHONE

main86730-17010i199005-199308

86742COVER, TRANSCEIVER

main86742-28010-03i199005-199308

LIGHT GRAY,TRIM1#

main86742-28010-05i199005-199308

LIGHT GREIGE,TRIM4#

main86742-28010-B0i199308-199408

GRAY,TRIM1#

main86742-28010-E0i199308-199408

GREIGE,TRIM4#

main86742-28030-B0i199302-199308

LIGHT GRAY,TRIM1#

main86742-28030-B1i199308-199408

GRAY,TRIM1#

86742ACOVER, TRANSCEIVER

main86742-28020-03i199005-199308

LIGHT GRAY,TRIM1#

main86742-28020-05i199005-199308

LIGHT GREIGE,TRIM4#

main86742-28020-B0i199308-199408

GRAY,TRIM1#

main86742-28020-E0i199308-199408

GREIGE,TRIM4#

main86742-28040-B0i199302-199408

LIGHT GRAY,TRIM1#

86750SWITCH ASSY, TELEPHONE

main86750-28010i199005-199308

9015950254

main90159-50254

9017905095

main90179-05095

9020106547

main90201-06547

9046313003

main90463-13003

9411040600

main94110-40600

19 parts on this diagram · 2 diagrams in section
