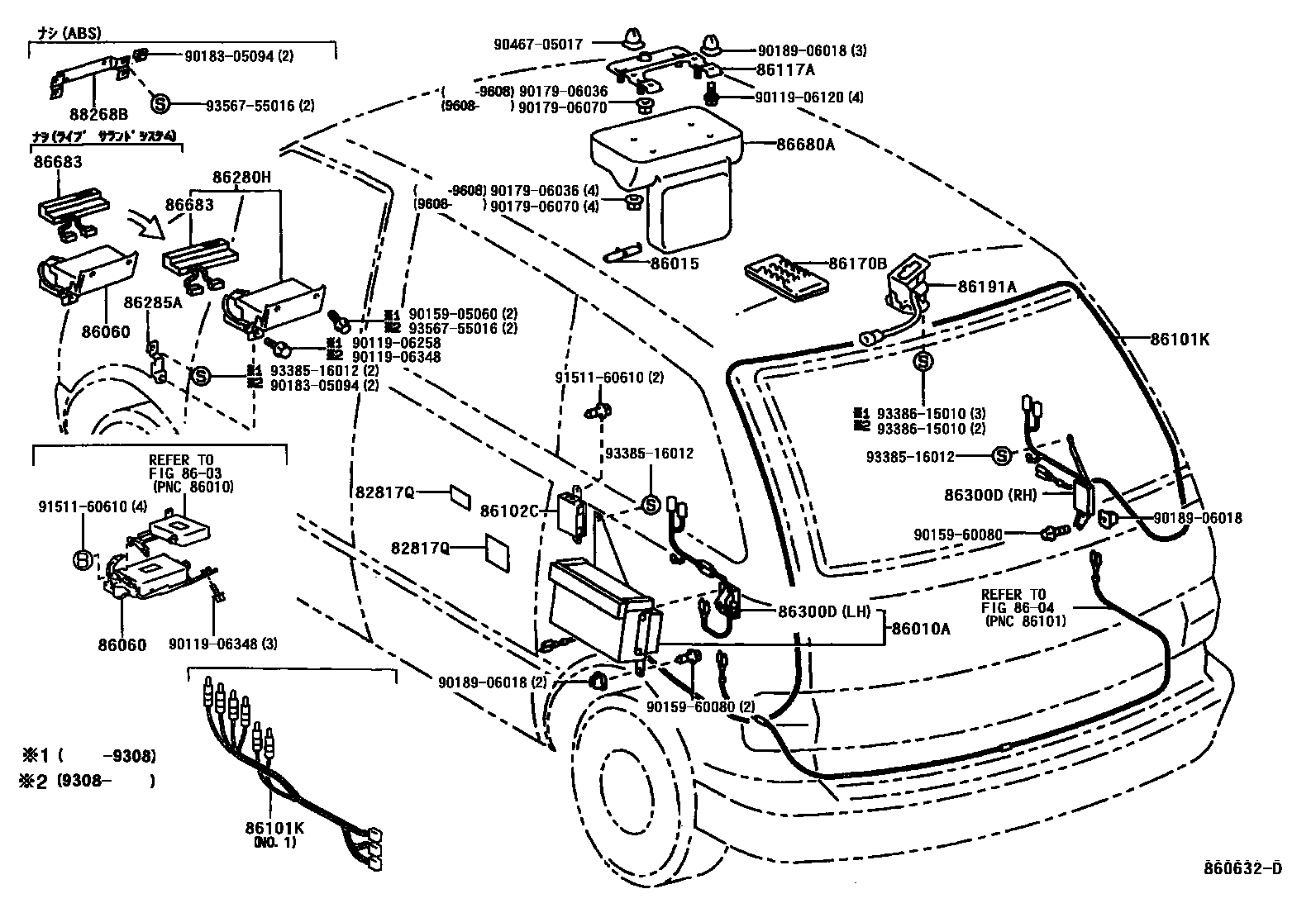

82817QPROTECTOR, WIRING HARNESS, NO.15

main82817-12400iTCR1#,2#199801-199912

main82817-95708iTCR11,21199005-199403

86010ATUNER ASSY, TELEVISION

main86010-28030iTCR1#,2#199108-199502

main86010-28031iTCR1#,2#199502-199801

main86010-28050iTCR1#,2#199801-199912

86015PARTS SET, TELEVISION

main86015-28010-B0×2iTCR1#,2#199108-199801

LIGHT GRAY,TRIM1#

main86015-28010-B1×2iTCR1#,2#199801-199912

LT.GRAY,TRIM1#

main86015-28010-E0×2iTCR11,21199108-199408

LIGHT GREIGE,TRIM4#

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

8604ANTENNA

→ Go to FIG 86-04

86060AMPLIFIER ASSY, TELEVISION

main86060-28020iTCR10,20199302-199608

main86060-28030iTCR10,20199608-199801

main86060-28040iTCR10,20199801-199912

86101KCORD SUB-ASSY, TELEVISION ANTENNA

main86101-28060iTCR11,21199108-199801

TV---DEALER OPT

main86101-28110iTCR10,20199302-199608

main86101-28280iTCR1#,2#199608-199801

main86101-28290iTCR10,20..AERAS199801-199912

main86101-28300iTCR10,20..AERAS199801-199912

main86101-28310iTCR10,20..AERAS199801-199912

main86101-28410iTCR10,20199801-199912

main86101-28420iTCR1#,2#..G,V; TCR10,20..AERAS199801-199912

86102CSELECTOR SUB-ASSY, ANTENNA

main86102-26010iTCR10,20..V199708-199712

86117ABRACKET, TELEVISION DISPLAY, A

main86117-28010iTCR1#,2#199108-199912

86170BSWITCH & VOLUME ASSY, TELEVISION

main86170-28030iTCR1#,2#199108-199801

main86170-28040iTCR1#,2#199801-199912

86191ATERMINAL, VIDEO(VIDEO ADAPTER)

main86191-28030iTCR1#,2#199108-199608

main86191-28040iTCR10,20..V199708-199712

86280HAMPLIFIER ASSY, STEREO COMPONENT

main86280-28170iTCR1#,2#199608-199801

main86280-28180iTCR1#,2#199801-199912

86285ABRACKET, AMPLIFIER, NO.2

main86285-28020iTCR10,20199308-199608

main86285-28030iTCR10,20199308-199608

main86285-28040iTCR1#,2#199108-199308

main86285-28080iTCR1#,2#199608-199912

86300DANTENNA ASSY, TELEVISION AMPLIFIER

main86300-28031iTCR11,21199005-199108

main86300-28040iTCR10,20..V,X; TCR11,21199608-199912

main86300-28061iTCR10,20199302-199608

main86300-28090iTCR11,21199308-199608

main86300-28140iTCR1#,2#199801-199912

86680ADISPLAY ASSY, TELEVISION

main86680-28010-B0iTCR1#,2#199108-199304

LIGHT GRAY,TRIM1#

main86680-28010-E0iTCR11,21199108-199304

LIGHT GREIGE,TRIM4#

main86680-28011-B0iTCR1#,2#199304-199502

LIGHT GRAY,TRIM1#

main86680-28011-E0iTCR11,21199304-199408

LIGHT GRAIGE,TRIM4#

main86680-28012-B0iTCR1#,2#199502-199801

LT.GRAY,TRIM1#

main86680-28020-B0iTCR1#,2#199801-199912

LT.GRAY,TRIM1#

86683RELAY, TELEVISION

main86683-28020iTCR1#,2#..G,V,X199608-199912

main86683-28030iTCR1#,2#199108-199608

main86683-28060iTCR1#,2#..G,V; TCR10,20..AERAS199801-199912

88268BBRACKET, TELEVISION

main88268-28060iTCR10,20199302-199608

9011906120

main90119-06120

9011906258

main90119-06258

9011906348

main90119-06348

9015905060

main90159-05060

9015960080

main90159-60080

9017906036

main90179-06036

9017906070

main90179-06070

9018305094

main90183-05094

9018906018

main90189-06018

9046705017

main90467-05017

9151160610

main91511-60610

9338516012

main93385-16012

9338615010

main93386-15010

9356755016

main93567-55016

31 parts on this diagram · 3 diagrams in section
