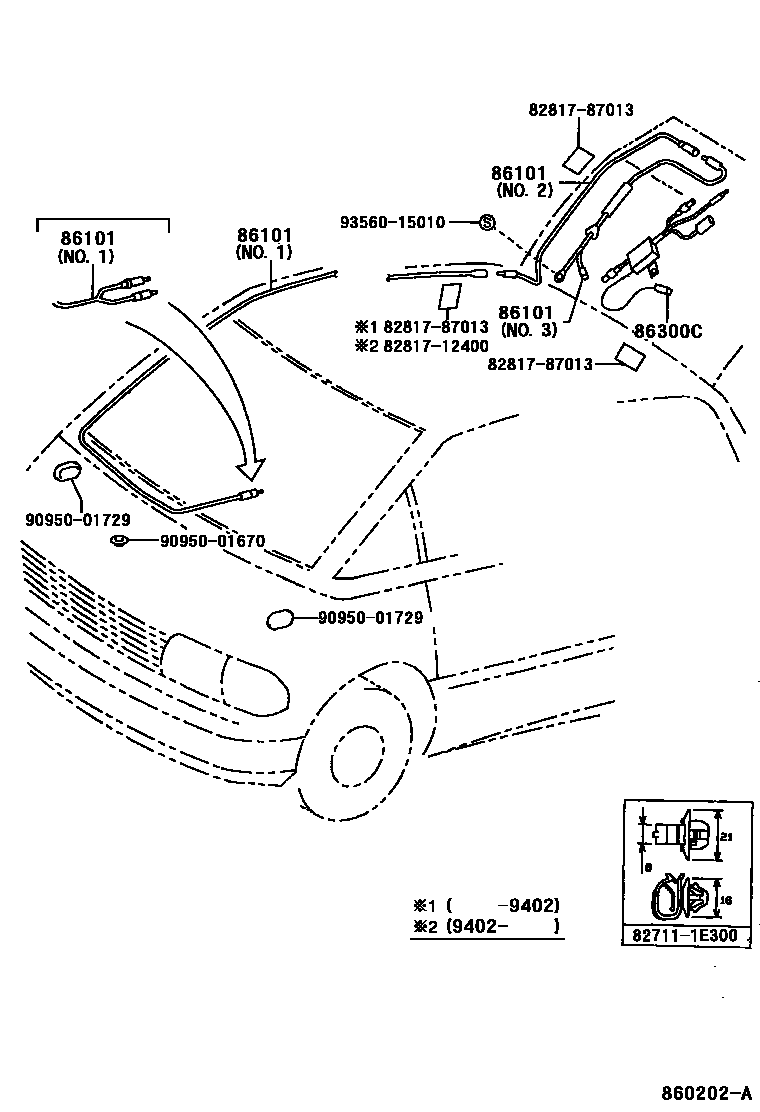

ANTENNA

0001 1������ ���� 0002 1���� ���� 0003 1���� ���� & ������ ���� 0004 1��(����)

86101CORD SUB-ASSY, ANTENNA

main86101-28010iTCR11,21199005-199308

main86101-28020iTCR10,20..V199708-199712

main86101-28070iTCR11,21199006-199308

main86101-28100iTCR10,20199608-199801

main86101-28190iTCR10,20..V,X199308-199912

main86101-28200iTCR11,21199308-199408

main86101-28201iTCR11,21199408-199508

main86101-28210iTCR11,21199308-199408

main86101-28211iTCR11,21199408-199508

main86101-28212iTCR11,21199804-199810

main86101-28213iTCR11,21199810-199912

main86101-28230iTCR11,21199508-199801

main86101-28240iTCR11,21199508-199801

main86101-28250iTCR11,21199608-199801

main86101-28270iTCR10,20199608-199801

main86101-28330iTCR10,20..AERAS199801-199810

main86101-28340iTCR10,20199608-199801

main86101-28350iTCR10,20..V,X199608-199810

main86101-28380iTCR10,20199801-199912

main86101-28390iTCR11,21199801-199804

main86101-28391iTCR11,21199804-199810

main86101-28392iTCR11,21199810-199912

main86101-28400iTCR10,20199801-199810

main86101-95D00iTCR10,20199302-199801

PILLAR ANTENNA

main86101-95D01iTCR10,20199302-199308

main86101-95D02iTCR10,20199302-199308

main86101-95D03iTCR1#,2#..AERAS,G,STD199308-199912

86300ANTENNA ASSY, W/HOLDER

main86300-95D00iTCR10,20199302-199912

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-28020iTCR11,21199005-199508

main86300-28021iTCR11,21199801-199810

main86300-28022iTCR11,21199810-199912

main86300-28080iTCR11,21199508-199801

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

8281712400PROTECTOR, WIRING HARNESS, NO.1

main82817-12400

8281787013PROTECTOR, WIRING HARNESS, NO.1

main82817-87013

9095001670

main90950-01670

9095001729

main90950-01729

9356015010

main93560-15010

9 parts on this diagram · 4 diagrams in section
