Toyota 652140 — WINDSHIELD WIPER

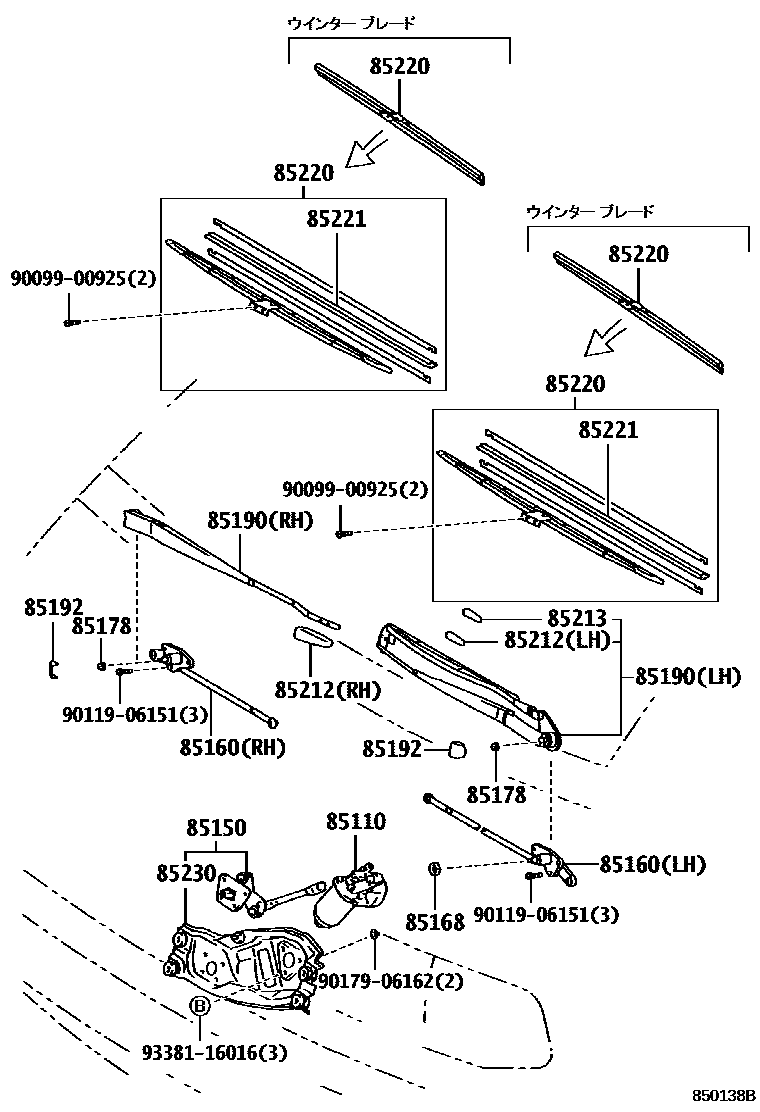

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

85150COVER, WINDSHIELD WIPER MOTOR GEAR END

85160LINK ASSY, WINDSHIELD WIPER

85168NUT, WINDSHIELD WIPER LINK PIVOT

85178NUT (FOR FRONT WIPER ARM SETTING)

85190ARM ASSY, WINDSHIELD WIPER

85192COVER, WINDSHIELD WIPER ARM

85212COVER, WIPER ARM PIECE, NO.1

85213COVER, WIPER ARM PIECE, NO.2

85220BLADE ASSY, WINDSHIELD WIPER

85221BLADE, WINDSHIELD WIPER

85230BRACKET ASSY, WINDSHIELD WIPER

9009900925

9011906151

9017906162

9338116016

16 parts on this diagram · 2 diagrams in section

WINDSHIELD WIPER for Toyota 652140

This section contains 22 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota 652140. Key components include: MOTOR ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER MOTOR GEAR END, LINK ASSY, WINDSHIELD WIPER, NUT, WINDSHIELD WIPER LINK PIVOT, NUT (FOR FRONT WIPER ARM SETTING).
